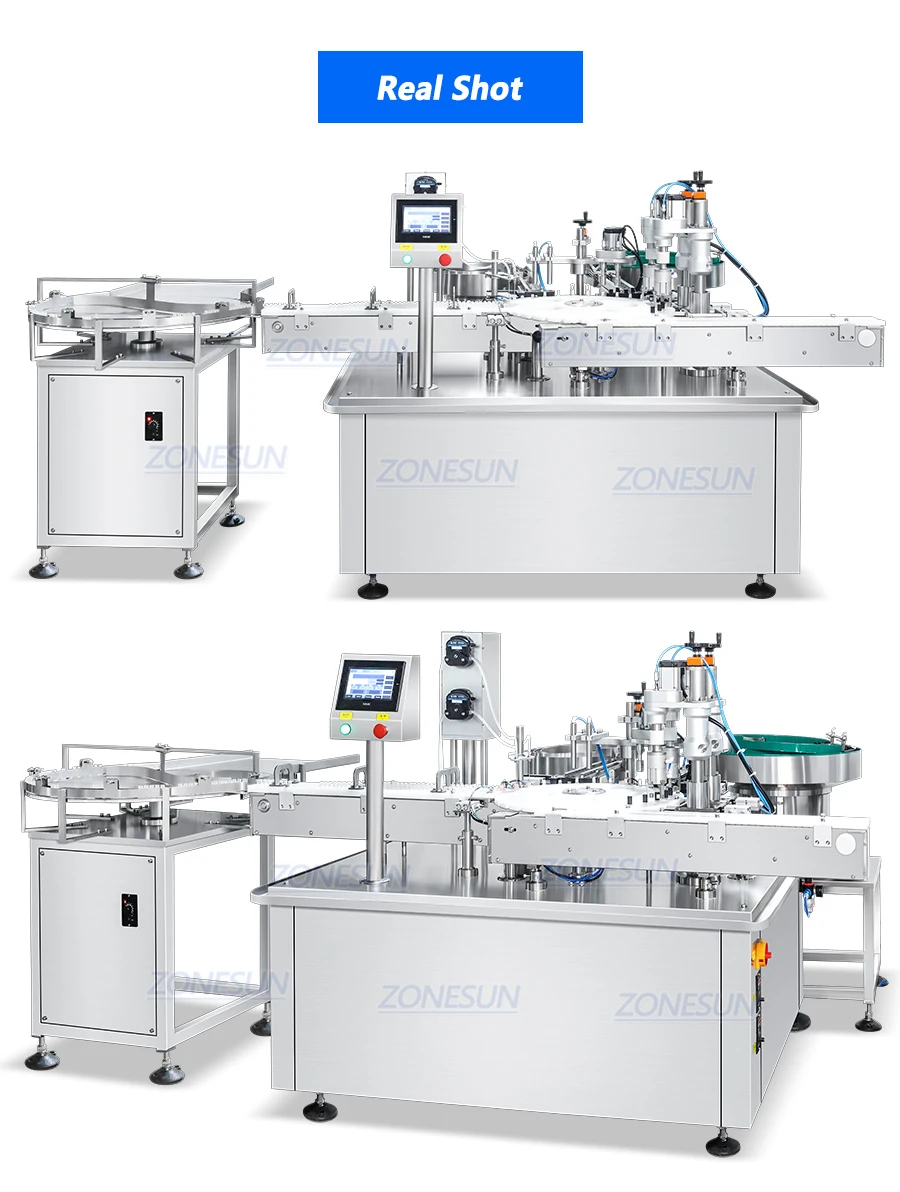

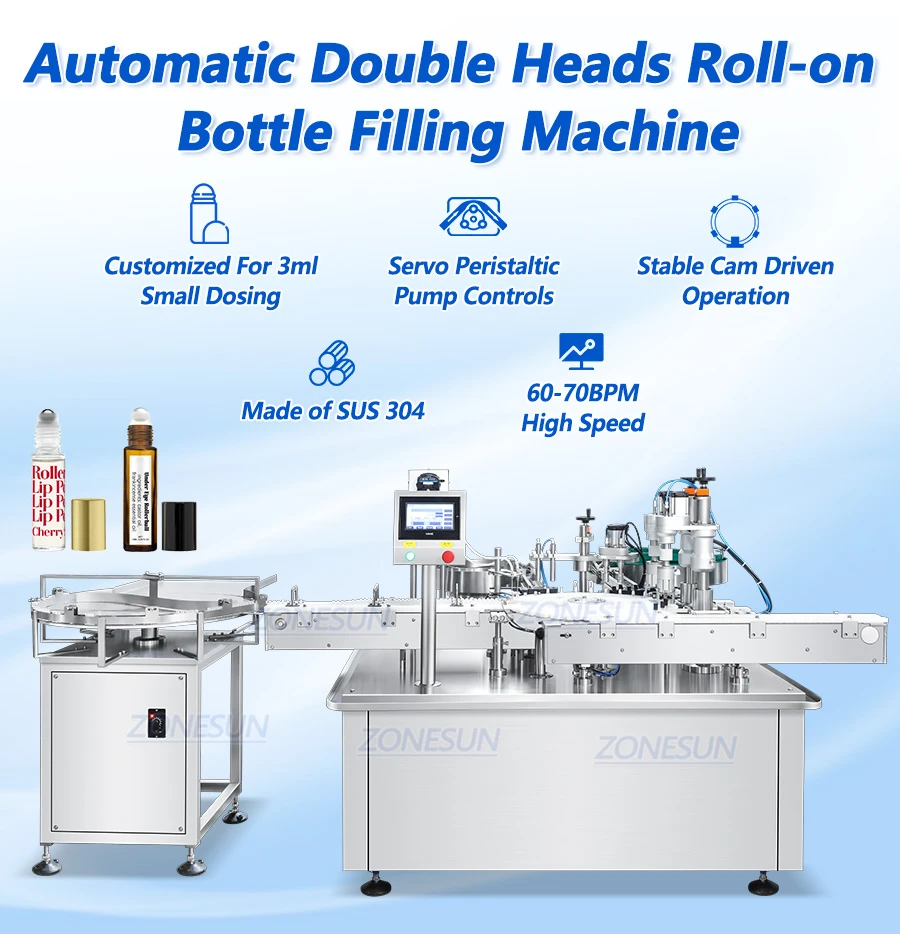

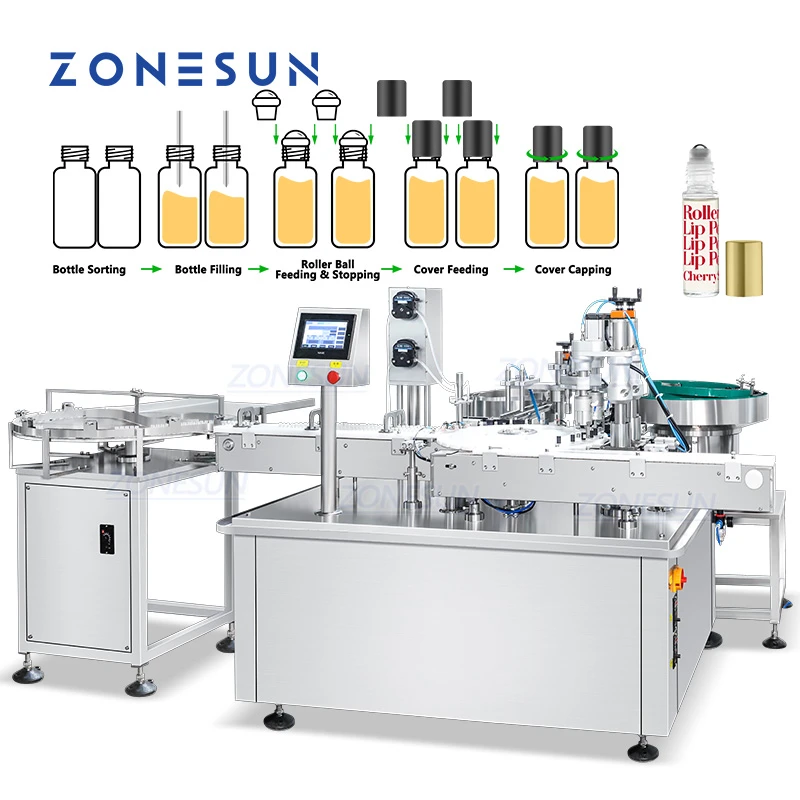

Essential Oil Roller Bottle Filling Capping Machine
Machine Characteristics:
·Dual-station Production Design: Coordinates filling and capping operations to increase throughput for small roller-ball containers.
·Peristaltic Pump Technology: Moves liquid through tubing, helping isolate the product from many pump components and simplifying liquid-path cleaning.
·Automatic Bottle Sorting: Organizes and feeds containers into the processing stations to reduce manual bottle placement.
·Automatic Ball Insert And Cap Placement: A vibratory bowl arranges the small closure components and supplies them for insertion into bottle openings.
·Consistent Small-volume Dosing: Designed for 3ml fills with a stated accuracy of ±1%.
Hot Tags: Essential Oil Roller Bottle Filling Capping Machine,Filling And Capping Machine
|
Machine Model |
ZS-AFC70 |
|
Power Supply |
220V / 50Hz / 5A |
|
Filling Volume |
3ml |
|
Filling Accuracy |
±1% |
|
Pump Type |
Peristaltic pump |
|
Number of Heads |
2 |
|
Container Type |
25# |
|
Production Capacity |
60–70 bottles/min |
|
Filling Nozzles |
SUS 304 |
|
Vibratory Bowl Sorter |
SUS 304 |
|

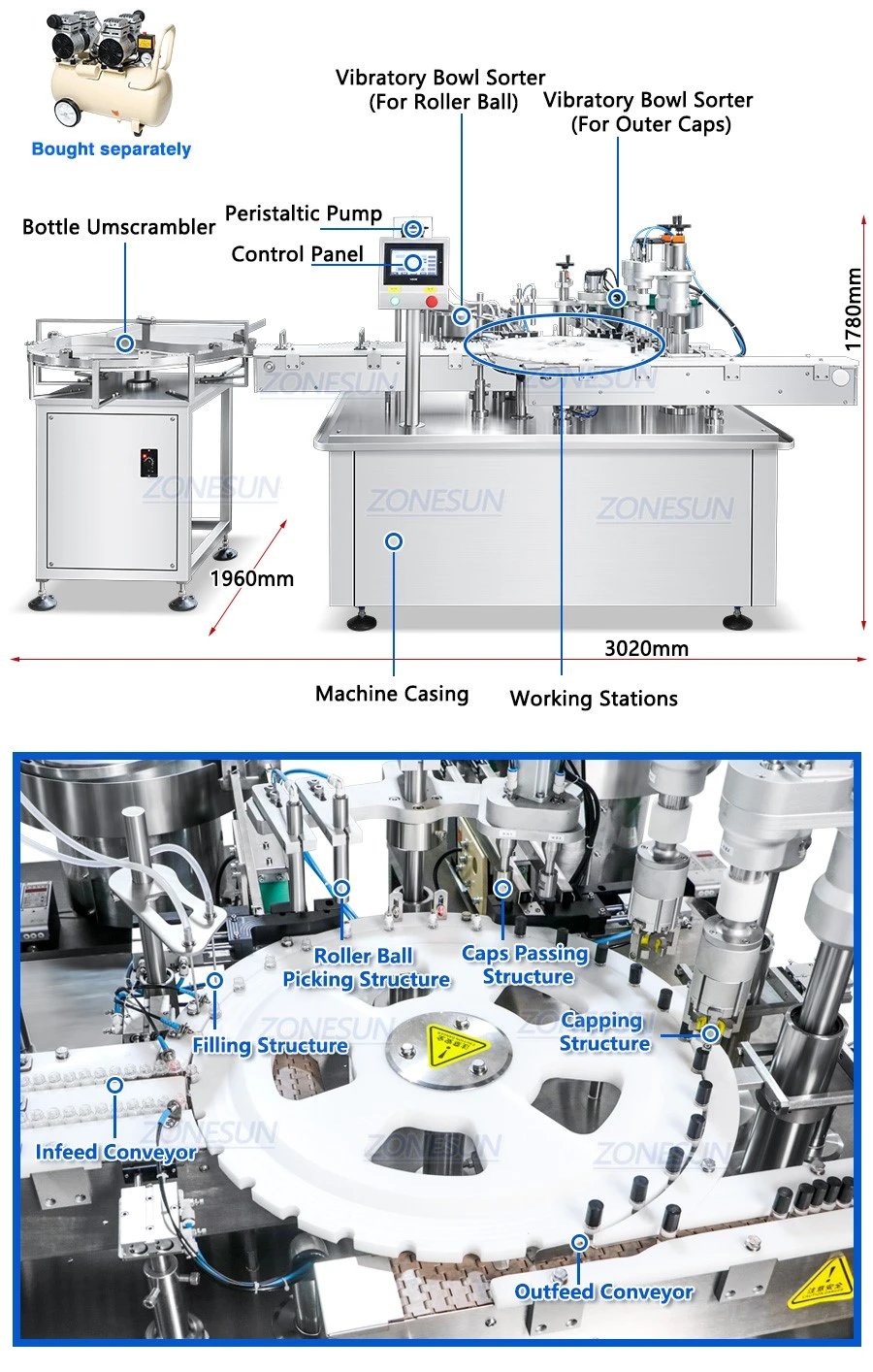

Machine Size |
About 3020*1960*1780mm(L*W*H) |
|
Machine Weight |
500 kg |
|
Package Size |
Main Machine: 2070*2030*1740mm(L*W*H) Bottle Unscrambler: 1320*990*1260mm(L*W*H) |
|
Package Weight |
1195kg+187kg=1382kg |
Details

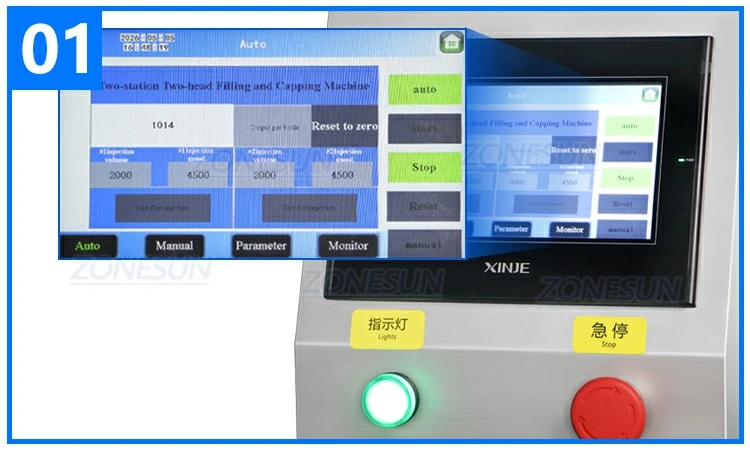

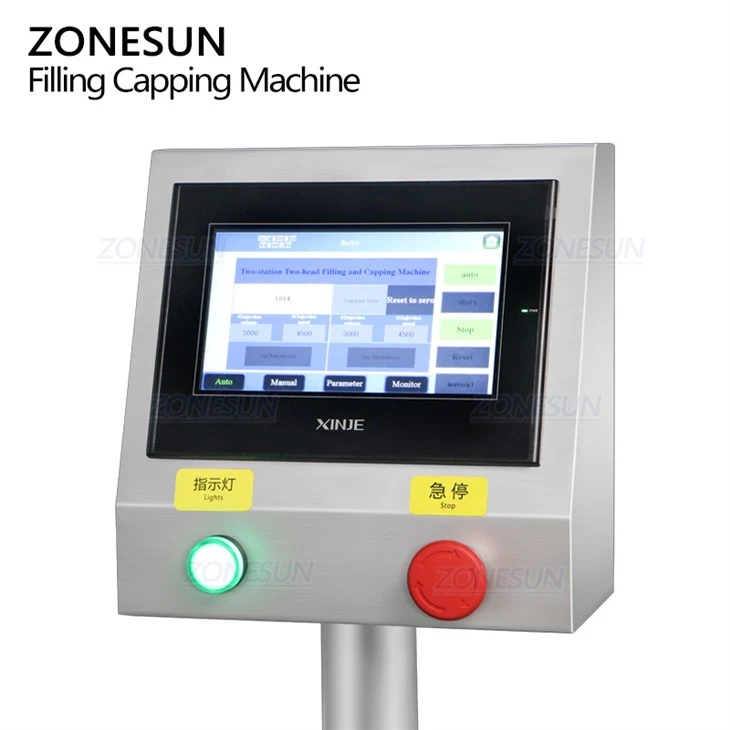

Intelligent HMI Interface
Equipped with a 7-inch or larger color touchscreen that allows operators to set filling volume, filling speed, production counts directly.

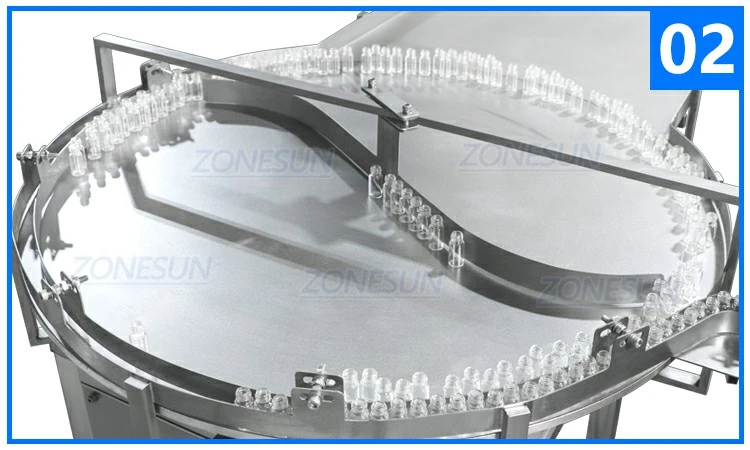

Bottle Unscrambling Structure
Automatically arranges roll-on bottles into an orderly flow and transfers them smoothly, reducing manual handling.

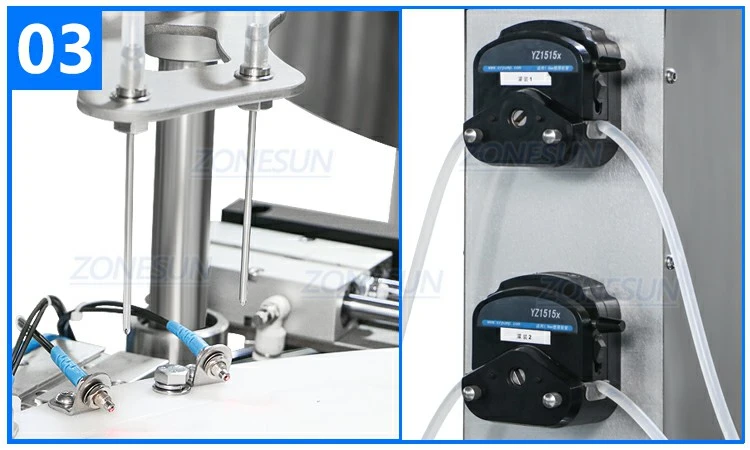

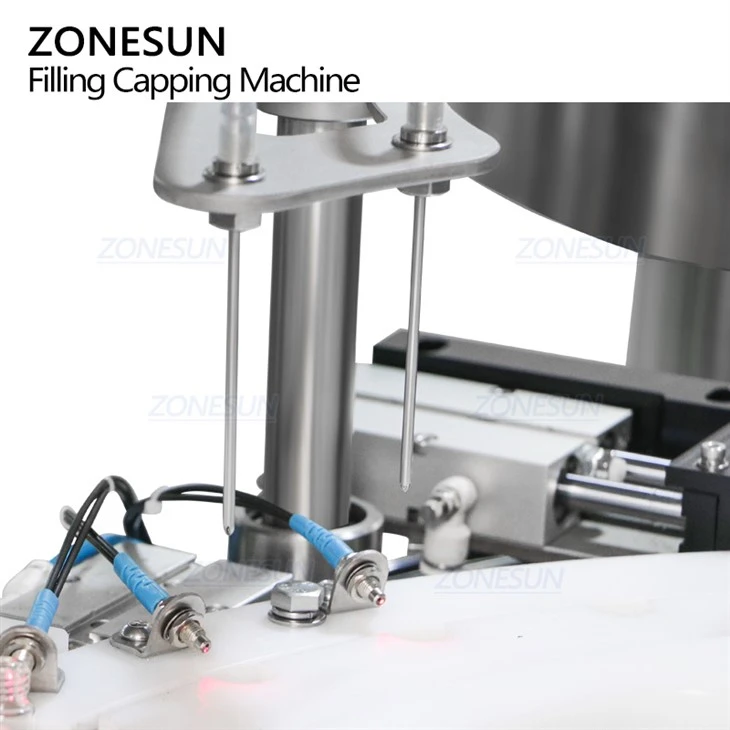

Servo Peristaltic Filling Structure
Servo-driven peristaltic pump delivers precise dosing while replaceable FDA-compliant tubing helps prevent cross-contamination.

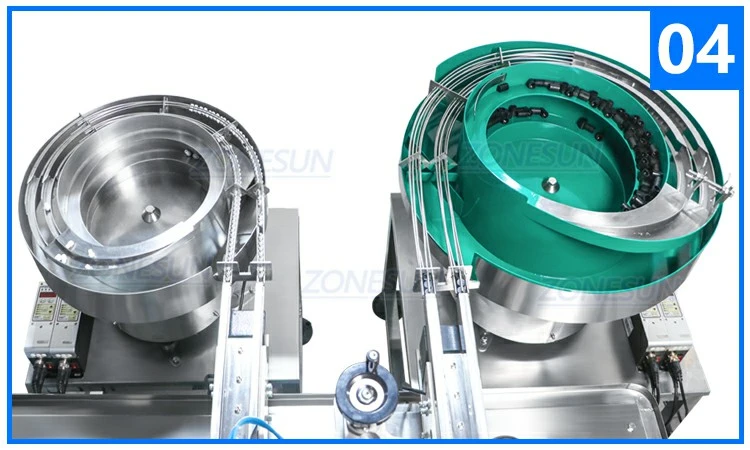

Vibratory Bowl Sorter
Provides continuous feeding of roll-on balls and outer caps, ensuring stable supply to downstream production stations.

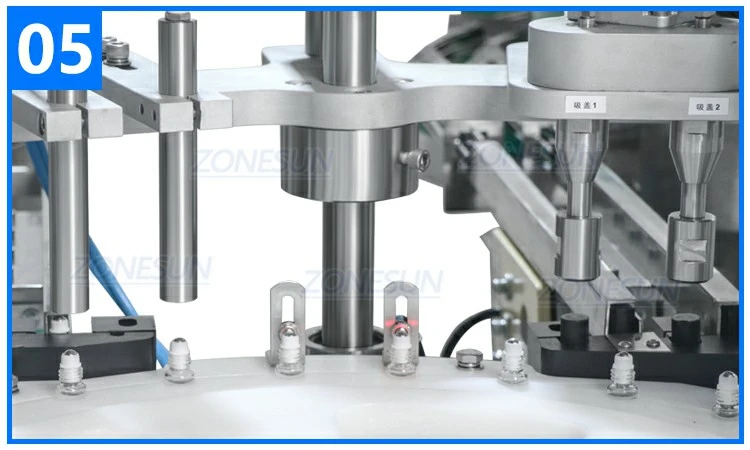

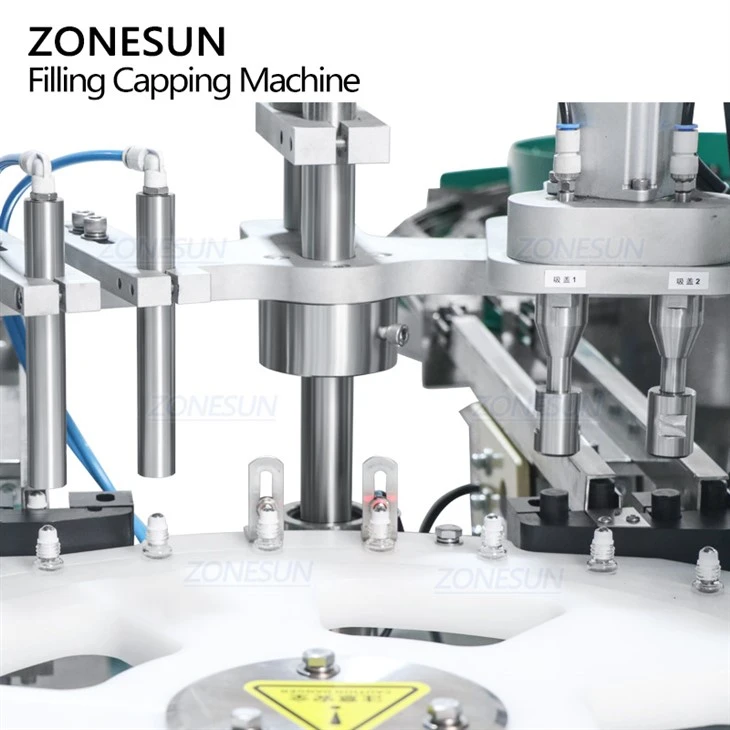

Picking Structure & Capping Structure
Swing-arm pick-and-place mechanism inserts roll-on balls before servo-controlled capping applies adjustable torque for consistent sealing quality.

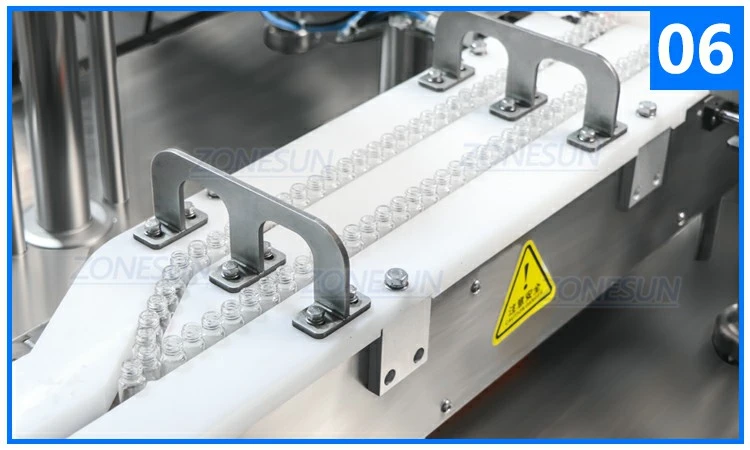

Dual-Rail Bottle Transfer System
Connected directly to bottle unscrambler, it is interchangable for different bottle sizes, good for multi-SKU production.

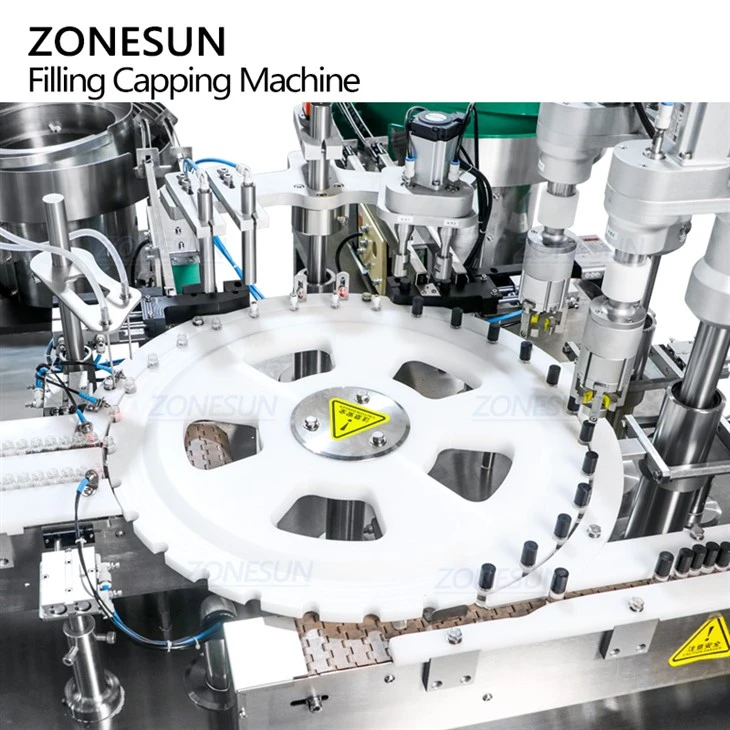

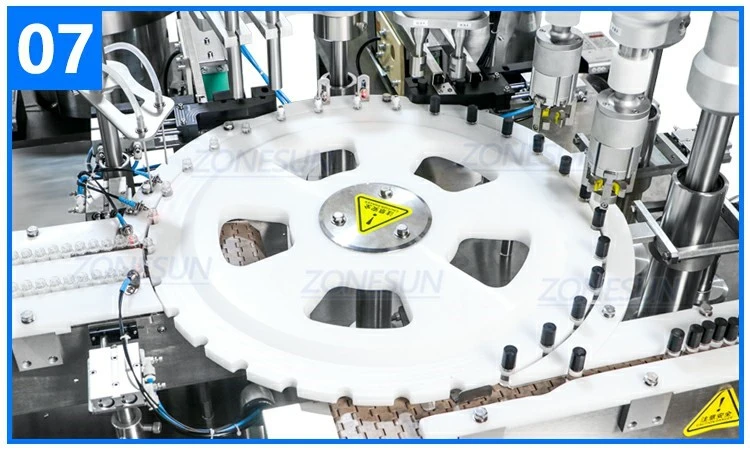

Cam Driven Structure
This synchronizes all working stations, delivering stable operation, high positioning accuracy.
