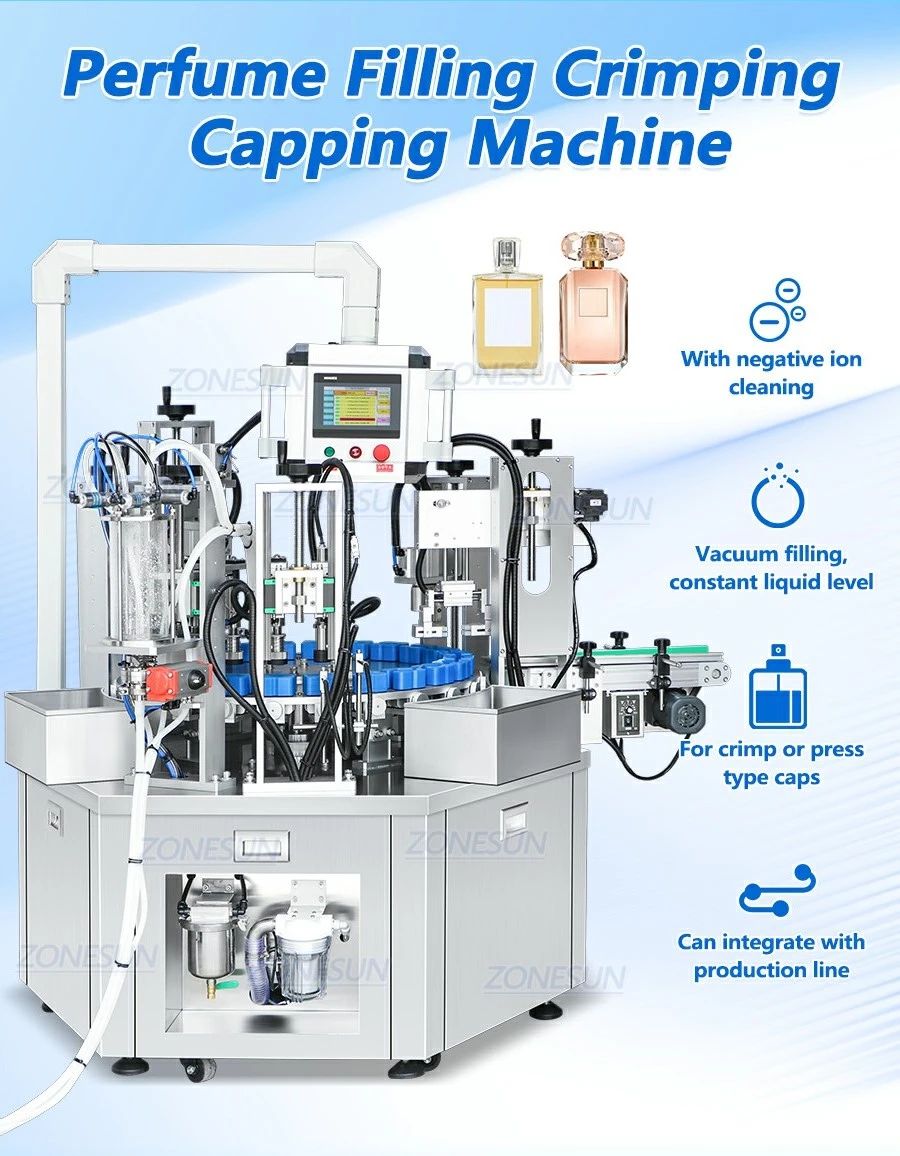

Perfume Bottle Rinsing Filling And Capping Machine
Key Features of the ZS-AFC42P Perfume Bottle Rinsing Filling And Capping Machine
·Monoblock Design - Integrates bottle rinsing, liquid filling, cap crimping, and cap pressing in one rotary system.
·Negative-ion Bottle Cleaning - cleans dust and particles from the inside of bottles before filling.
·Vacuum Filling System - Designed to maintain consistent liquid levels and reduce filling waste.
·Flexible Perfume-cap Handling - Supports cap positioning, crimping, and pneumatic pressing, with molds adaptable to different formats.
·Automatic Discharge - Finished bottles are transferred out mechanically, reducing manual handling.
·304 Stainless-steel Construction - provides a durable, cleanable machine body suitable for cosmetic and fragrance production.
Hot Tags: Perfume Bottle Rinsing Filling And Capping Machine,Filling And Capping Machine
|
Machine model |
ZS-AFC42P |
|
Power supply |
220V 50-60HZ 1.5kW |
|
Filling system |
Vacuum filling |
|
Working speed |
About 20-30BPM(depending on filling range) |
|
Filling range |
3-100ml(Customizable) |
|
Filling accuracy |
≤±1% |
|
Bottle diameter |
Φ12-65mm (Customizable) |
|
Cap size |
Customizable |
|
Air pressure |
0.5-0.8MPa |
|
Machine body |
304 stainless steel |
|
Machine size |
About 1770*1408*1900mm(L*W*H) |
|
Package size |
About 1900*1490*2030mm(L*W*H) |
|
Package weight |
About 712kg |
Details

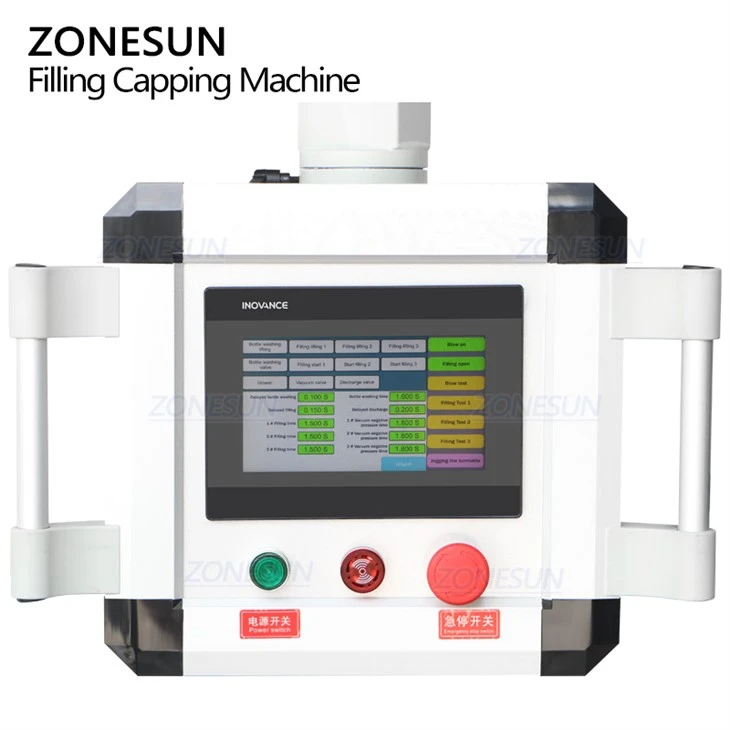

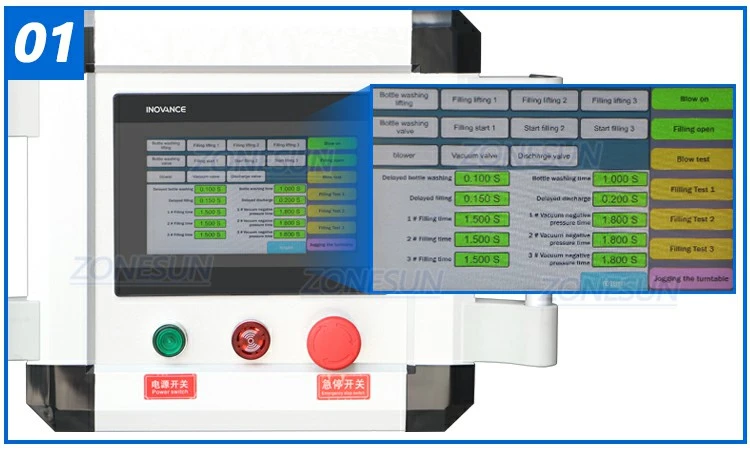

Touchscreen Operation
Allows operators to adjust production parameters and monitor the perfume production status.
Ion-based Cleaning Stage
A static-neutralizing air purge clears dust and particles from inside each bottle before filling process.

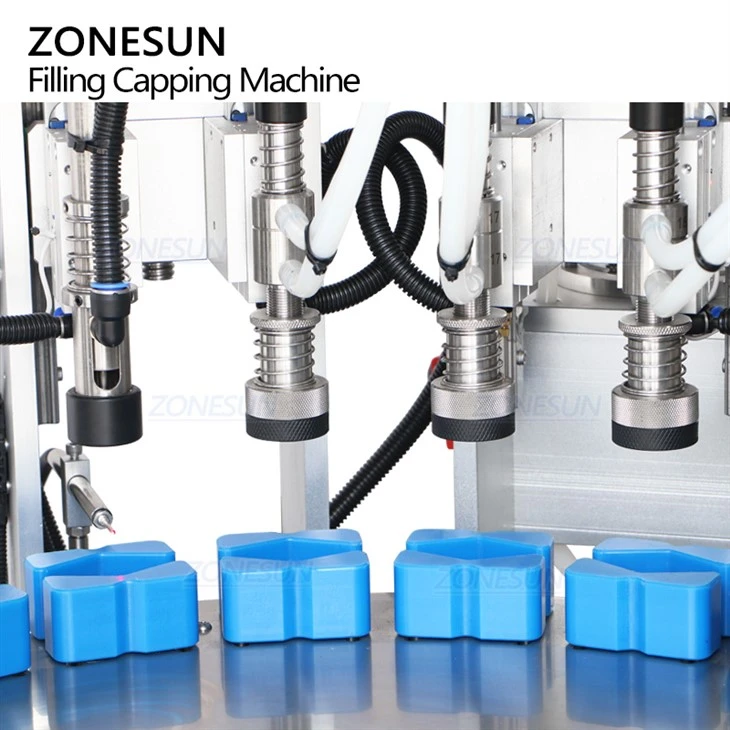

Vacuum Filling Technology
Fill levels are equalized by pulling back surplus liquid into the reservoir, so every perfume bottle looks identical on the shelf.

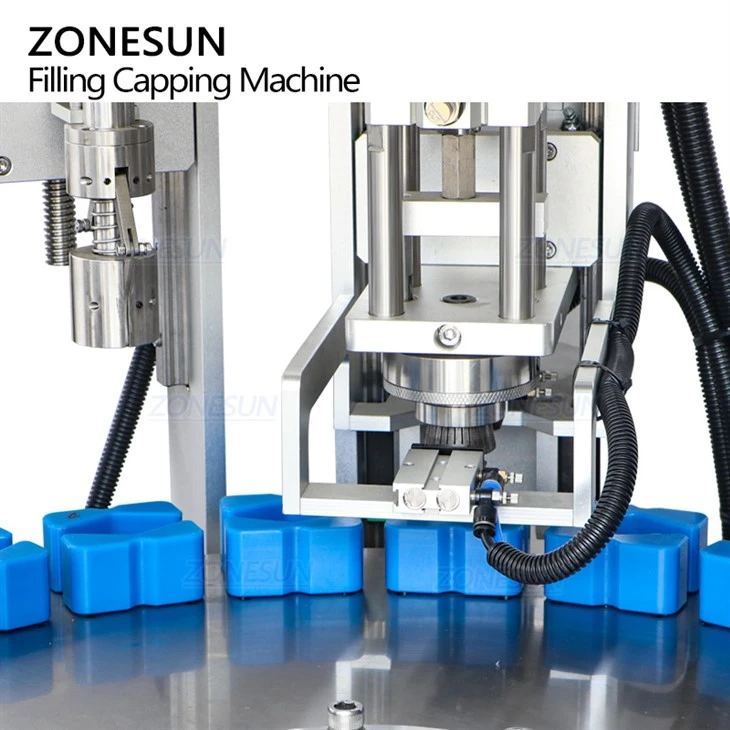

Cap Positioning & Crimping Structure
Handles crimp-on atomizer caps with molds swappable to fit different sizes of caps.

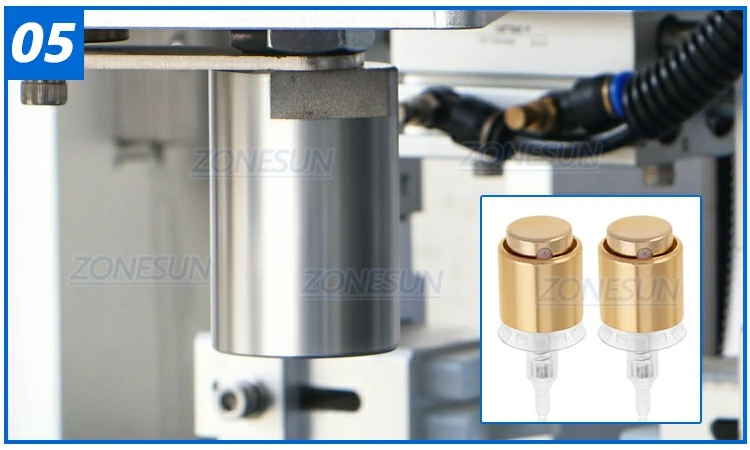

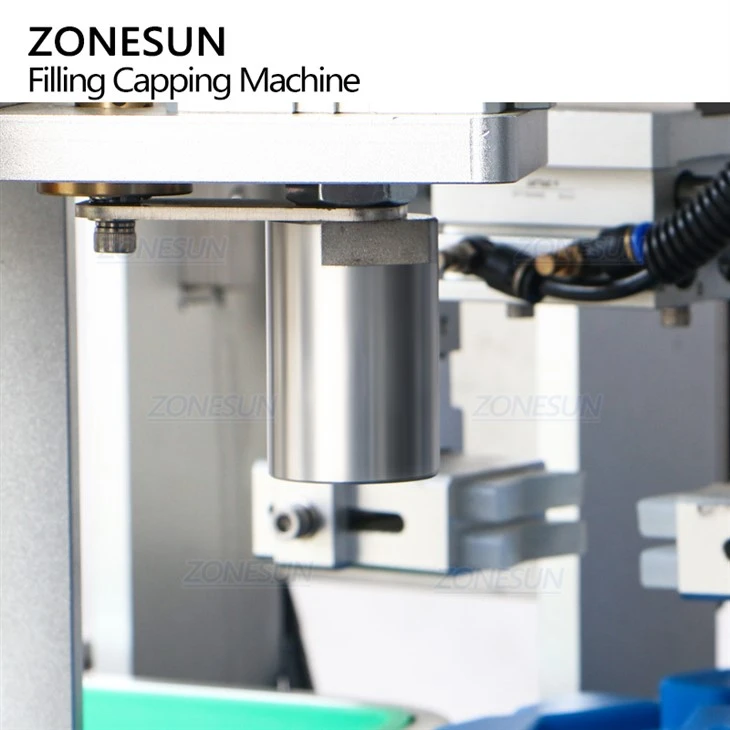

Cap Pressing Structure
Designed for handling press-fit caps or collars. The structure can be customized according to cap size.

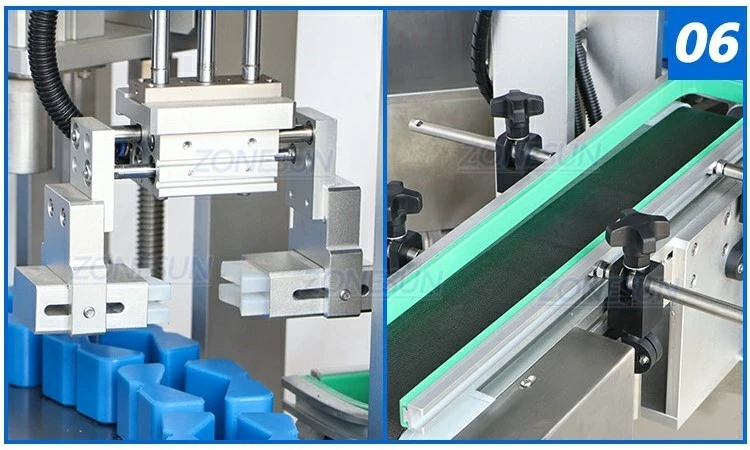

Product Discharge
The gripper arm can lift completed bottles onto the outfeed conveyor automatically.
