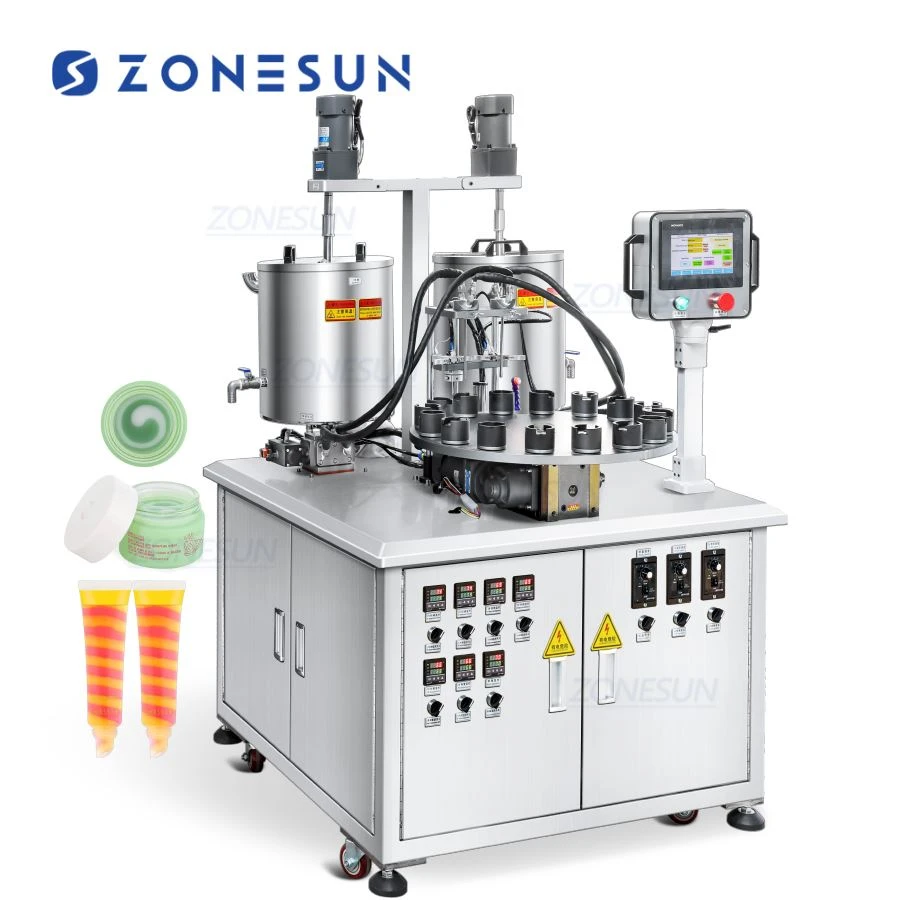

Spiral Lip Gloss Filling Machine
Machine Introductions:
This spiral lip gloss filling machine can heat, stir and fill materials into bottles. Equipped with servo-driven piston pumps, it can fill materials accurately, whose error is ±0.1ml. Its filling heads can move down and up during production, avoiding material splashing. The machine can be customized to suit for your production requirements.
Hot Tags: spiral lip gloss filling machine, China spiral lip gloss filling machine manufacturers, suppliers, factory
|
Machine Model |
ZS-LG2C |
|
Voltage |
AC 380V/220V 50Hz |
|
Power |
5.4kW |
|
Filling Speed |
About 8-24pcs/min |
|
Filling Range |
3-20ml |
|
Filling Pump |
Servo Piston Pump |
|
Filling Accuracy |
±0.1ml |
|
Feeding Hopper |
20L, SUS304 |
|
Heating Temperature |
0-150℃ (optimal operating temperature is 80-120℃) |
|
Stirring Speed |
0-65r/min |
|
Material Contact Parts |
SUS304 |
|
Air Consumption |
3-6kg/cm² |
|
Machine Size |
About 900*1350*1900mm |
|
Machine Weight |
About 300kg |
|
Package Size |
About 1170*1100*1740mm |
|
Package Weight |
About 348kg |
Details

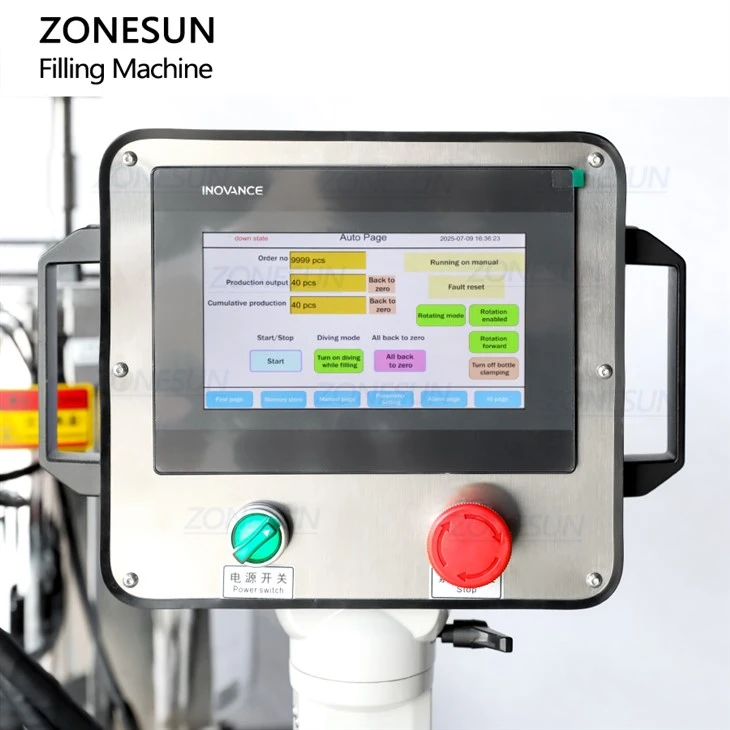

Touch Screen Control Panel
User-friendly panel allows for easy operation and parameter adjustment. Multiple languages can be customized.
Double Feeding Hoppers
The SUS304 hoppers are equipped with mixer and heater, ensuring smooth production.
Double Diving Heads
Equipped with servo piston pumps, it has high accuracy. It is designed for swirl filling of 2-color materials.
Fixing Molds
The molds can be customized according to your product size.
Electric Circuit
Electric circuits are well-organized to ensure stable production.
