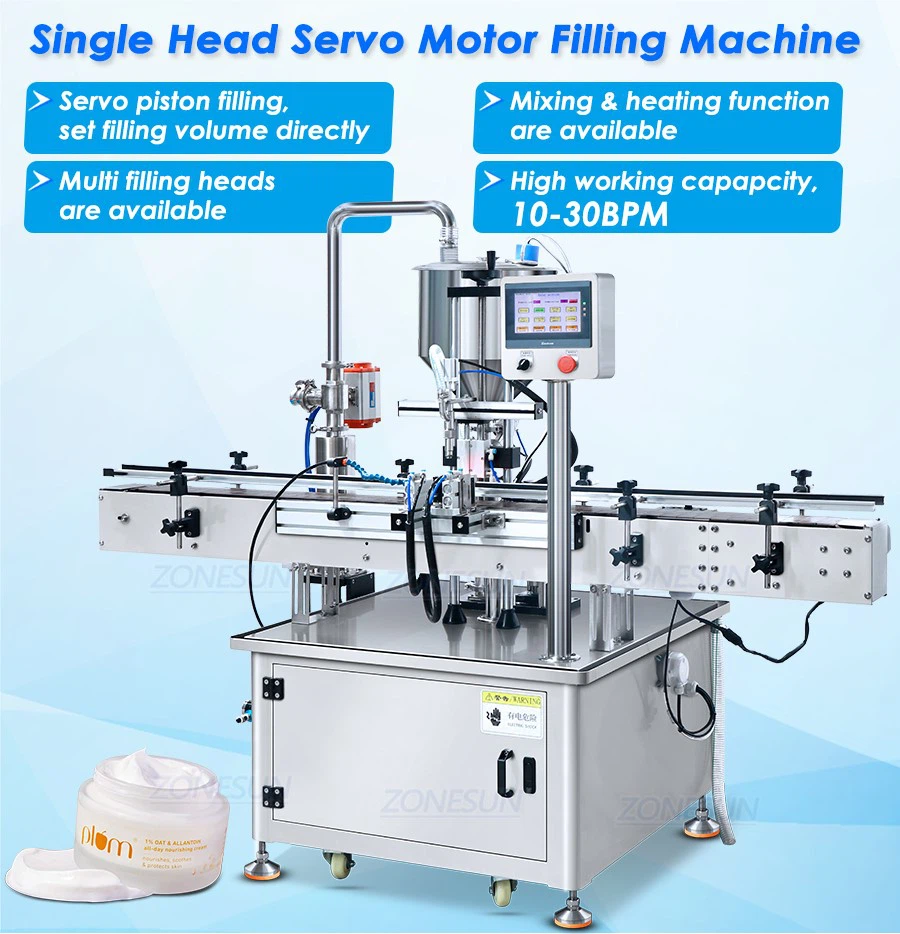

Servo Automatic Sticky Products Filling Machine
Machine Introductions:
This sticky products filling machine is controlled by servo motor. It can realize accurate filling of viscous liquids or pastes. The machine is equipped with PLC control panel, making it easier to set machine parameters. The filling head quantity and filling range can be customized according to your production requirements.
Hot Tags: servo automatic sticky products filling machine, China servo automatic sticky products filling machine manufacturers, suppliers, factory
|
Machine model |
ZS-YT1T-1PX |
|
Machine voltage |
110/220V 50-60HZ 2KW |
|
Filling range |
5-100ml |
|
Filling pump |
Piston Pump |
|
Filling nozzle |
1 (anti-dripping filling nozzle is available) |
|
Filling accuracy |
±1% |
|
Working capacity |
About 10-30BPM(based on filling volume) |
|
Machine size |
About 2000*920*1670mm |
Details

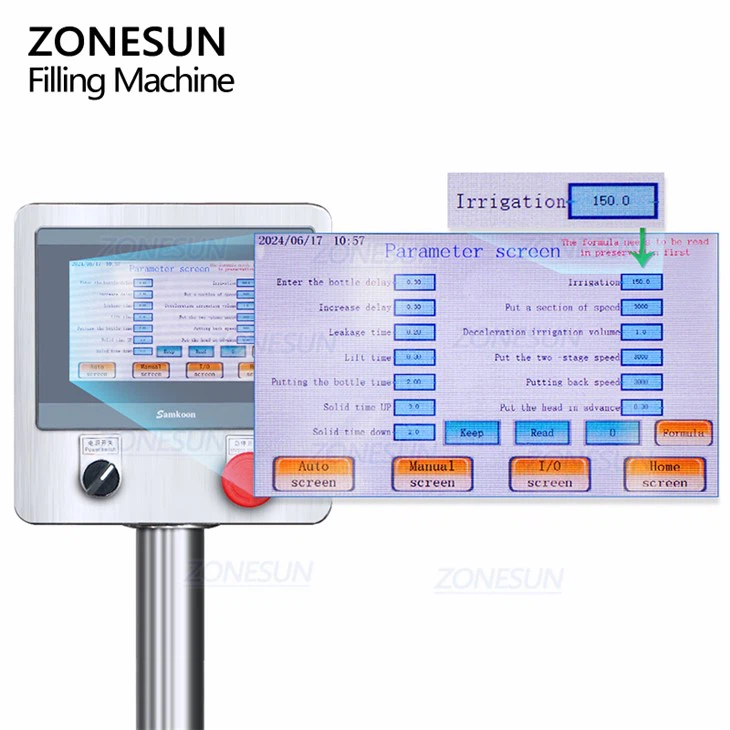

PLC Control Panel
Set filling volume directly, multi operation language simplifies machine operation.

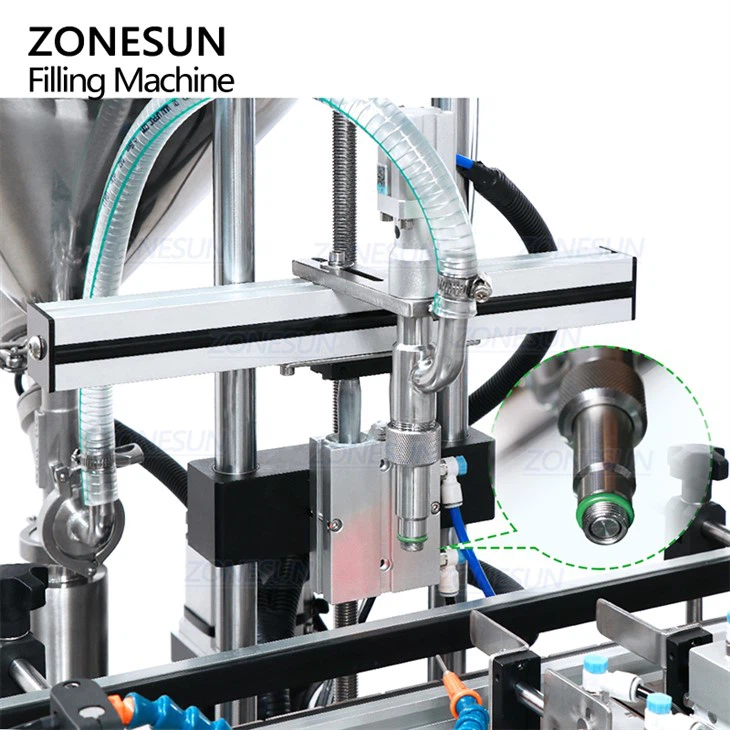

Anti-dripping Filling Nozzle
Nozzle size can be customized, multi filling nozzles are available.
Final Controlling Element
Designed for thick paste or viscosity liquid with granule, improves filling efficiency.

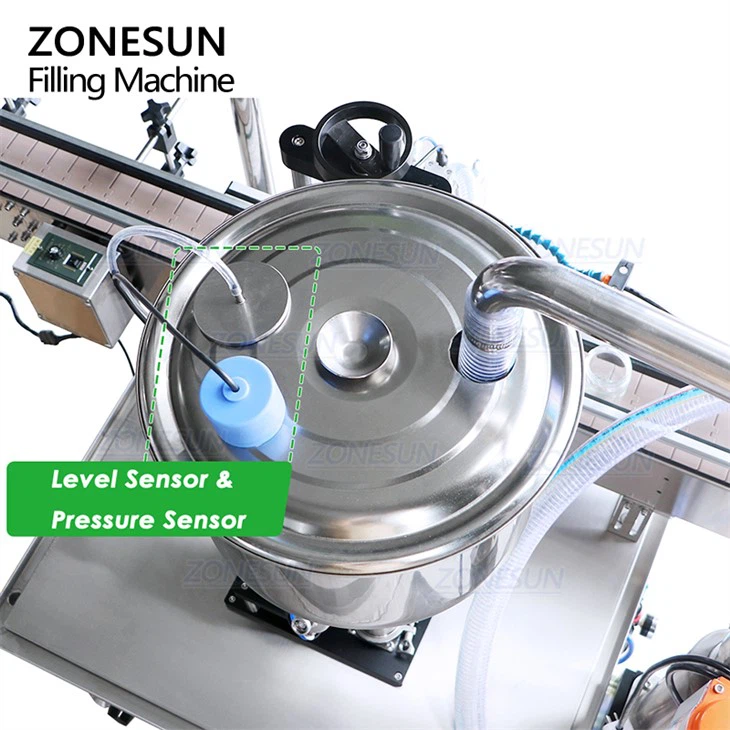

Level Sensor & Pressure Sensor
Ensure filling material can be supplied in time to save working labor.

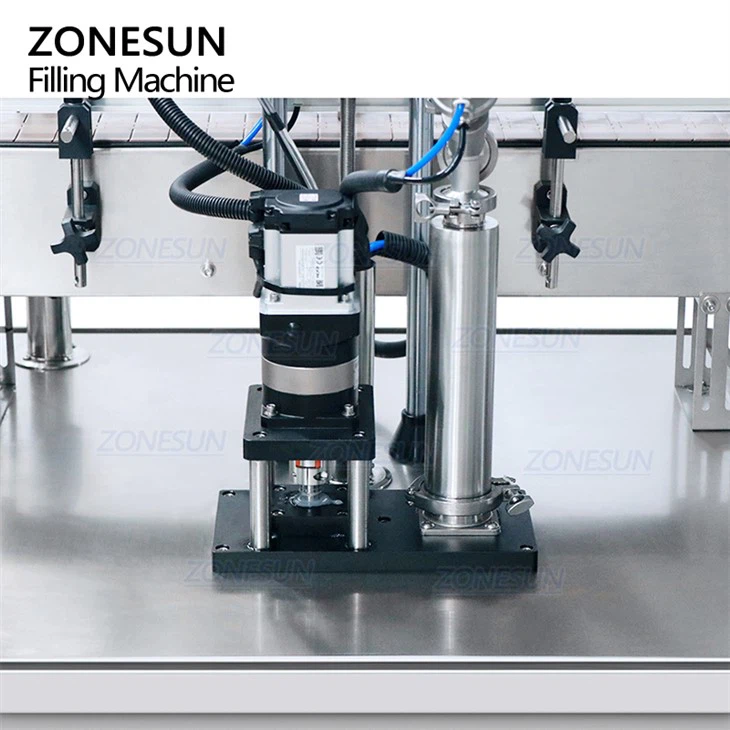

Servo Piston Pump
Controlled by servo motor, set filling volume directly, more accurate.
Electric Circuit
Connect the circuit neatly and orderly, works stably.
Conveyor Belt
Length and width can be customized, and conveying speed can be adjusted easily.
