Automatic Syrup Bottle Filling Machine
video

Automatic Syrup Bottle Filling Machine

This filling machine can be applied for filling thick liquid or paste, such as liquid syrup, ointment, honey, jam, etc. Filling speed can reach 20-35 bottles/min. The machine can also be equipped with material feeding machine, helping to improve efficiency.
Send Inquiry
Product Introduction

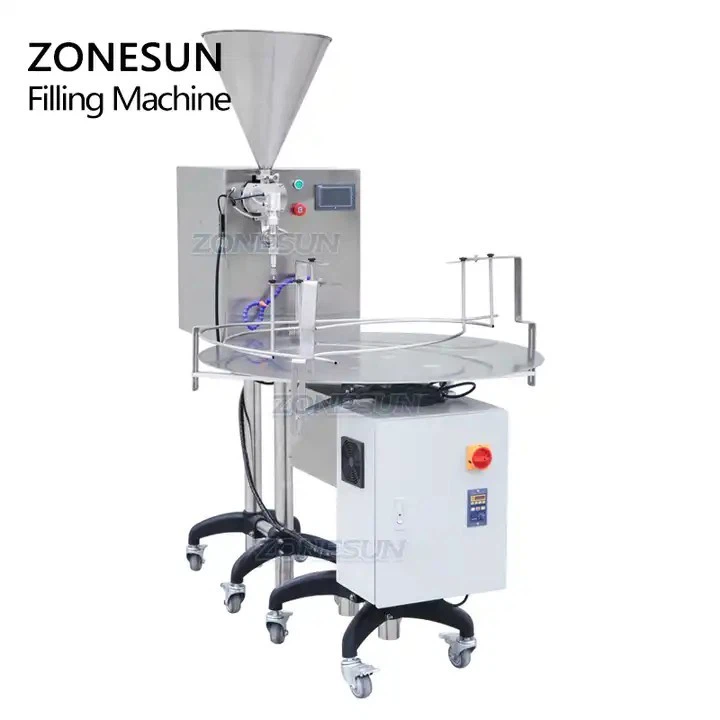

Automatic Syrup Bottle Filling Machine



-Description

This filling machine is suitable for filling thick paste or liquid, such as cough syrup, shower gel, salve, tamarind sauce, etc. It is designed with rotary plate, which can arrange bottles in order before filling. The syrup bottle filling machine can be used with capping and labeling machine to accomplish automated production.



Application



-Feature

·Different from other filling machines, this machine is designed with rotary plate, rather than conveyor belt. It can unscramble bottles before filling, saving labor cost.

·The rotating speed of rotary plate can be adjusted as production need.



Hot Tags: automatic syrup bottle filling machine, China automatic syrup bottle filling machine manufacturers, suppliers, factory, peanut butter filling machine, tomato paste filling machine, Cosmetic Cream Filling Machine, viscous liquid filling machine, high viscosity paste filling machine, automatic paste filling machine

Parameter

Machine Model

ZS-VTRP1

Machine Voltage

110/220V 50-60HZ 1KW

Filling Pump

Rotor Pump

Filling Range

About 5-5000ml

Applicable Bottle Size

φ=50-100mm H=50-250mm

Hopper Size

25L

Working Speed

20-35 bottles/min(based on filling material and filling volume)

Working Height

About 850±25mm

Machine Size

About 1688*1204*1800mm

Machine Weight

About 200kg



Diagram



-FAQ

Q: How about the steps of buying this syrup bottle filling machine?

A: Firstly, you can contact us and tell us about your production requirements. Then we'll supply you with relevant packaging solutions based on your products and offer a quotation.

Secondly, if it is necessary to customize or test machines, and you have samples of your products, you can send samples to us. Then we'll customize or test machines for you.

Thirdly, Once you're sure that the packaging solution meets your demands, you can pay deposit and send the information about your company including company name and shipping address. And we'll make proforma invoice for you.

Fourthly, having received the deposit and samples, we'll arrange the production of machines. After finishing production, we'll send the picture and video of machines to you.

Fifthly, if you're satisfied with the machines, you can pay the balance. And we'll arrange the shipment of machines to your workshop.
