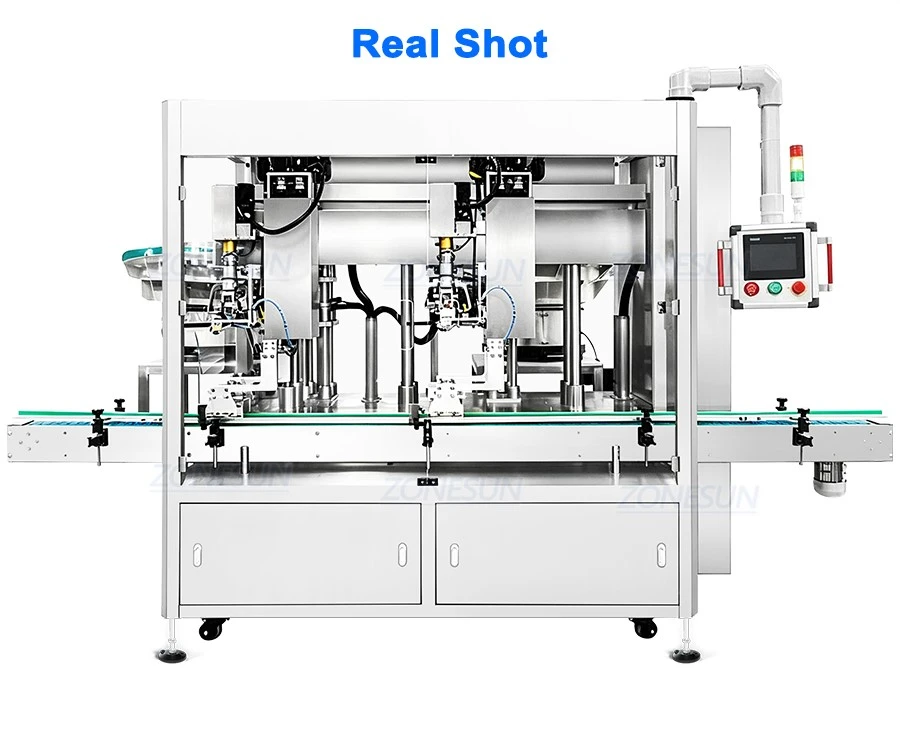

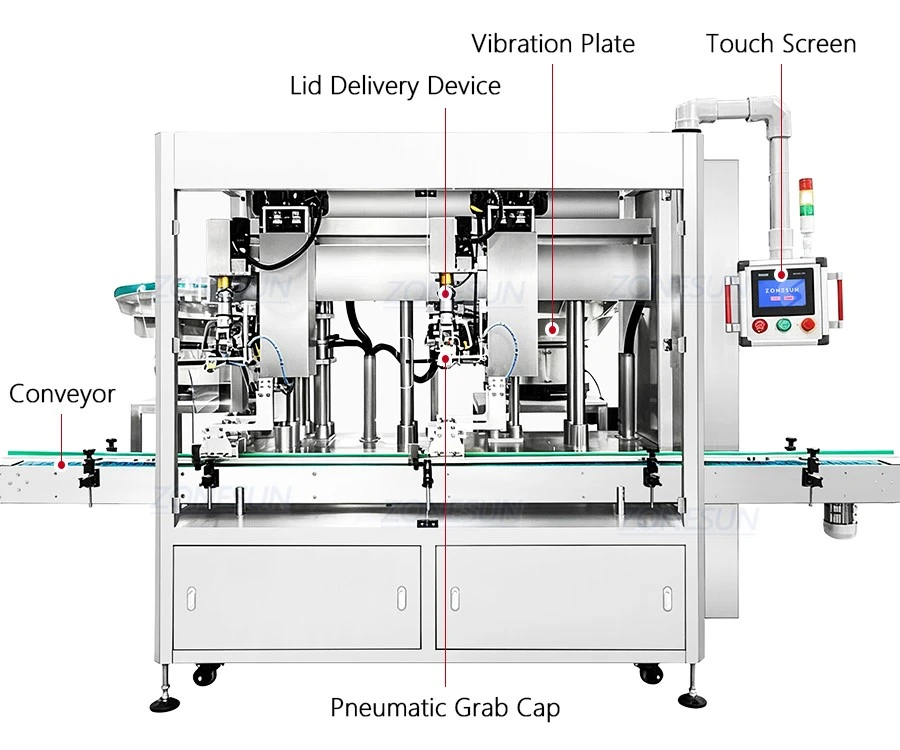

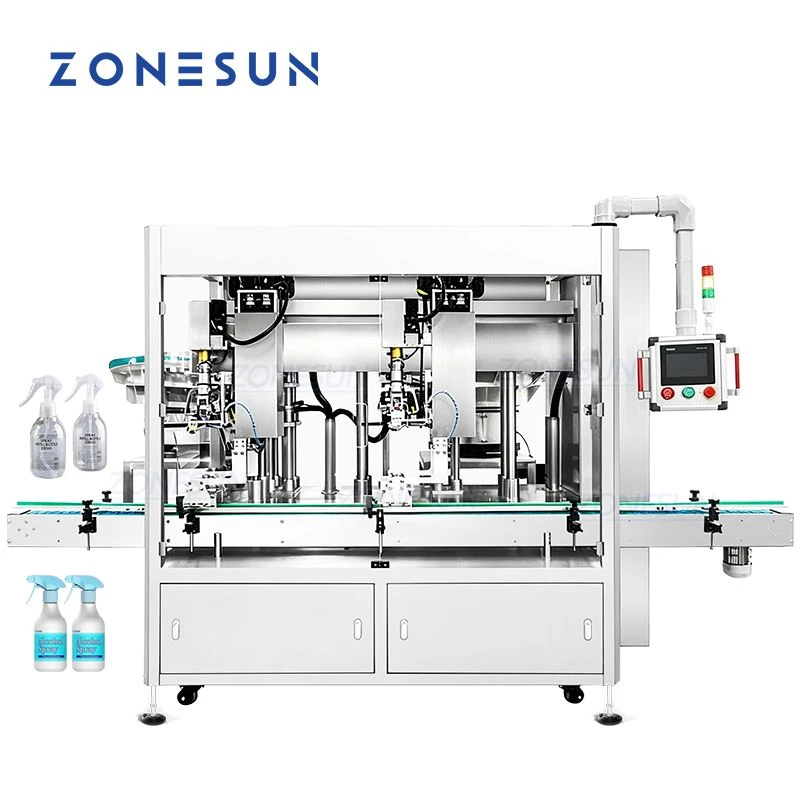

Disinfectant Spray Capping Machine For Trigger Caps

Characteristics of ZS-VTXG3 Automatic Disinfectant Spray Capping Machine:

·Dual-head Operation: Two capping heads work simultaneously, which can realize output of 45-50 bottles per minute.

·Tracking Capping Technology: The capping heads follow the bottles during production rather than relying on a simple stationary capping process.

·Spray Cap Compatibility: Designed specifically for closures that can be difficult to handle with conventional screw cappers.

·Automatic Cap Feeding: An elevator and vibratory bowl work together to sort and deliver caps automatically.

·Dip-tube Alignment: A pneumatic gripping mechanism helps straighten and position pump tubes before insertion.

·Stable Cap Handling: Pneumatic gripping helps hold the closure securely during placement and capping.

·PLC And Touchscreen Control: Operators can manage machine parameters and monitor production through the control interface.

Hot Tags: Disinfectant Spray Capping Machine For Trigger Caps,Screw Capping Machine

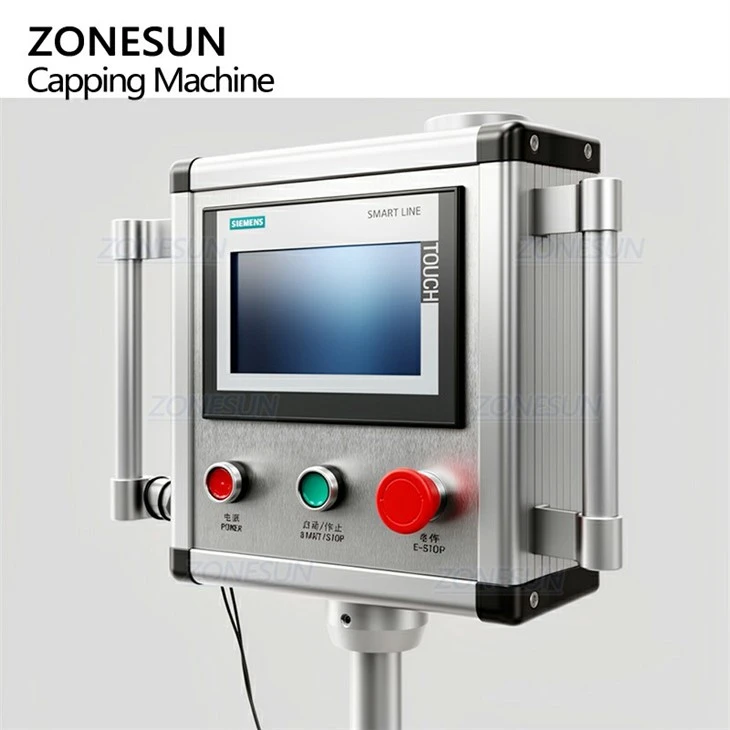

Touch Screen

Controls the capping process via a touchscreen for clear data display and easy adjustment, featuring emergency buttons to protect personnel and machinery.

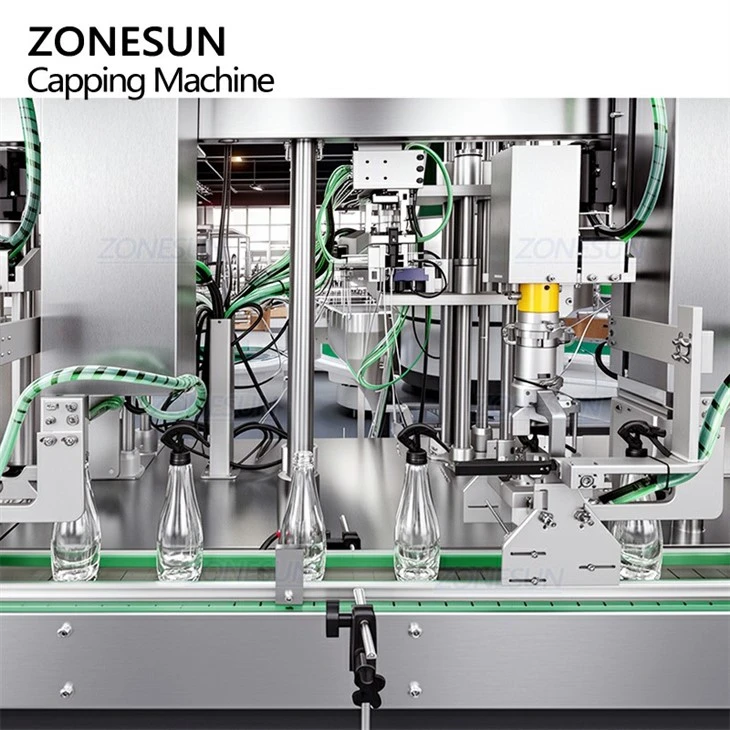

Dual Capping Heads

Processes two bottles simultaneously via two independent capping heads to reach a production capacity of 1,500–1,800 bottles per hour (Varying with bottle types).

Orientation & Protection

Ensures accurate insertion of dip tubes via precision positioning for trigger caps, utilizing a flexible handling process to prevent cap or bottle damage.

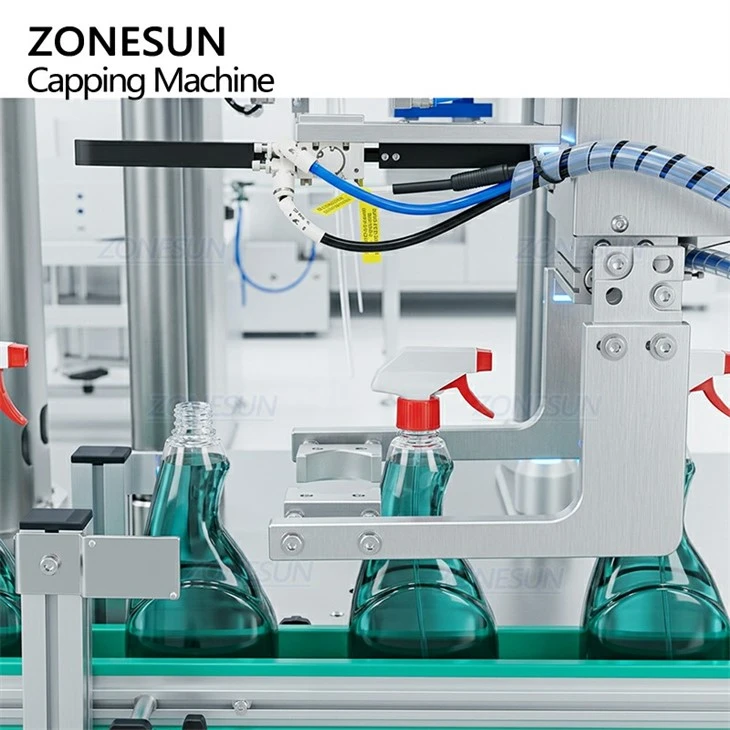

Capping Gripper

Secures caps stably via a pneumatic chuck to prevent misalignment, supporting flexible configurations of separate pressing/capping heads or dual capping heads.

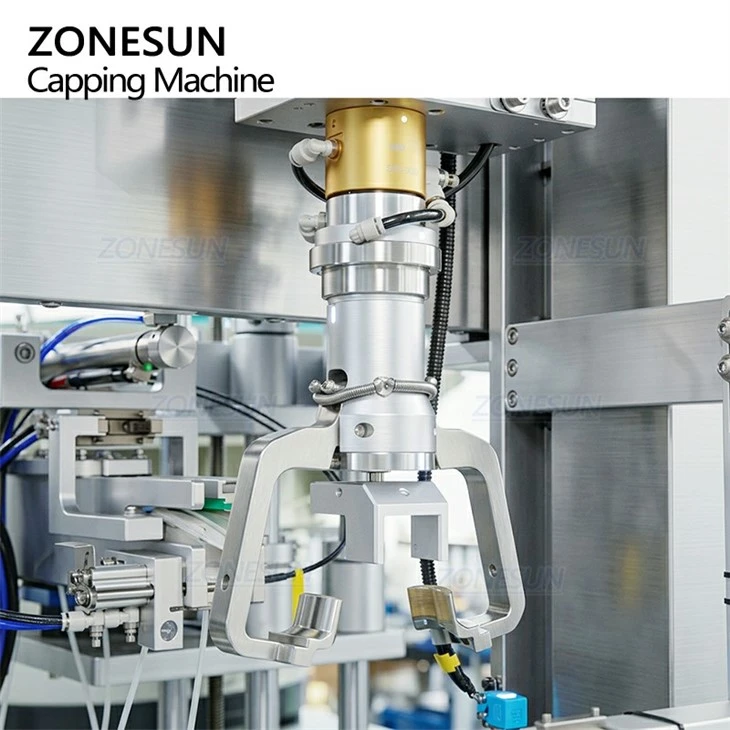

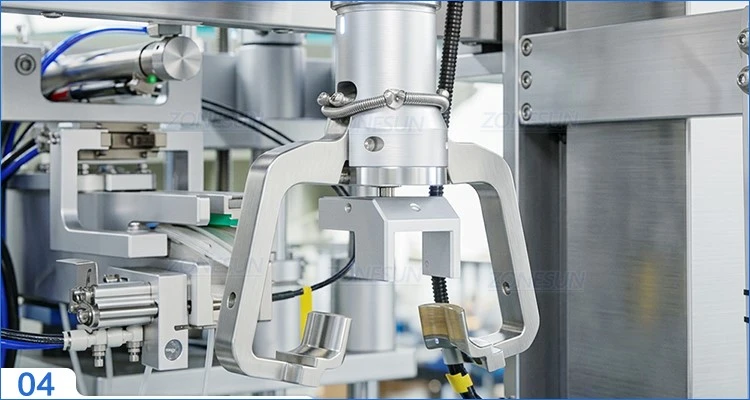

Cap Delivering Structure

Transfers caps precisely to the capping head via a pneumatic sliding mechanism, utilizing integrated sensors to ensure accurate, jam-free cap positioning.
