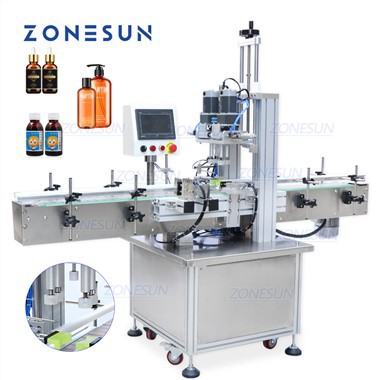

Automatic Detergent Bottle Capping Machine

-Description
This inline capping machine is suitable for screw-type bottle caps, for example, plastic mist spray caps, dropper caps, pump caps, etc. Capping speed can reach about 48 bottles/min. The automatic detergent bottle capping machine can work with filling and labeling machine, helping to improve working speed.

-Feature
- The automatic detergent bottle capping machine is adopting PLC control panel, making it more convenient to debug and operate the machine. The language of control panel can be customized as your need.
- Through rotating the black handle, you can adjust the working height of capping head, making it suitable for different sizes of bottles.
- This inline capping machine can be used with conveyor belt or work with your existing filling line, whose conveyor belt is long. Please contact us if you need.
- Equipped with bottle guiding belt, it is not easy for bottles to fall down during production. The width of guiding belt can be adjusted as production need.
Hot Tags: automatic detergent bottle capping machine, China automatic detergent bottle capping machine manufacturers, suppliers, factory, ropp sealing machine, Screw Capping Machine, Glass Jar Capping Machine, lug capping machine price, bottle capping equipment, Automatic Trigger Capping Machine
|
Machine Model |
ZS-XG20A |
|
Machine Voltage |
110/220V 50-60Hz 1KW |
|
Working Speed |
About 48 bottles/min |
|
Applicable Cap Diameter |
20-68mm(standard) 15-70mm/20-115mm(customized) |
|
Applicable Bottle Size |
80-300mm (H)*25-150mm(Diameter) |
|
Machine Size |
About 600*1030*1700mm(L*W*H) |
|
Machine Weight |
About 200kg |
|
Package Size |
About 1270*720*1870mm |
|
Package Weight |
About 241kg |

Details



-About Customization
ZONESUN can offer tailored solution for this inline capping machine. You can send your samples to us for machine customization. What’s more, please send the information of your products to us before placing an order, for example, your bottle cap shape and size, bottle size and capacity demands.
