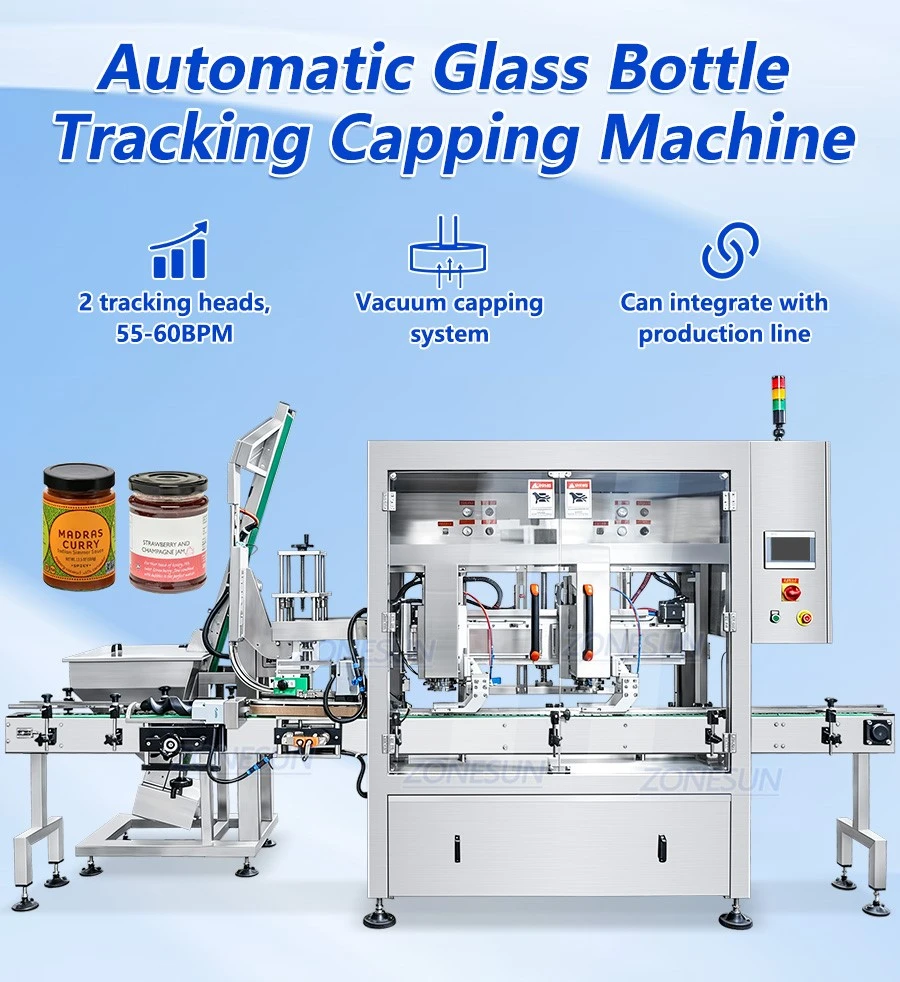

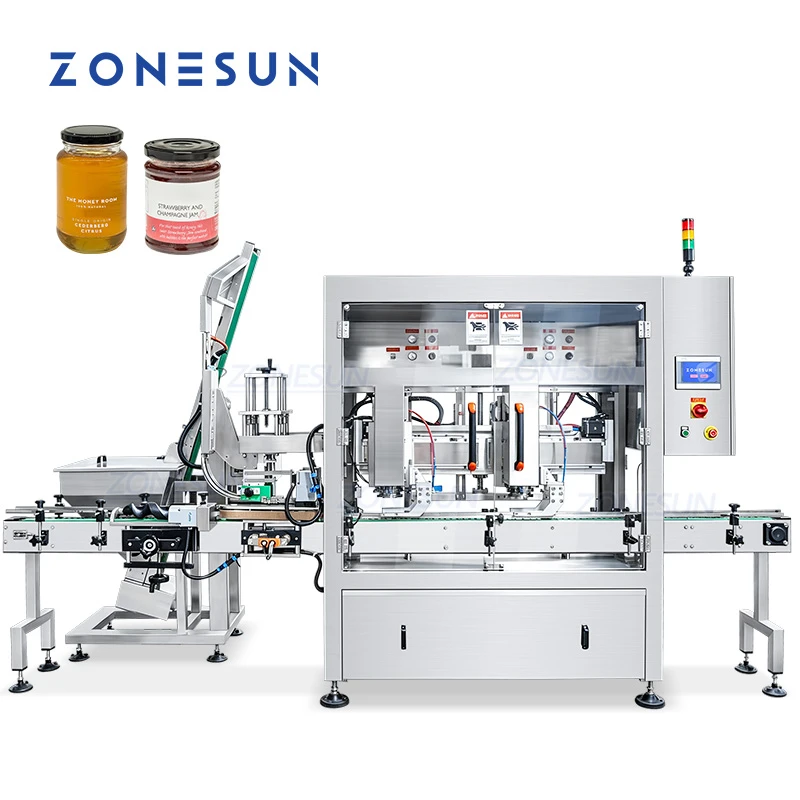

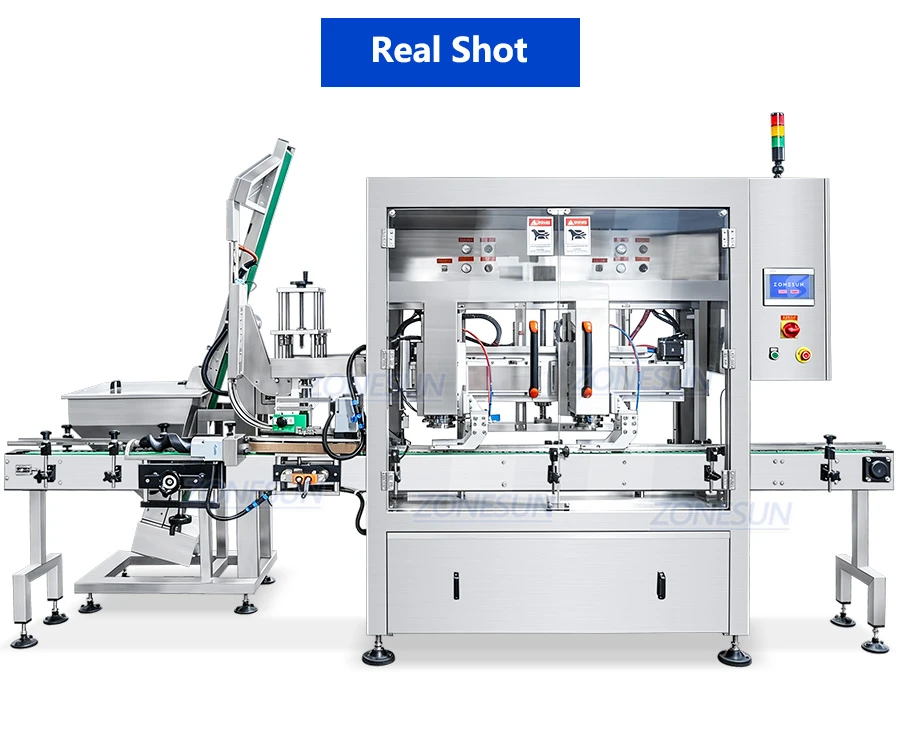

Automatic Twist Off Vacuum Capping Machine
Key Characteristics of ZS-AFK180 Automatic Twist Off Vacuum Capping Machine:
·Fully Automatic Vacuum Capping System: ZS-AFK180 machine is designed for glass jars using metal lug/twist-off caps.
·Dual-Head Tracking Capping: Allows the machine to cap containers continuously while they move along the conveyor.
·Production Speed of 55-60 jars/minute: Suitable for medium- to high-volume jar sealing production.
·Automatic Cap Sorting And Feeding: Can organize loose caps and send them to the capping station in the correct orientation.
·Vacuum Sealing Function: Can remove air before final tightening, with an adjustable vacuum range of −50 to −70 kPa.
Hot Tags: Automatic Twist Off Vacuum Capping Machine,Screw Capping Machine
|
Machine Model |
ZS-AFK180 |
|
Machine Voltage |
AC380V 50Hz 5KW |
|
Capping Heads |
2 Tracking Heads |
|
Capping Speed |
About 55-60 bottles/min(depending on product size) |
|
Applicable Cap Diameter |
φ38-φ80mm |
|
Applicable Bottle Size |
Diameter: φ50-φ80mm * Height: 65-200mm |
|
Capping Torque |
5-25kg·cm |
|
Vacuum Level |
-50KPa to -70KPa |
|
Conveyor Height |
800±30mm |
|
Compressed Air Supply |
>0.5MPa, 0.3m³/min |
|
Machine Size |
About 3800*1133*2030mm |
Details

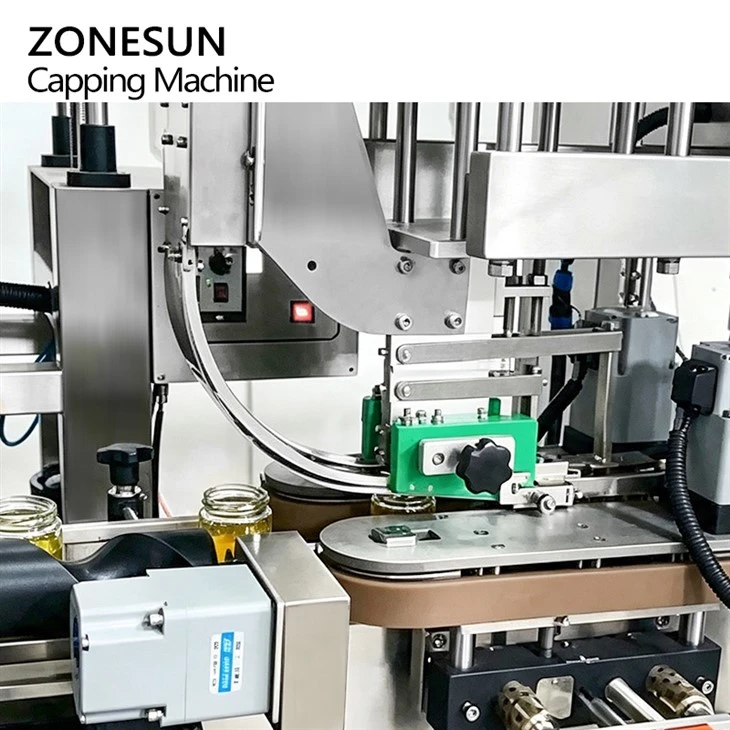

Automatic Cap Placement
Can place and position the closure on the jar before the tightening process, ensuring smooth jar capping process.

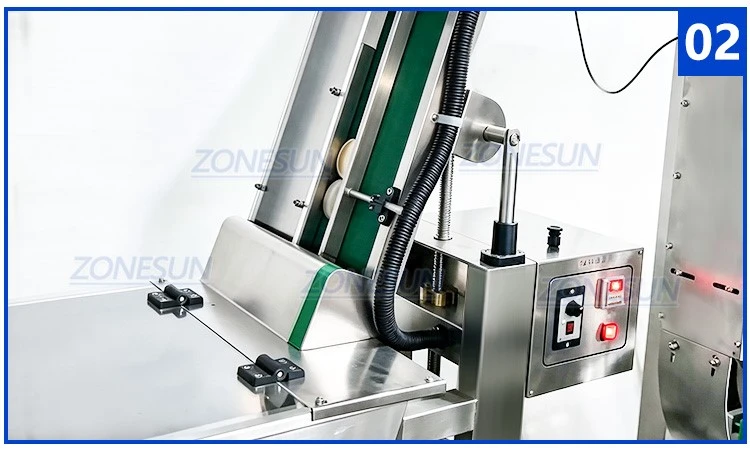

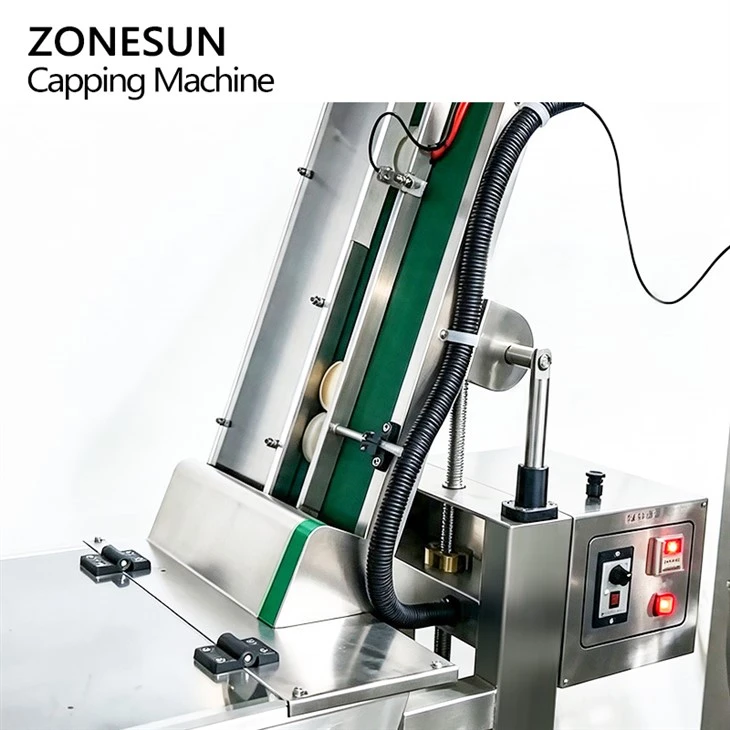

Cap Sorting And Feeding
Can automatically organize and orient the loose metal caps before being placed onto incoming jars.

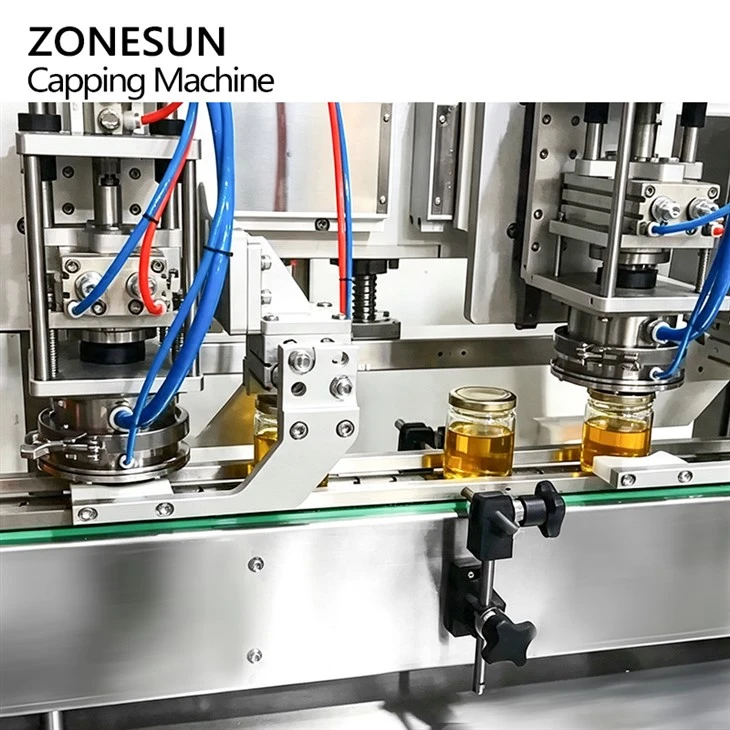

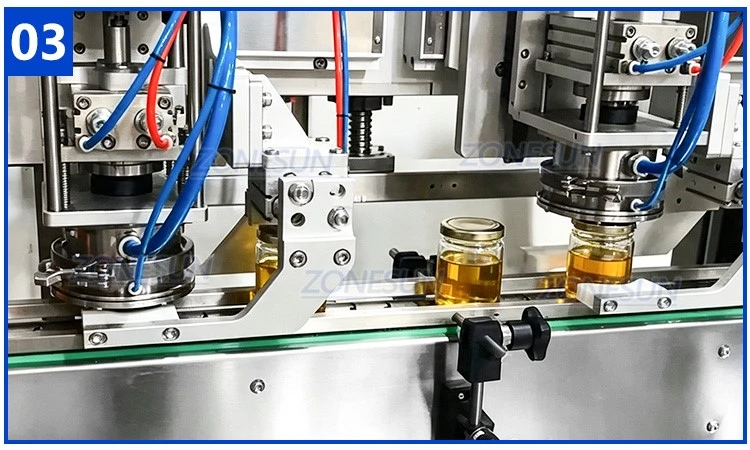

Dual-head Capping System
Can follow the movement of the containers while applying controlled capping torque. Suitable for production lines requiring reliable and repeatable jar capping.

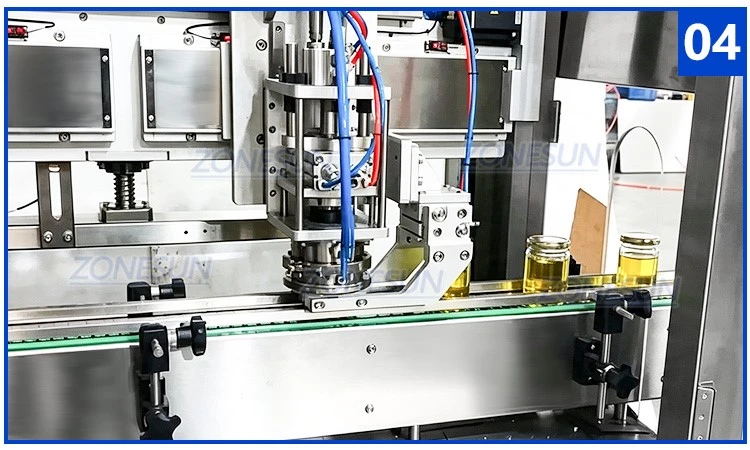

Vacuum Sealing System
Can create a controlled vacuum environment to remove air from the jar before the cap is fully tightened.
