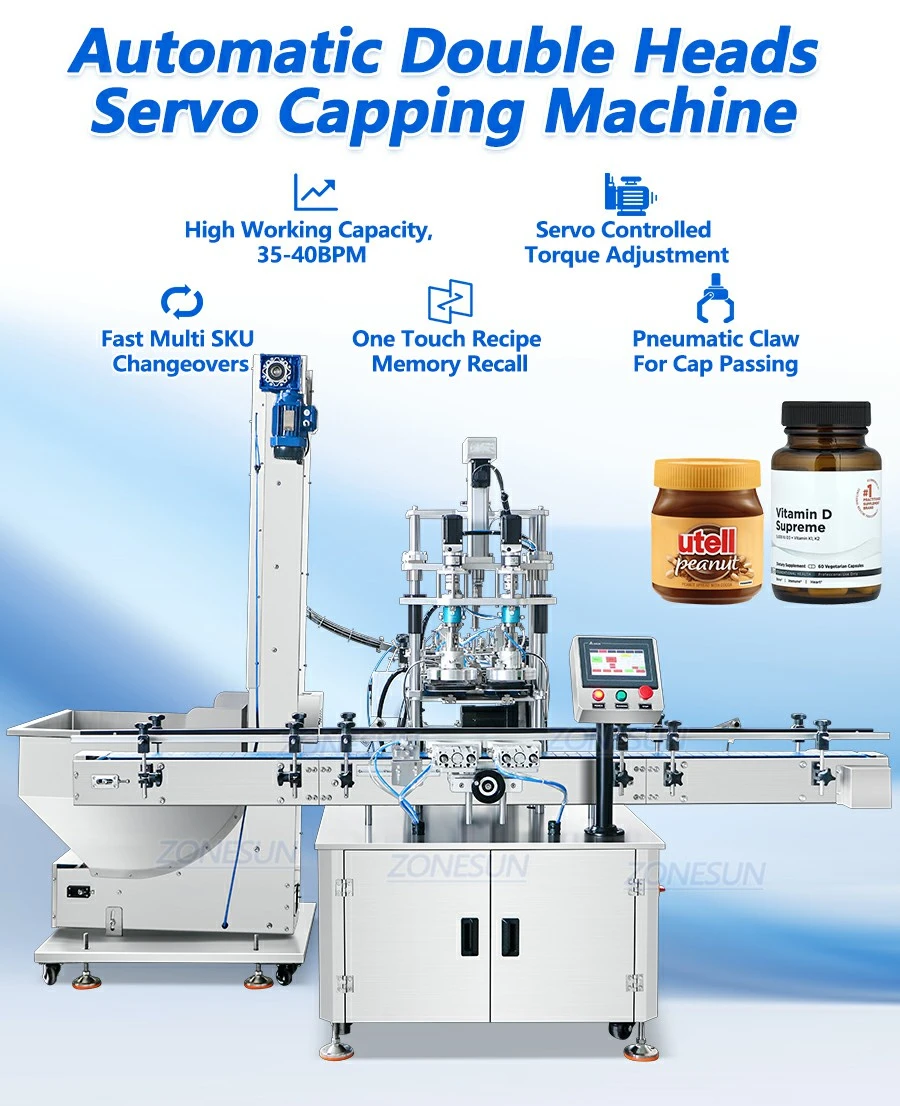

Automatic Double Head Servo Screw Capping Machine
Key Features of ZS-SVXG01 Automatic Double Head Servo Screw Capping Machine
·Dual Servo Capping Heads: Two independently controlled servo heads provide adjustable and repeatable tightening torque for more consistent closures.
·High Production Capacity: Rated at approximately 2,100-2,300 bottles per hour, making it suitable for continuous production.
·Automatic Cap Elevator: Continuously supplies caps to the capping mechanism, helping maintain uninterrupted operation.
·Flexible Bottle Compatibility: Designed for containers approximately 20-150 mm in diameter and 20-220 mm in height, with suitable cap tooling configurable according to the application.
·Change-part Design: Interchangeable components allow the machine to accommodate different bottle and closure formats.
·Industrial Conveyor System: Uses a 2,000*114 mm conveyor with an approximately 850 mm working height.
Hot Tags: Automatic Double Head Servo Screw Capping Machine,Screw Capping Machine
|
Machine model |
ZS-SVXG01 |
|
Machine voltage |
110/220V 50-60HZ 1.5KW |
|
Suitable bottle size |
φ=20-150mm H=20-220mm |
|
Suitable cap size |
Customizable |
|
Working capacity |
2100-2300BPH |
|
Conveyor size |
2000*114mm(L*W) Working Height=850mm |
|
Machine casing material |
SUS304 |
|
Air consumption |
0.4-0.6MPa |
|
Machine size |
About 2280*2050*2250mm |
|
Machine weight |
About 260kg |
|
Package size |
About 2290*1340*1420(Cap Elevator) +1150*1050*1200mm(Capping Machine) |
|
Package weight |
About 270kg(Cap Elevator) + 314kg(Capping Machine) |
Details

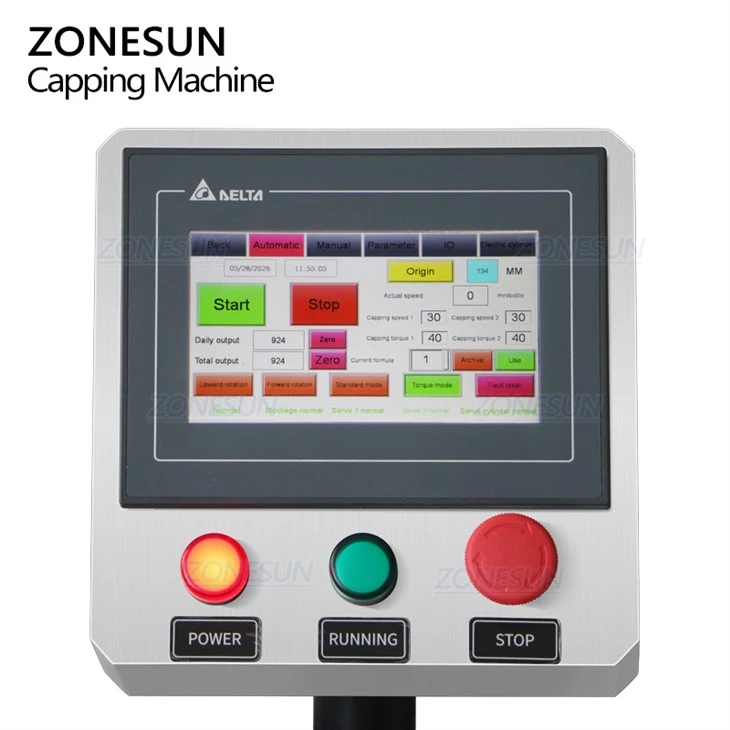

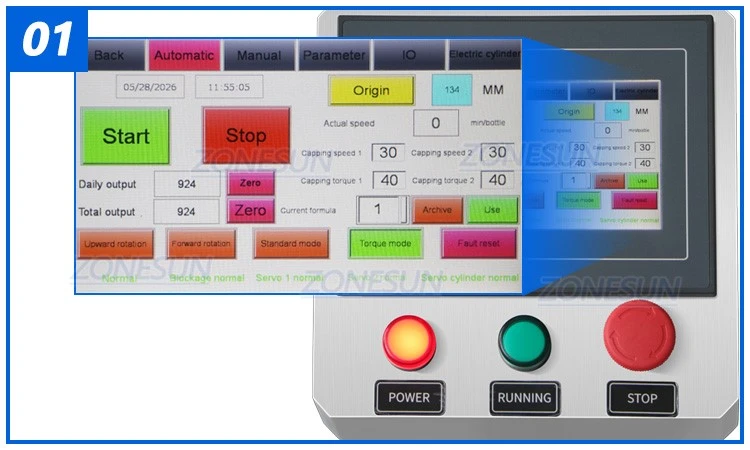

PLC Control Panel
The touchscreen HMI provides straightforward control of operating parameters and allows production recipes to be stored and recalled.

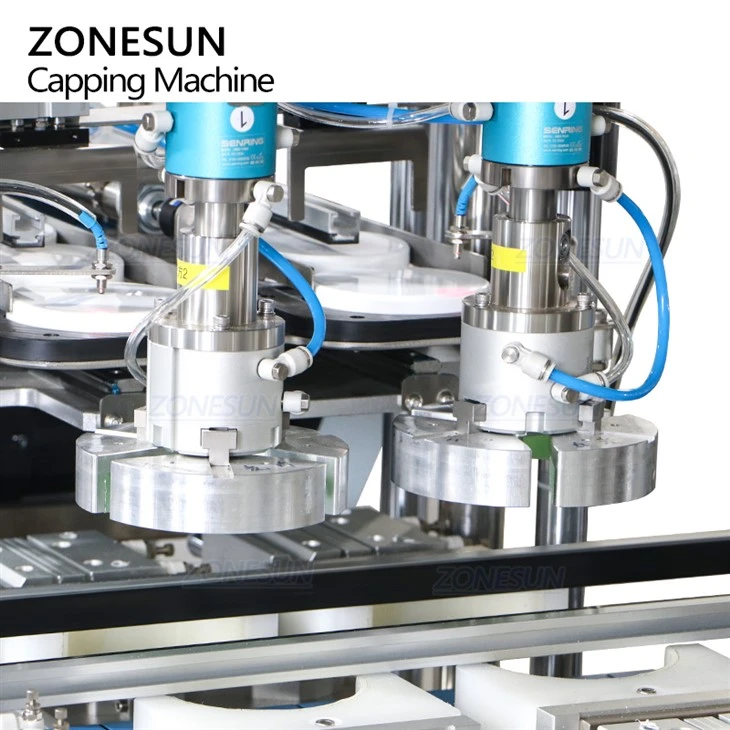

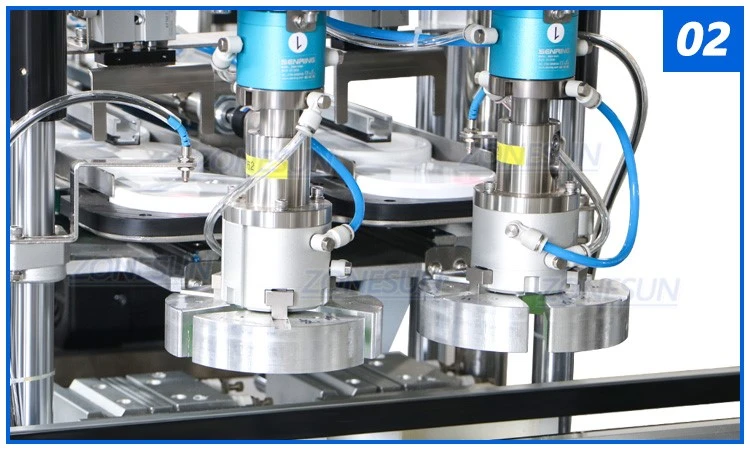

Servo-controlled Capping Heads
Provide precise control over tightening torque, helping to achieve consistent sealing without excessive tightening or loose caps.
Pneumatic Cap Gripper
Securely hold and position the caps before tightening, helping minimize misalignment.

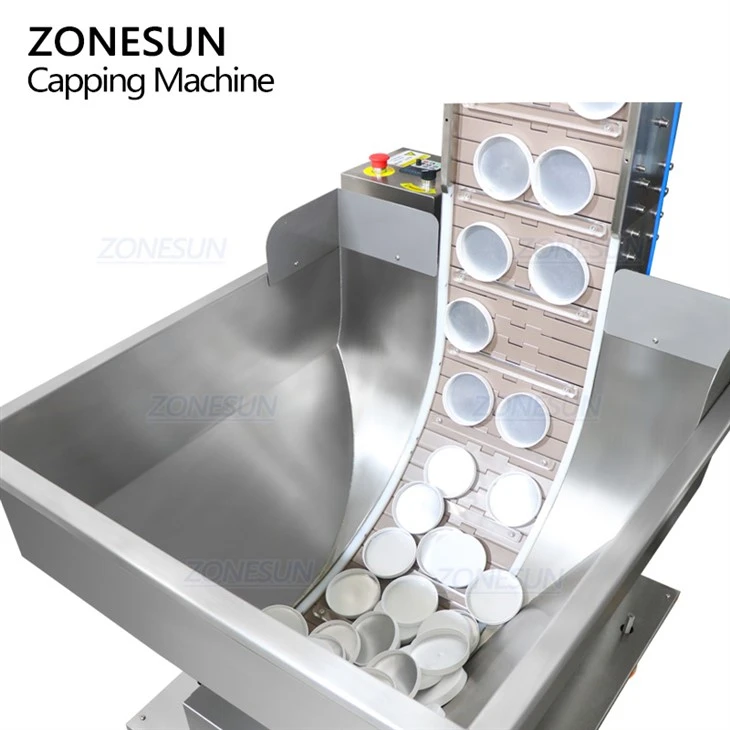

Cap Elevator Machine
Continuously delivers caps to the capping station, supporting stable high-speed operation and helping reduce cap placement errors.

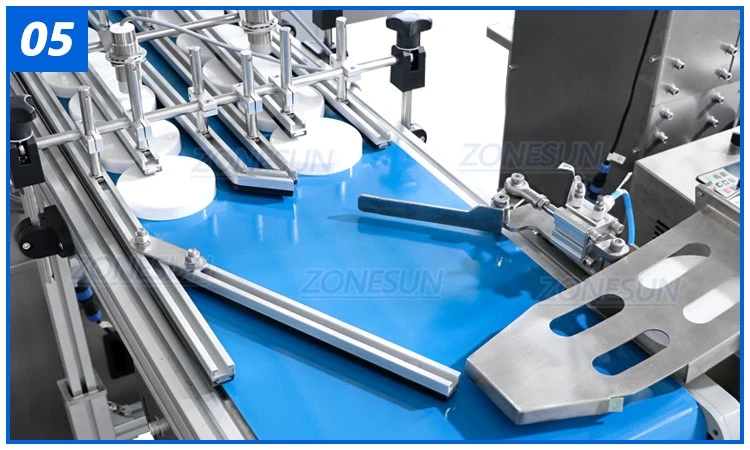

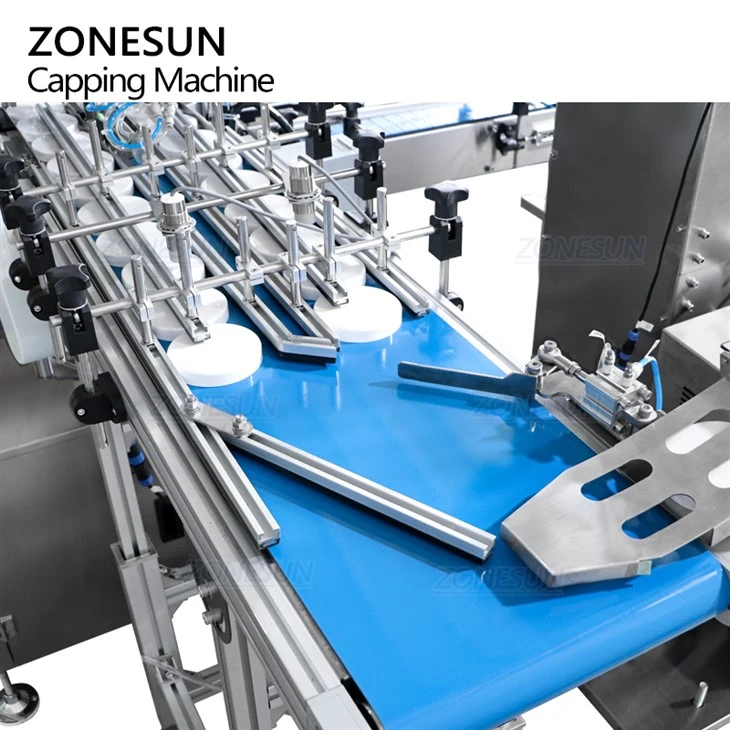

Interchangeable Parts
Allow the machine to be configured for different bottle and cap specifications, making it practical for manufacturers handling multiple products or package formats.

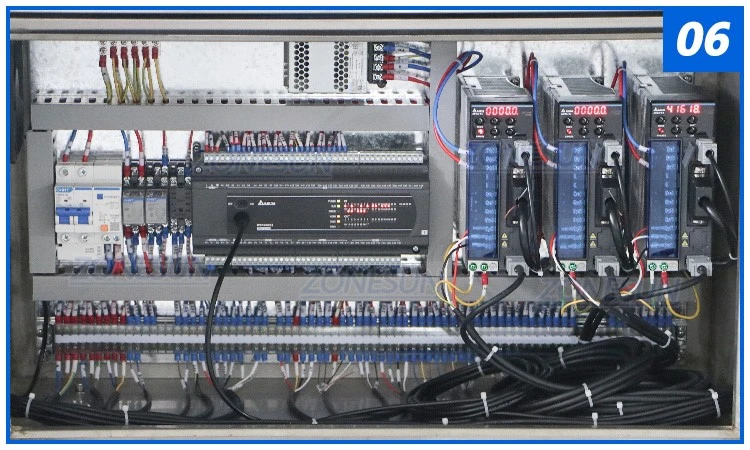

Electrical Control Cabinet
Adopts organized electrical layouts and supports future upgrades according to specific production requirements.
