Automatic Fire Extinguisher Powder Filling Line
-Description
When filling, the dry powder filling machine will pump the air in the fire extinguisher cylinder to generate a negative pressure vacuum, and suck the dry powder into the fire extinguisher through hose. After this, the fire extinguisher filled with dry powder will be transported to the capping machine by the conveyor belt for valve-capping. This automatic fire extinguisher powder filling line can work with other machines like nitrogen filling machine.
Hot Tags: automatic fire extinguisher powder filling line, China automatic fire extinguisher powder filling line manufacturers, suppliers, factory, chili sauce filling machine, popcorn filling machine, nail gel filling machine, olive oil filling machine, dropper bottle filling machine, Liquid Filling Capping and Labeling Machine
>Filling Machine
|
Machine Model |
ZS-FM6A |
|
Machine Power |
About 4KW |
|
Filling Range |
6-8kg (each head,can be customized as need) |
|
Quantity of Filling Head |
4 |
|
Working Speed |
About 500 bottles/hour |
|
Machine Size |
About 1300*1300*2000mm |
|
Package Size |
About 1540*1550*2190mm |
|
Package Weight |
About 1000kg |
>Capping Machine
|
Machine Model |
ZS-XG22 |
|
Machine Power |
About 3.5KW |
|
Suitable Valve Diameter |
Customized |
|
Quantity of Capping Head |
2 |
|
Working Speed |
About 500 bottles/hour |
|
Machine Size |
About 900*900*1850mm |
|
Package Size |
About 1400*940*1340mm |
|
Package Weight |
About 694kg |
>Labeling Machine
|
Machine Model |
ZS-TB400 |
|
Machine Voltage |
110/220V 50-60HZ |
|
Suitable Product Diameter |
15-120mm |
|
Suitable Label Size |
Customized |
|
Labeling Speed |
25-40 pcs/min |
|
Labeling Accuracy |
±1mm |
|
Air Pressure |
0.4-0.6MpA |
|
Machine Size |
About 2150*1100*1440mm |
|
Machine Weight |
About 222kg |
|
Package Size |
About 2150*1450*1590mm |
|
Package Weight |
About 470kg |
Details

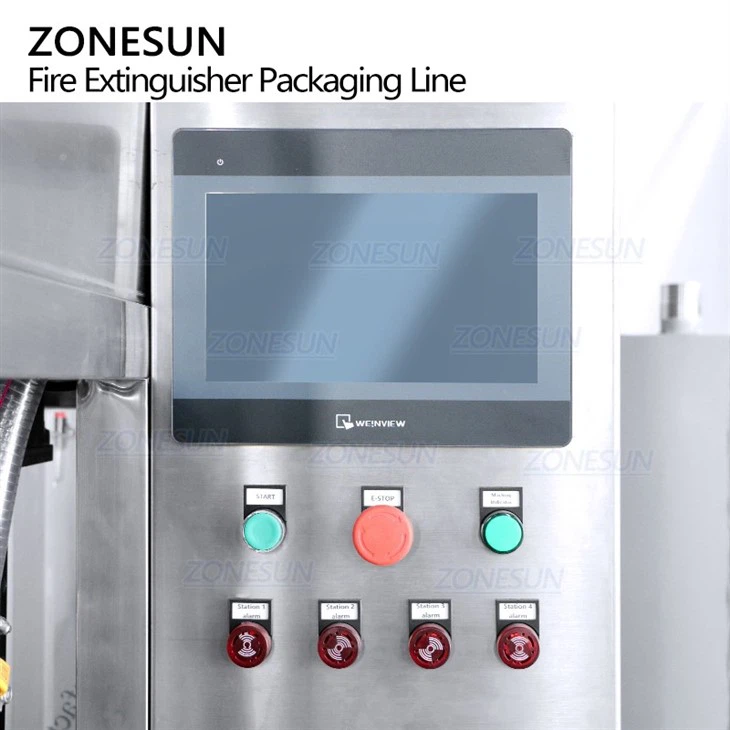

Equipped with touch screen control panel, this makes working data visual, it is more convenient to debug the machine and can watch the working status in real time. Different kinds of operation language can be customized as production need.
Multiple filling nozzles can be customized as production need.The filling machine is equipped with the weighing device, this can ensure the filling accuracy. The machine will pump the air in the fire extinguisher cylinder to generate a negative pressure vacuum to realize the filling work.

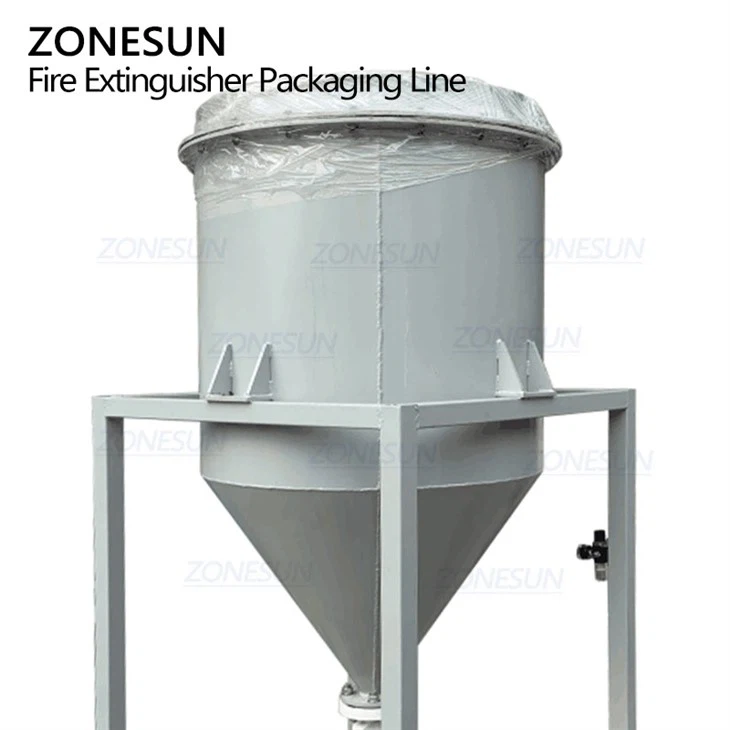

Equipped with powder recycling tank,the residual powder at the bottle mouth of the filling machine and the powder floating in the filling head are all extracted and returned to the recycling tank, and then returned to the powder tank after a series of procedures.This can reduce production cost and offer the solution of dust pollution greatly.
The support device for valve screw is used to clean the powder on the bottle mouth and apply lubricating oil to the thread of the bottle mouth to ensure that the next capping work can be processed smoothly. The electric eye can detect passing by bottles and realize the automated production.

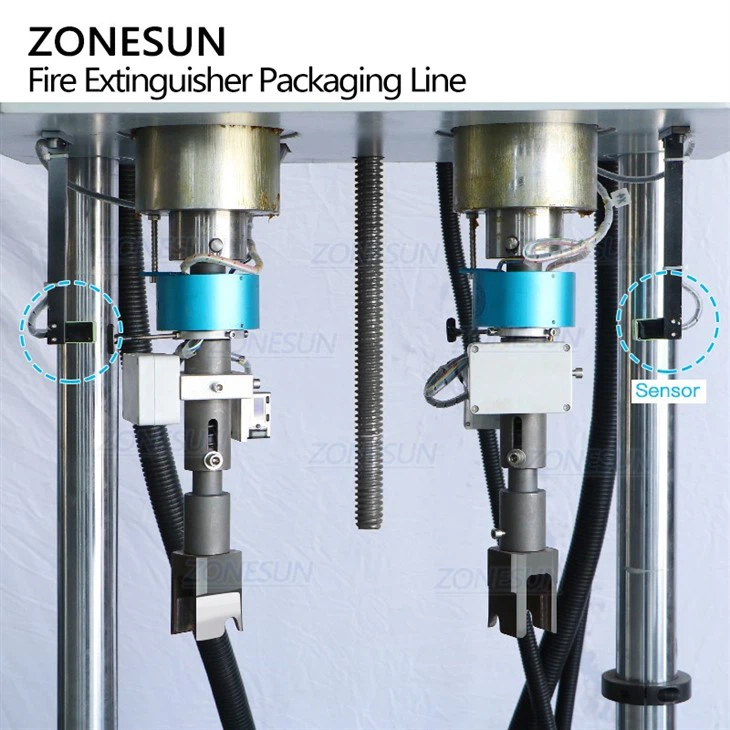

The valve capping machine has two working mode. The semi-automatic working mode and automatic working mode. The sensor can detect the position of the carry handle and finish the capping work.

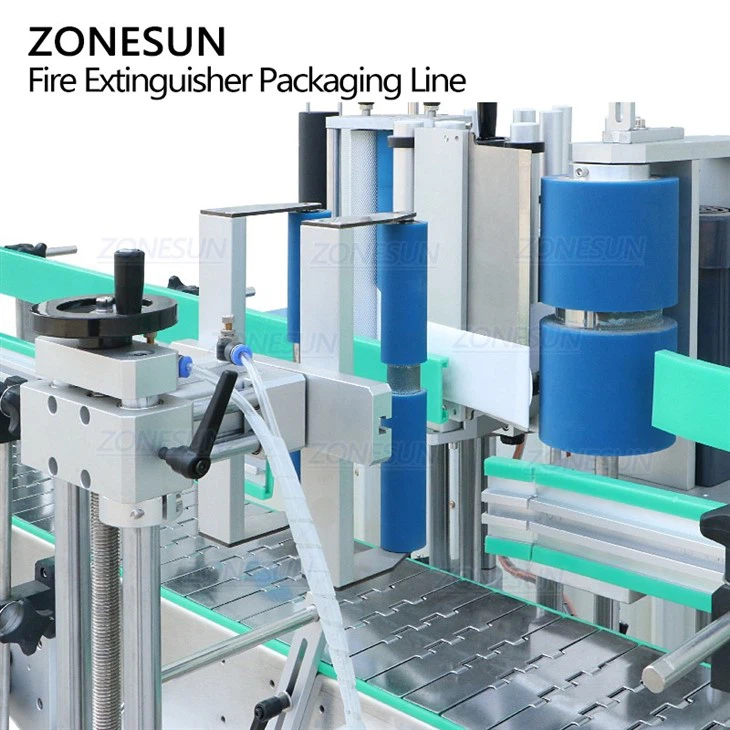

The working height of labeling structure can be adjusted according to production need, it label stickers by rotating the rubber cylinder, this kind of labeling method is suitable for single side and double sides labeling.
Made of high quality stainless steel conveyor, it has larger weight capacity. This can transport products faster and more stably.
