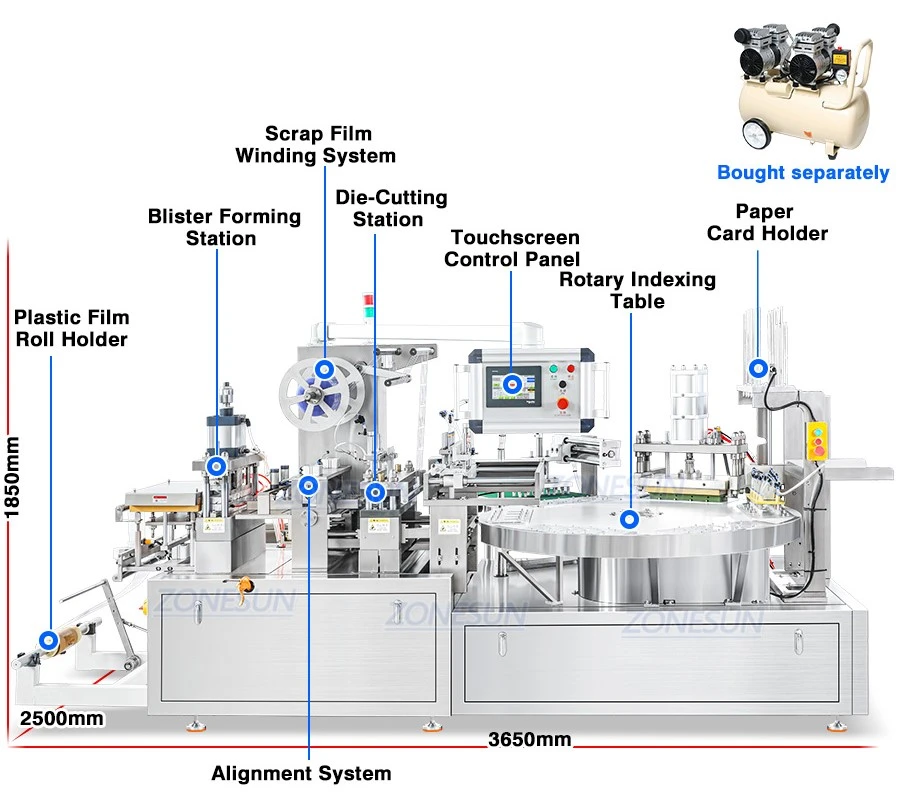

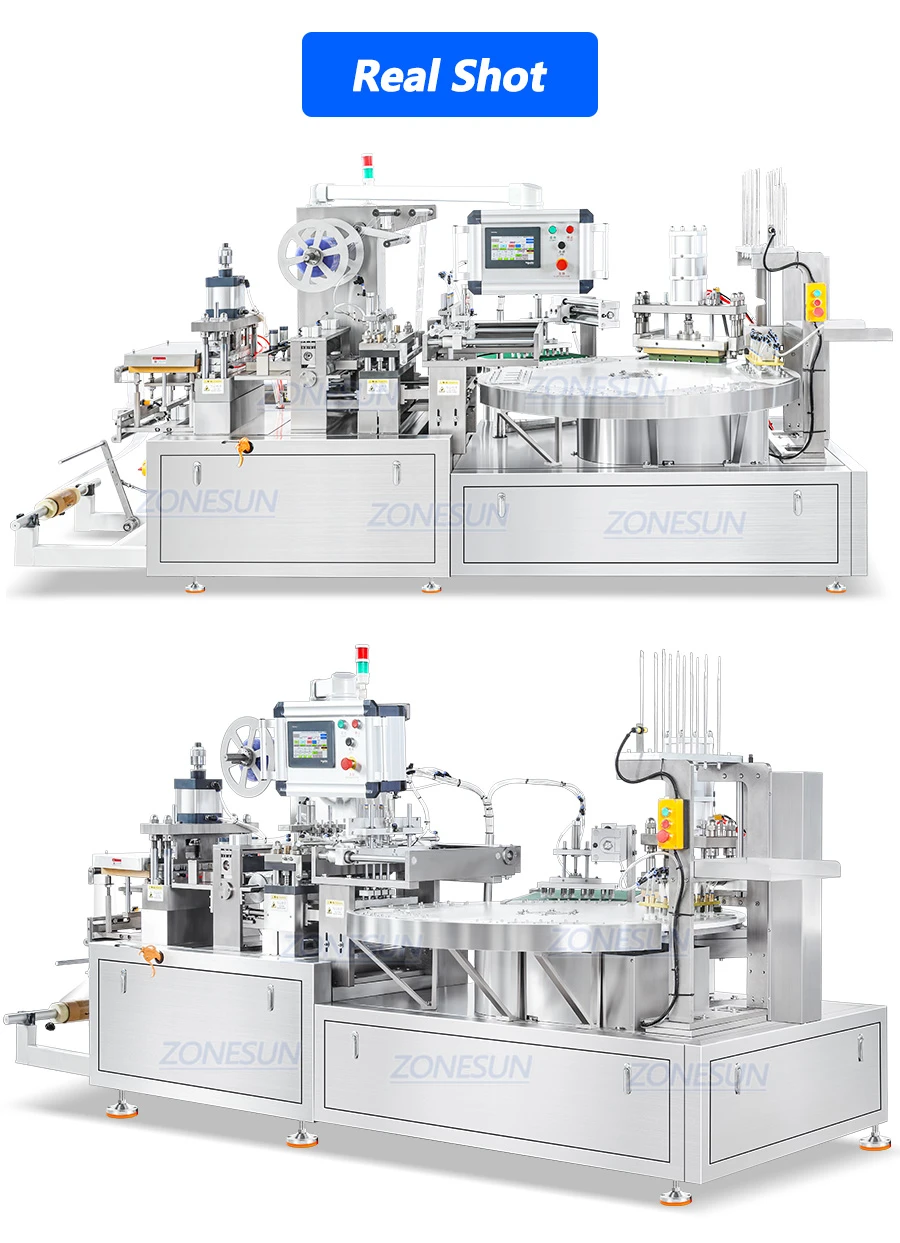

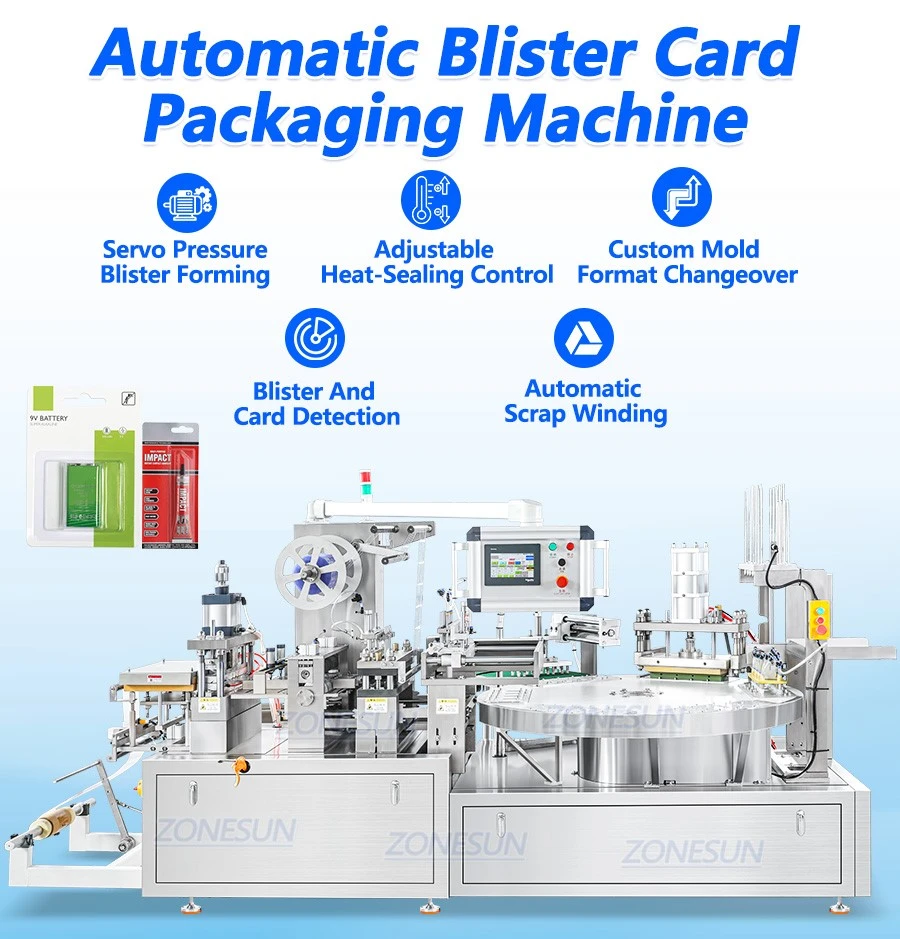

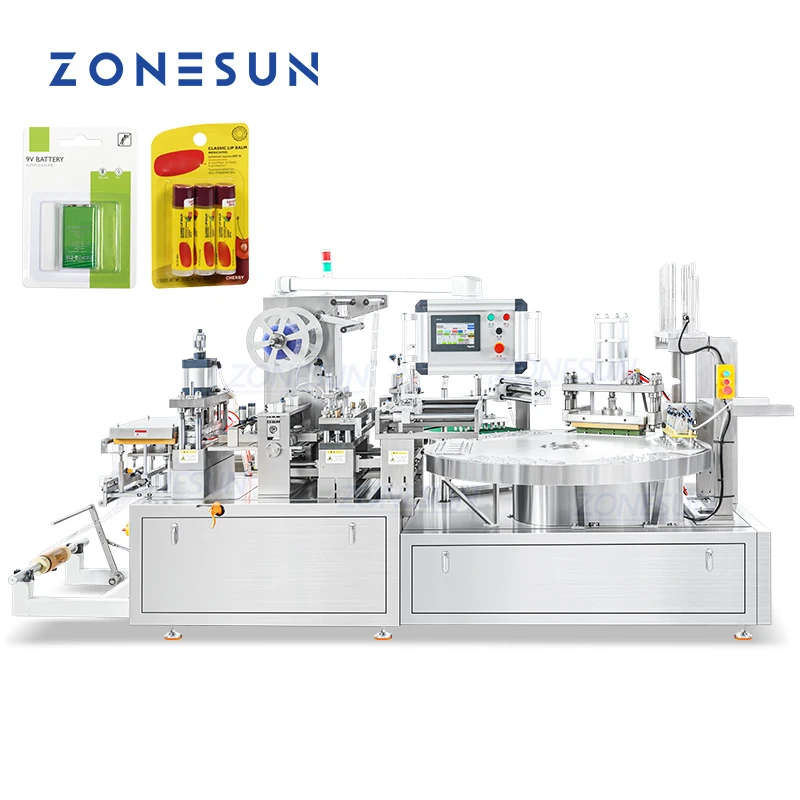

Strong Glue Blister Packaging Machine

Machine Characteristics:

·Automatic Packaging Process: Integrates multiple blister-forming and sealing operations into one machine.

·Customizable Packaging: Uses product-specific molds to create cavities and cutting shapes suited to different items.

·Rotary Transfer System: Moves blister packs between working stations to support an organized packaging cycle.

·Adjustable Operating Parameters: Allows operators to modify settings such as forming temperature, sealing duration, and rotary-table speed.

·Flexible Loading Options: Supports manual product placement, with automatic feeding available as an option depending on product requirements.

Hot Tags: Strong Glue Blister Packaging Machine,Packaging Machine

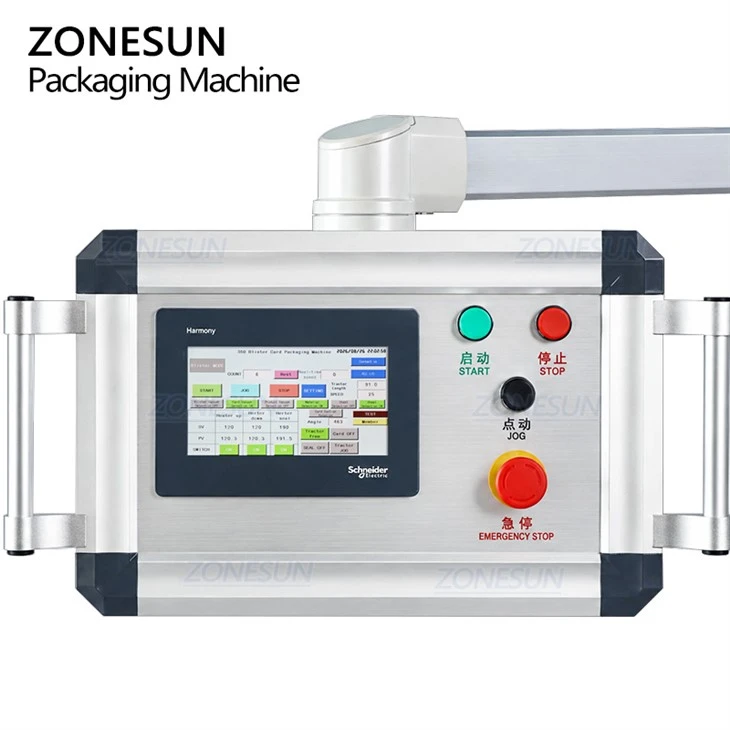

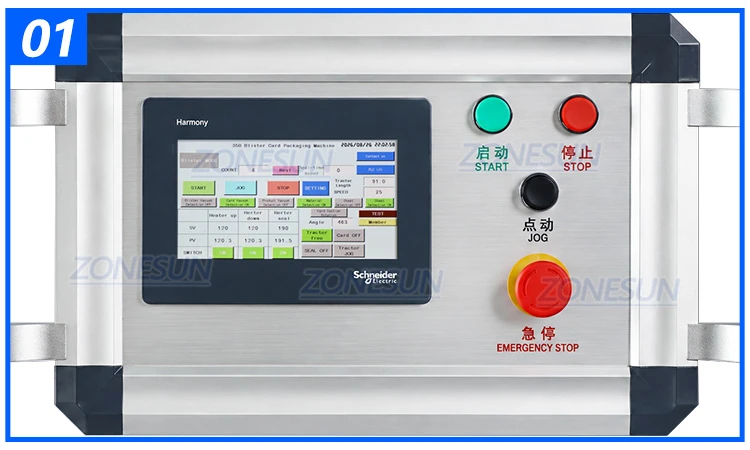

Touchscreen Control Panel

The touchscreen control panel provides a central interface for machine operation and parameter adjustment.

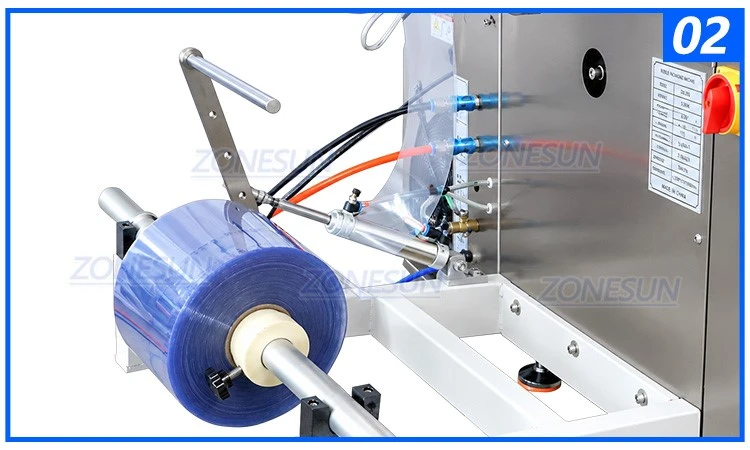

Roll Feeding System

The roll feeding system automatically supplies plastic material to the blister forming structure.

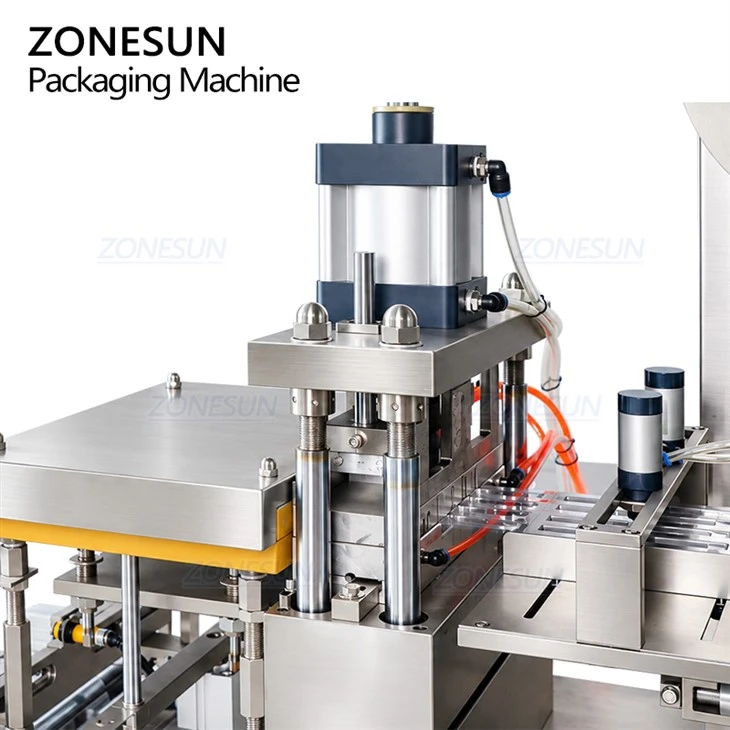

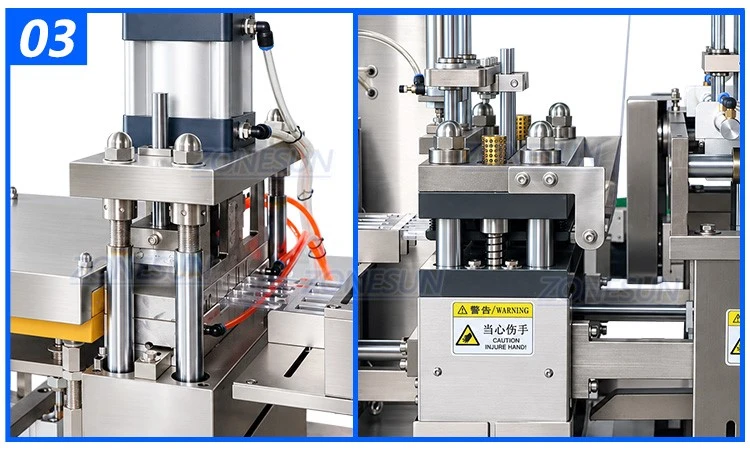

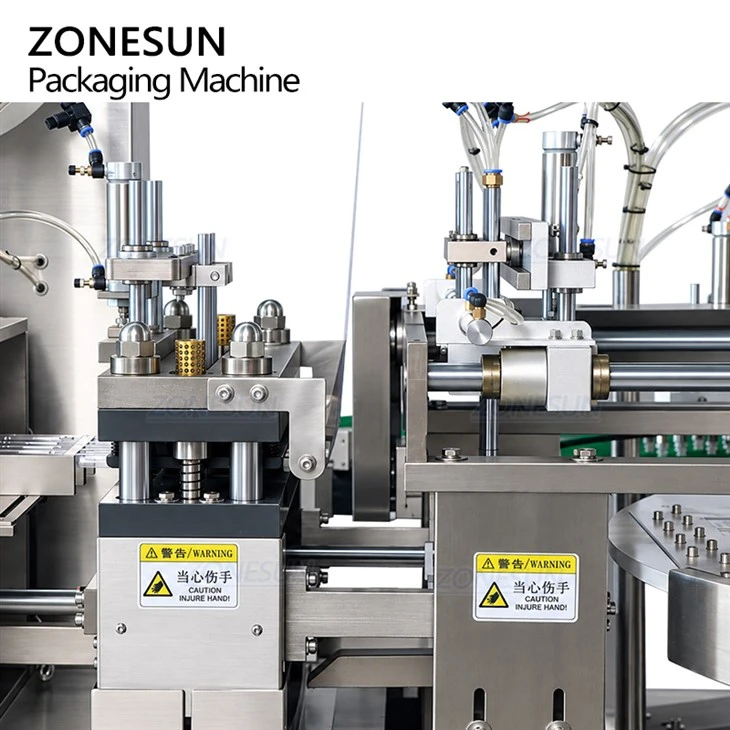

Blister Forming & Cutting Structure

The structure forms plastic blisters by positive- and negative-pressure forming. It die-cuts the formed blisters from the plastic web.

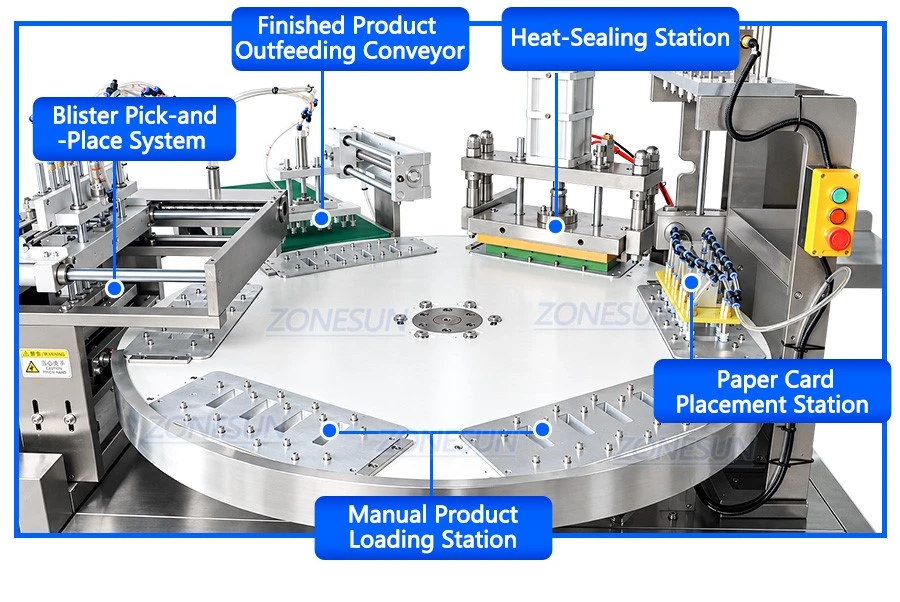

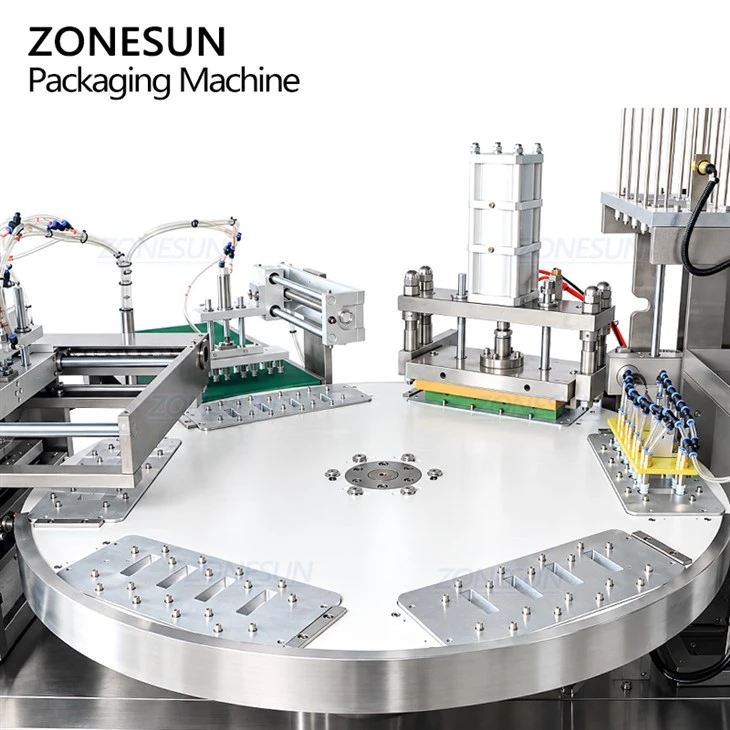

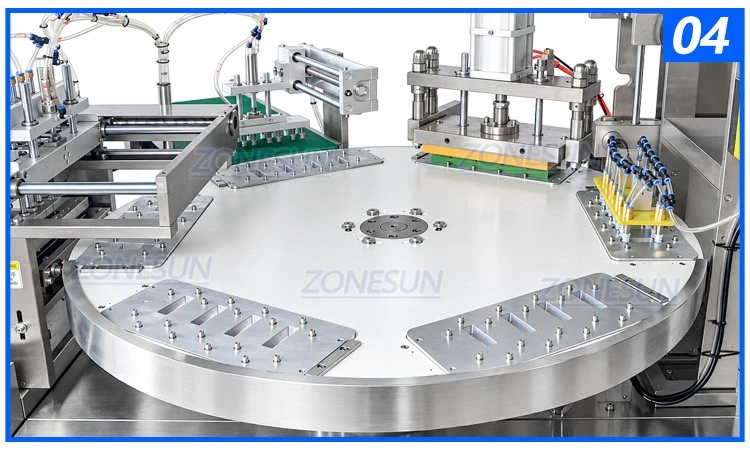

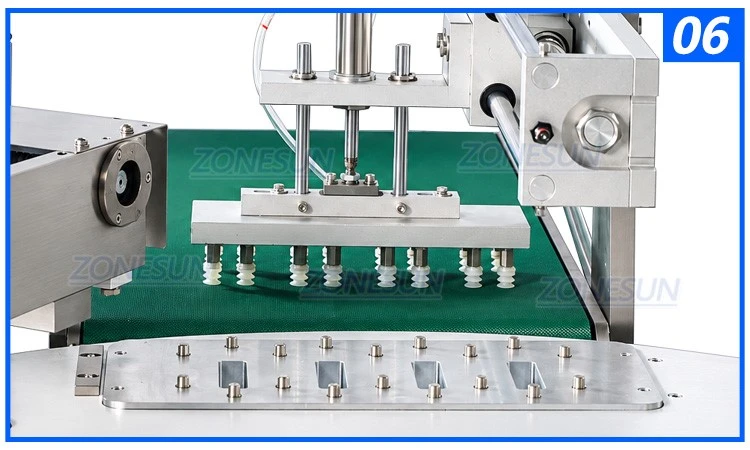

Rotary Indexing System

It moves blister packs through the pick-and-place, manual product loading, card placement, heat-sealing, and outfeeding stations in sequence.

Heat Sealing Structure

Places paper cards onto formed blisters and heat seals them into finished blister card packs. Temperature, pressure, and dwell time can be adjusted independently.

Finished Product Outfeeding Conveyor

The outfeeding conveyor transfers finished blister card packs from the machine for collection or downstream processing.

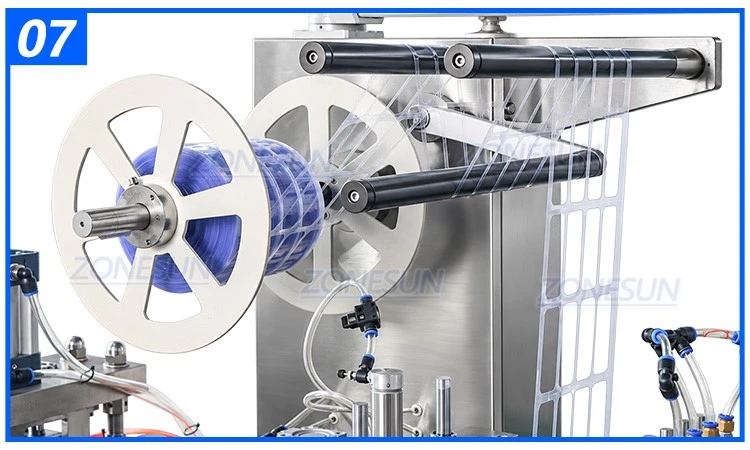

Scrap Film Collection

The scrap film collection system winds and collects remaining plastic film after forming and die cutting.
