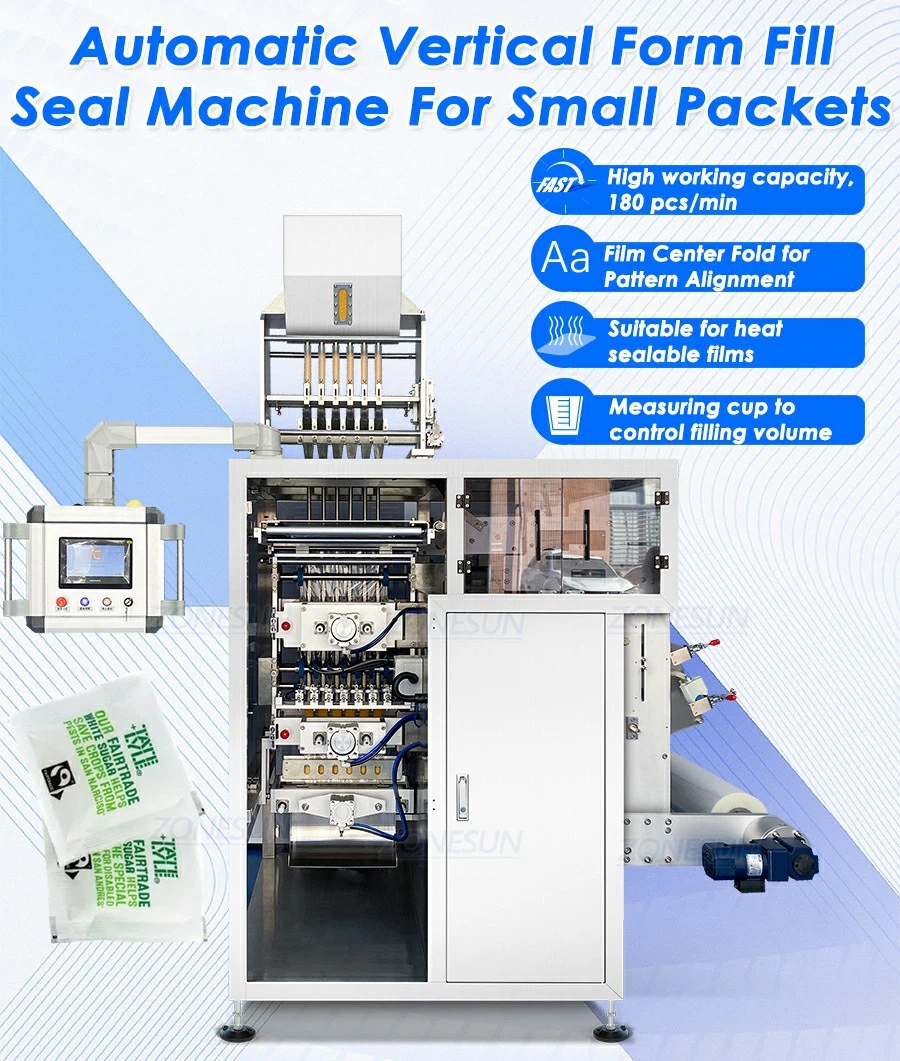

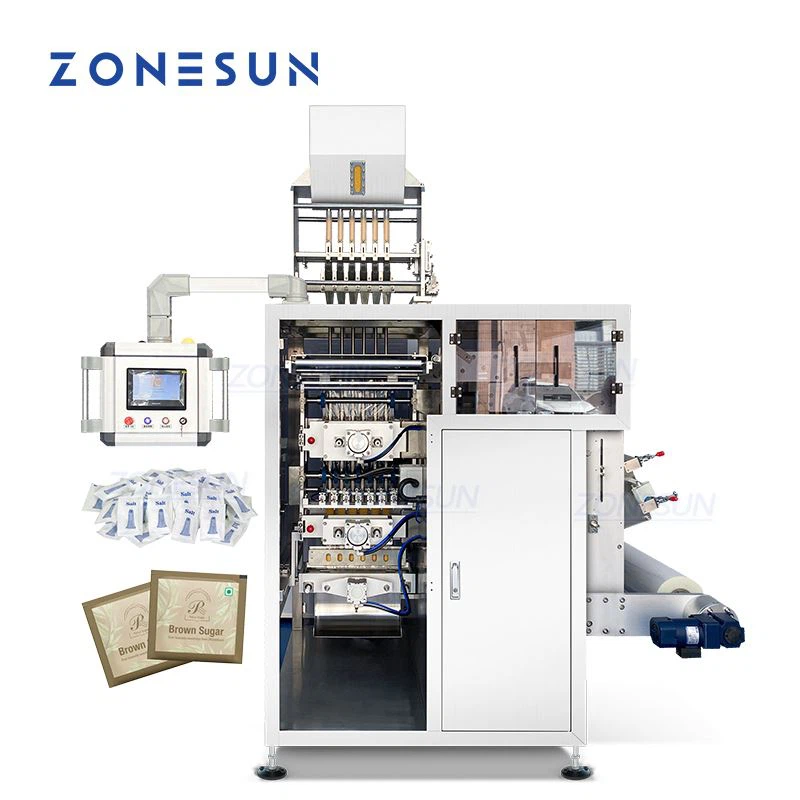

Vertical 6 Lanes Granule Packaging Machine
Machine Introductions:
This machine can realize automatic functions of forming, filling, sealing and cutting small sachets. Equipped with volumetric cups, it can realize quantitative filling of granular products, such as silica gels. The granule packaging machine can be equipped with date coder to print dates or batch numbers on films.
Hot Tags: vertical 6 lanes granule packaging machine, China vertical 6 lanes granule packaging machine manufacturers, suppliers, factory
|
Machine Model |
ZS-FS500K6 |
|
Power Supply |
1N+PE / 50Hz / AC220V / 5.2KW |
|
Number of Lanes |
6 lanes |
|
Measuring Method |
Volumetric cup |
|
Packing Speed |
Around 180 bags/min |
|
Bag Size |
L: 50-160mm*W: 40mm (Customizable) |
|
Film Width Range |
Max. 500 mm |
|
Film Thickness |
0.05-0.1 mm |
|
Machine Dimensions |
L1080*W1442*H1800 mm (Total height including hopper approx. 3000 mm) |
|
Machine Weight |
700 kg |

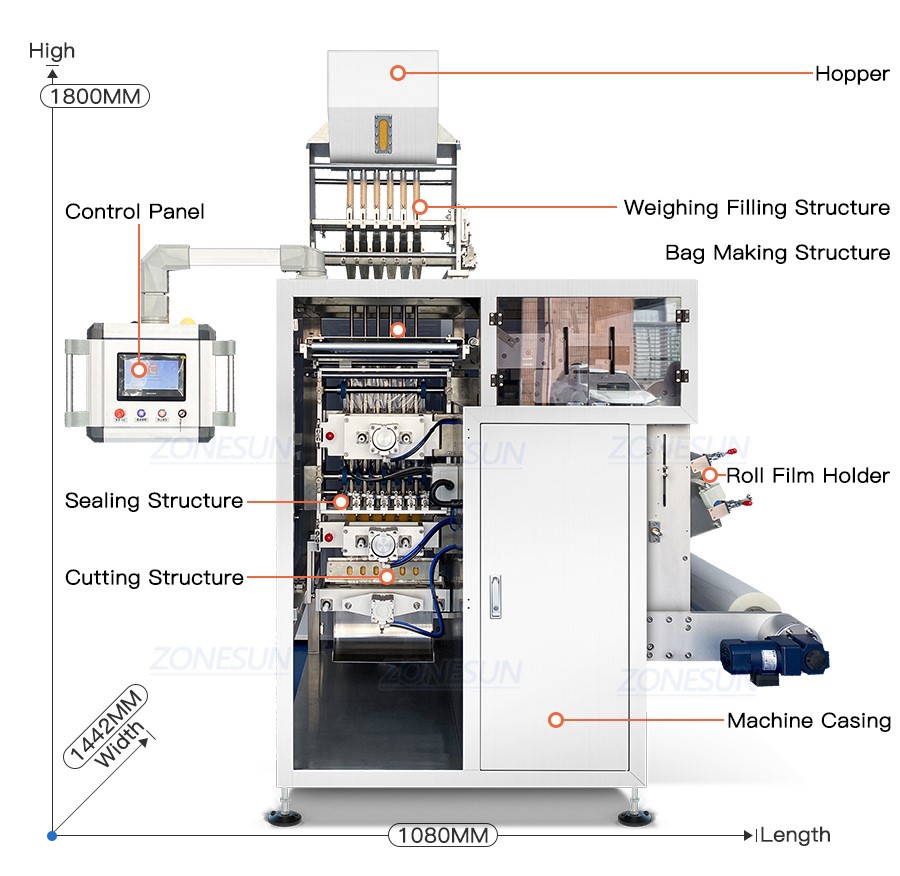

Details
Touchscreen Control Panel
User-friendly control panel allows for easy operation and real-time data display, improving overall efficiency.

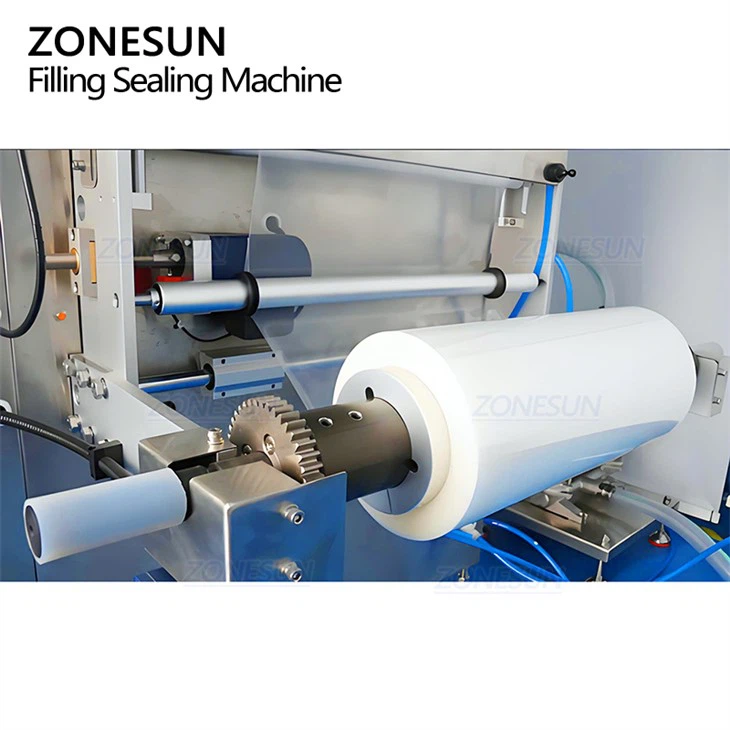

Roll Film Holder
Using servo motor to feed packaging film, it ensures smooth packaging work.

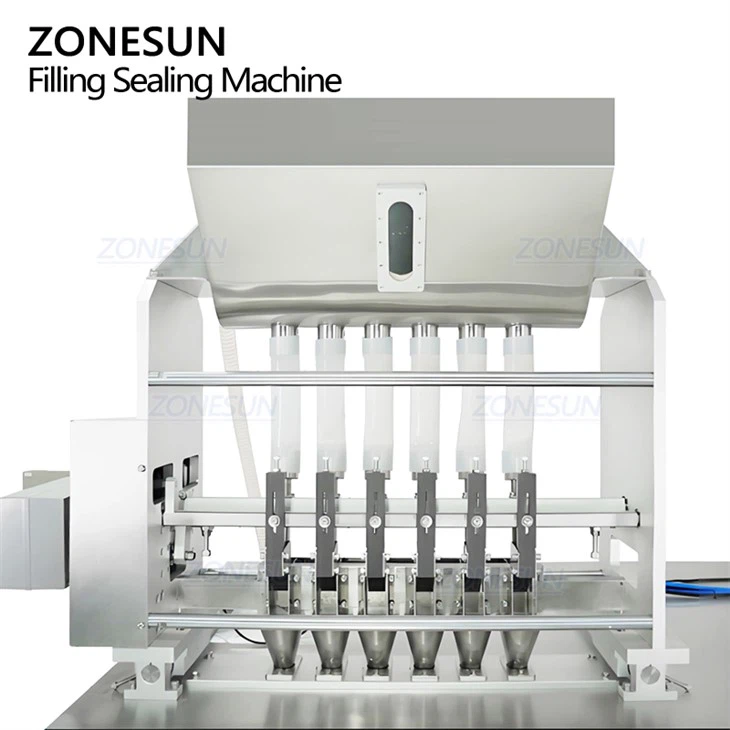

Volumetric Cup Filling System
Ideal for small granules like salt or sugar. It can offer high filling accuracy and stable dosing performance.

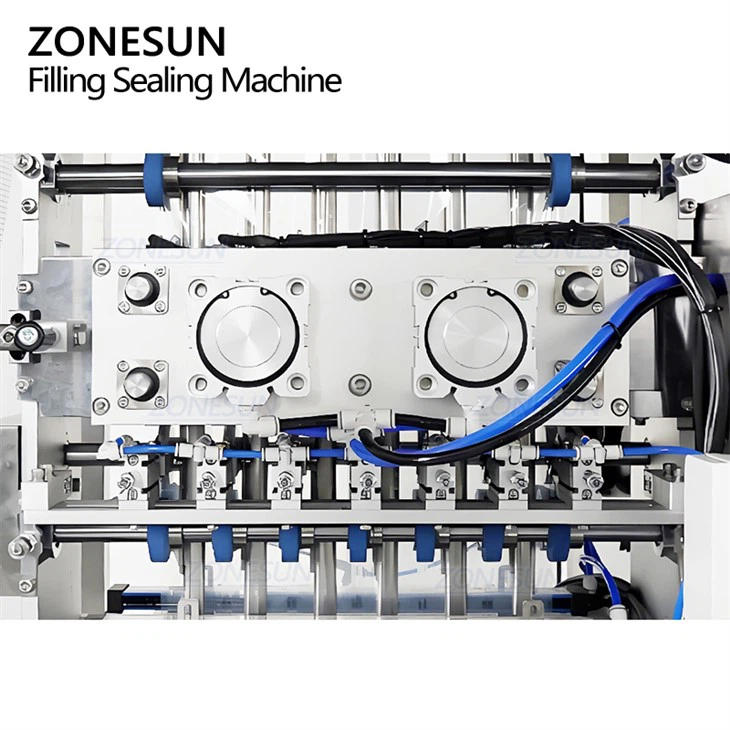

Customizable Sealing Options
The sealing system supports adjustable temperature and can be customized for different sealing styles based on your production needs.
Precise Cutting Structure
It can accurately cut the sachets with clean edges, ensuring uniform bag size.
