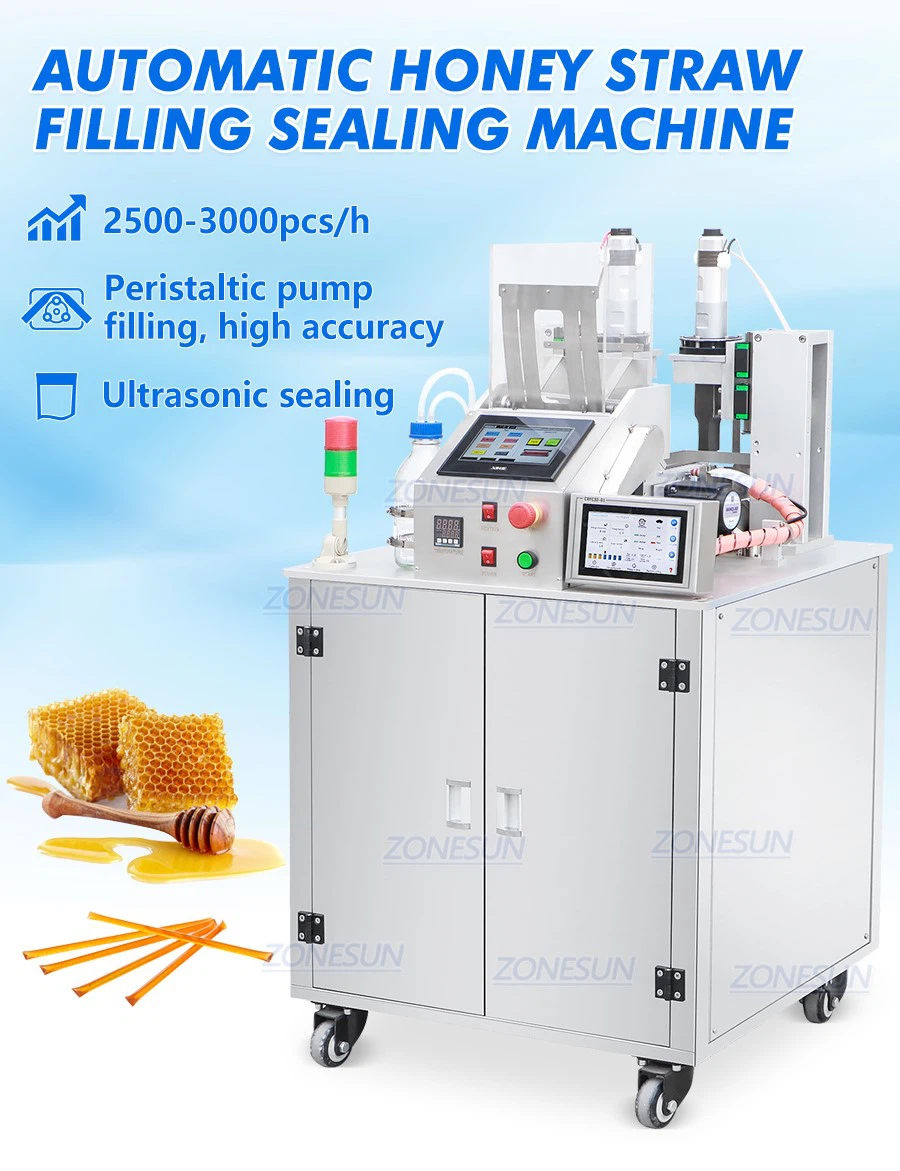

Animal Semen Straw Filling Sealing Machine

Machine Introductions:
This machine performs automatic processes of feeding, filling and sealing straws. Equipped with peristaltic pumps, it can be used for packing animal semen, honey. The semen straw filling sealing machine can be customized according to your production needs.

Hot Tags: animal semen straw filling sealing machine, China animal semen straw filling sealing machine manufacturers, suppliers, factory
|
Machine Model |
ZS-FSHS21 |
|
Voltage |
220V 50-60Hz |
|
Power |
3kW |
|
Working Speed |
About 2500-3000pcs/h (depending on straw size) |
|
Filling Pump |
Peristaltic Pump |
|
Flow Rate of Pump |
0-1140ml/min |
|
Sealing Method |
Ultrasonic Sealing |
|
Ultrasonic Frequency |
20kHz |
|
Original Straw Length |
197mm(can be customized) |
|
Finished Straw Length |
172mm(can be customized) |
|
Machine Size |
About 750*700*1370mm |

Details

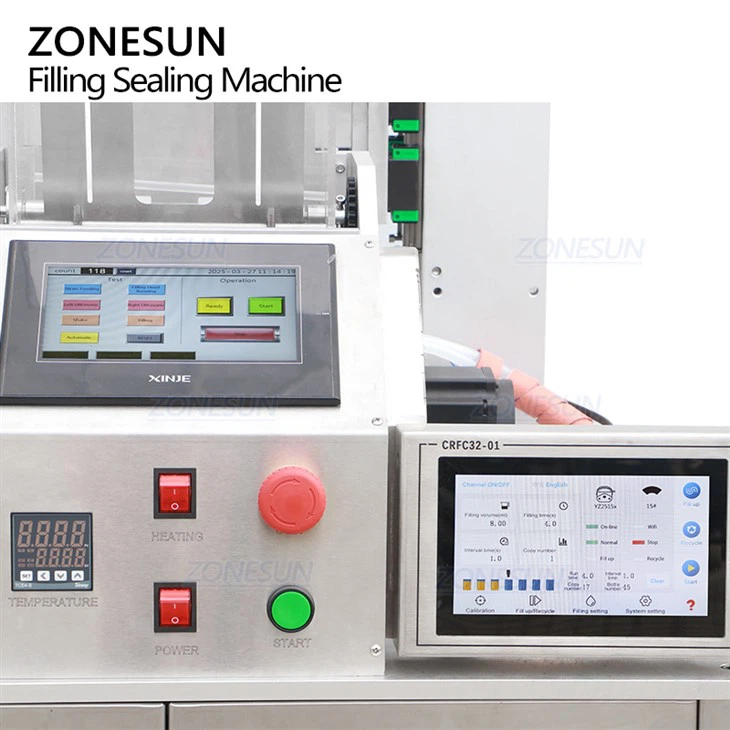

PLC Control Panel
PLC control panel makes parameter setting more intuitive. Multiple languages can be customized as needed.

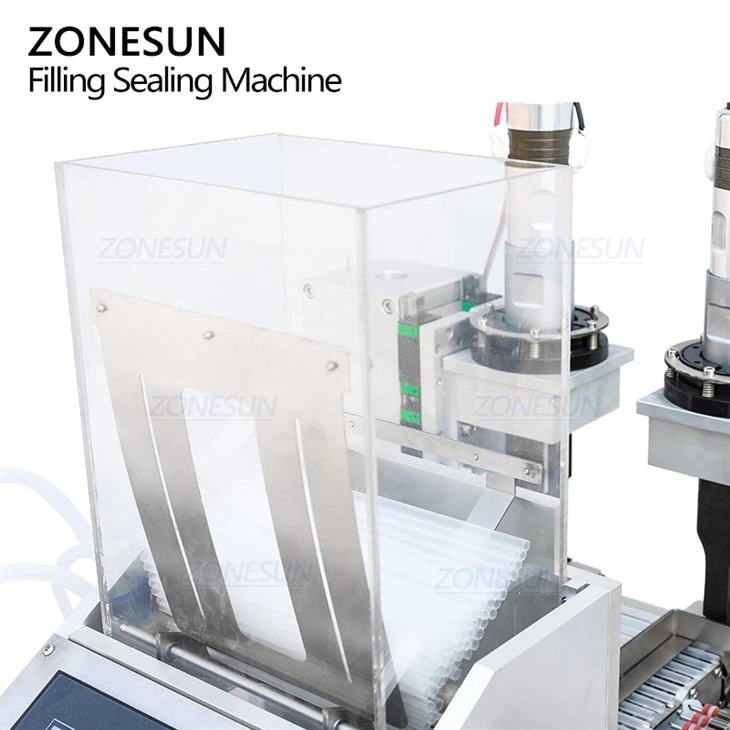

Straw Feeding Structure
The structure can convey straws to filling area automatically. The structure can store about 500 straws at max.

3 Filling Nozzles
With peristaltic pumps, the materials will only flow through the pump, ensuring product cleanliness and avoiding contamination.

Material Sucking Structure
It is designed for sucking back excess materials, ensuring filling accuracy.

Sealing Structure
Adopting ultrasonic sealing method, it can seal semen straws firmly and beautifully, ensuring production quality.
