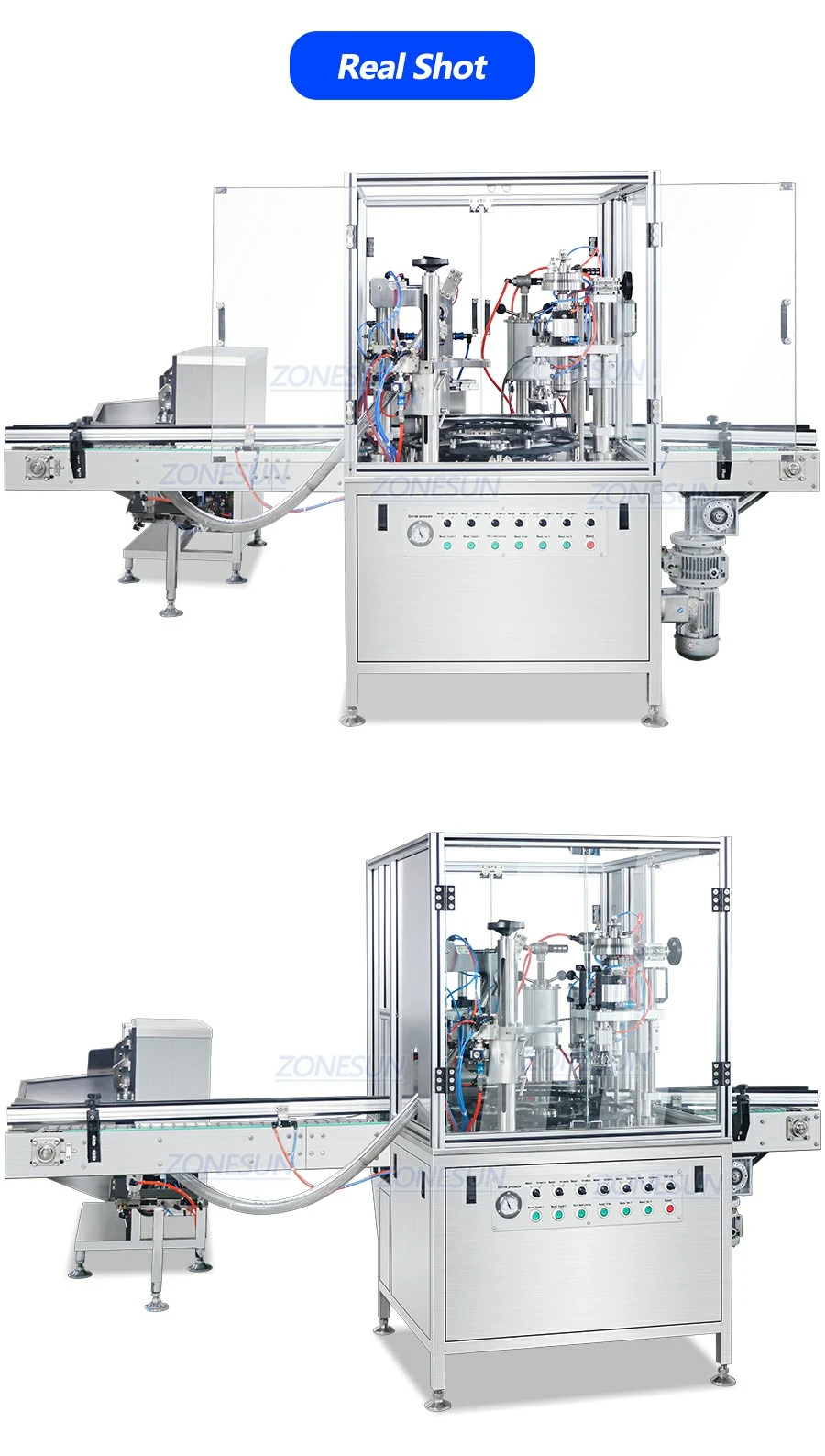

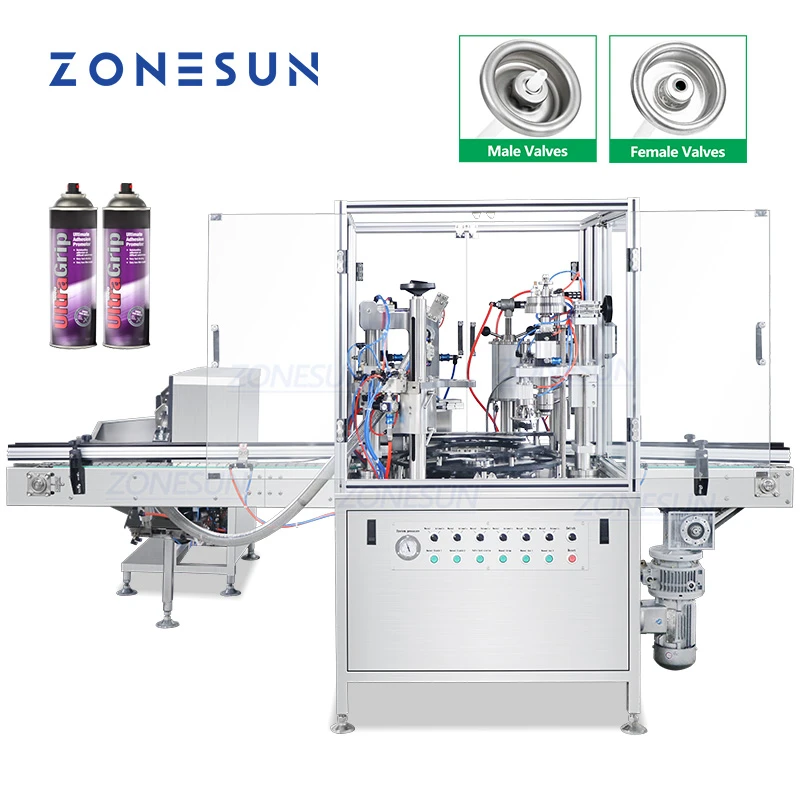

Industrial Aerosol Can Filling And Sealing Machine
Machine Characteristics:
* Integrated Production Process: Combines liquid filling, valve feeding, crimping, and propellant charging within one coordinated system.
* Automated Valve Handling: Reduces the need for operators to position individual valves manually.
* Adjustable Filling Volume: Supports liquid dosing from 10 to 250 ml, with customized configurations available.
* Flexible Container Handling: Accommodates compatible aerosol cans measuring 35-69 mm in diameter and 70-330 mm in height.
* Dedicated Propellant Supply: A booster pump supports the transfer of compatible propellants to the gas-filling system.
Applications:
The ZS-QW1600D is intended for compatible aerosol products across several industries:
·Personal Care: Aerosol sprays and other suitable personal-care formulations.
·Household Products: Air fresheners and compatible household aerosol cleaners.
·Automotive Care: Selected maintenance sprays and automotive-care aerosol products.
·Industrial Chemicals: Compatible industrial aerosol formulations and technical sprays.
Hot Tags: Industrial Aerosol Can Filling And Sealing Machine
|
Machine Model |
ZS-QW1600D |
|
Valve Size |
Customized |
|
Filling Range |
10-250 ml (Customizable) |
|
Working Capacity |
About 30-40 Bottles/min |
|
Working Air Pressure |
0.5-0.8 MPa |
|
Suitable Aerosol Can Diameter |
35-66 mm |
|
Suitable Aerosol Can Height |
70-330 mm |
|
Machine Size |
About 3000*2770*1730 mm |
|
Package Size |
About 1200*1120*1870mm(main machine) About 2050*310*260mm(booster pump) About 1690*960*1200mm(valve feeding machine) |
|
Package Weight |
About 502+26+340=868kg(main machine+booster pump+valve feeding machine) |
Details

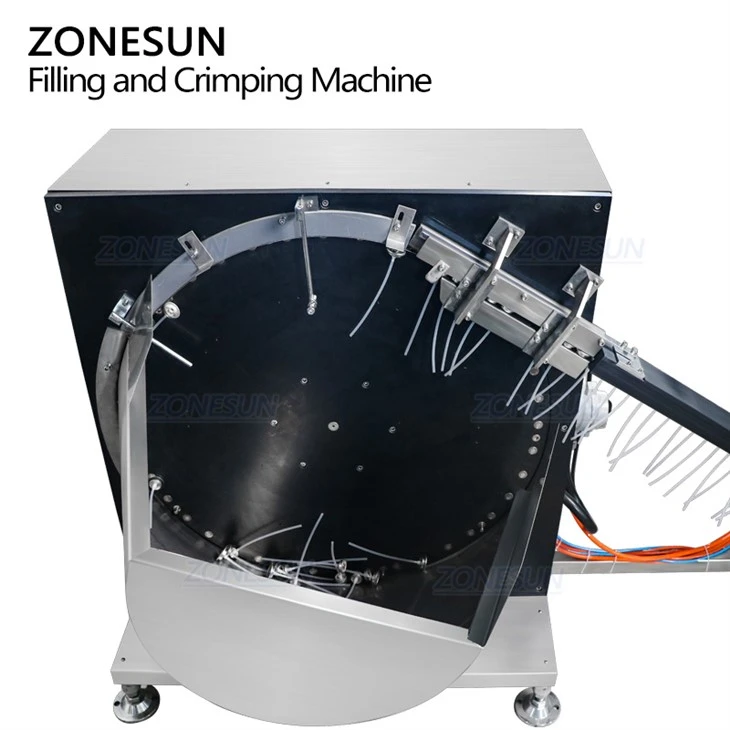

Automatic Valve Sorting Structure
The system combines scraper valve sorting, pneumatic valve separation and rotary insertion to continuously place individual aerosol valves into cans.

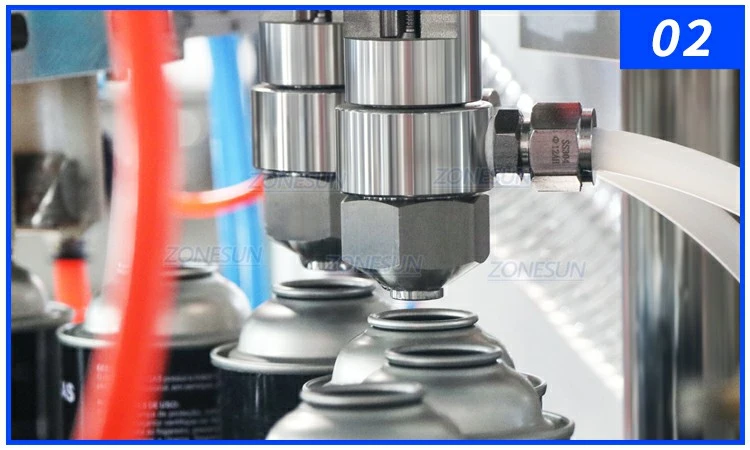

Liquid Filling Structure
The filling volume can be adjusted according to the product specification and is suitable for liquids with suitable flowability used in aerosol production.
Star Wheel Positioning System
The star wheel positions and transfers aerosol cans between working stations and can be replaced when changing to different can diameters.
Valve Crimping Structure
The aerosol valve is pre-crimped to hold it in place, followed by final crimping to complete the sealing process.
Liquefied Propellant Booster Pump
Pressurizes and transfers liquefied propellants such as N₂, CO₂ to the propellant filling structure for stable continuous production.
