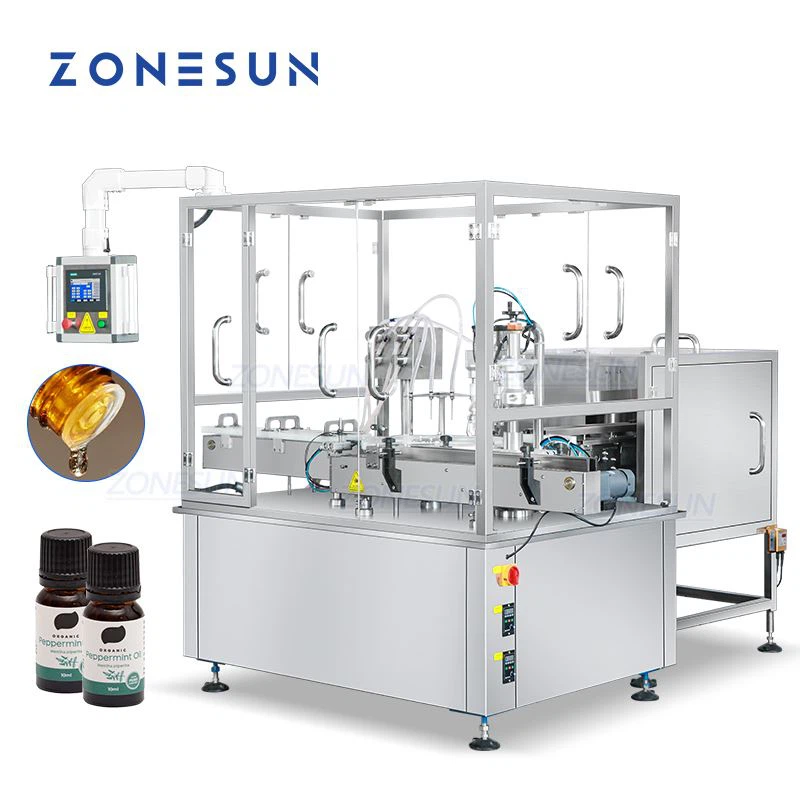

Tea Tree Oil Filling Capping Machine
Machine Introductions:
This tee tree oil filling capping machine combines functions of feeding bottles, filling liquids, feeding caps and screwing caps automatically. It is controlled by cam system, which can reach at speed of 60 bottles per minute. The machine can be connected with bottle labeling machine to realize automatic production.
Hot Tags: tea tree oil filling capping machine, China tea tree oil filling capping machine manufacturers, suppliers, factory
|
Machine Model |
ZS-AFC50 |
|
Voltage |
220V/110V 50-60Hz |
|
Power |
About 3kW/H |
|
Production Speed |
About 30-60 bottles/min(depending on bottle size and filling materials) |
|
Filling Range |
15-100 ml (Can be customized) |
|
Filling Pump |
316 Magnetic Pump |
|
Max Flow Rate |
3L/min(based on water) |
|
Suitable Bottle Size |
Can be customized |
|
Bottle Cap Size |
Can be customized |
|
Air Pressure |
0.6-0.8MPa |
|
Machine Size |
About 2180*1160*1920 mm |
|
Machine Weight |
About 600kg |
|
Package Size |
About 2300*1030*1440mm(Vibratory Bowl Sorter)+2330*1430*2120mm(Main Machine) |
|
Package Weight |
About 415kg(Vibratory Bowl Sorter)+960kg(Main Machine) |
Details

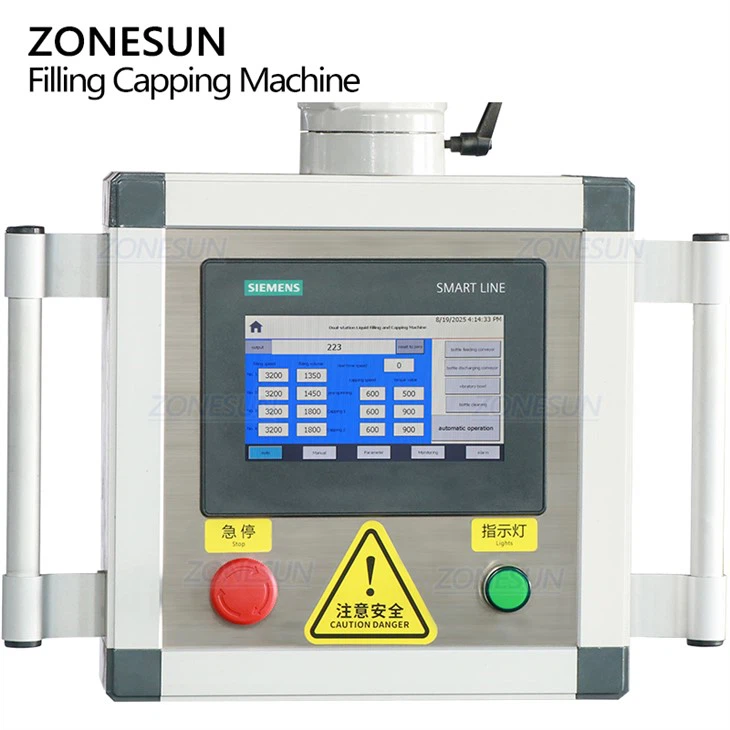

PLC Control Panel
Touchscreen interface, intuitive operation and parameter adjustment.

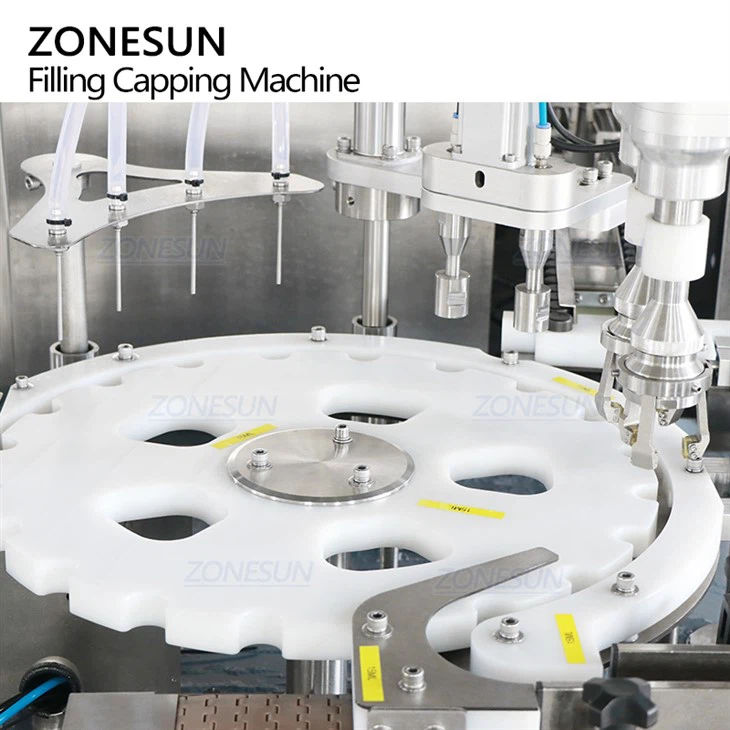

Integrated Rotary Table
Driven by high-precision cam indexer for synchronized motion.

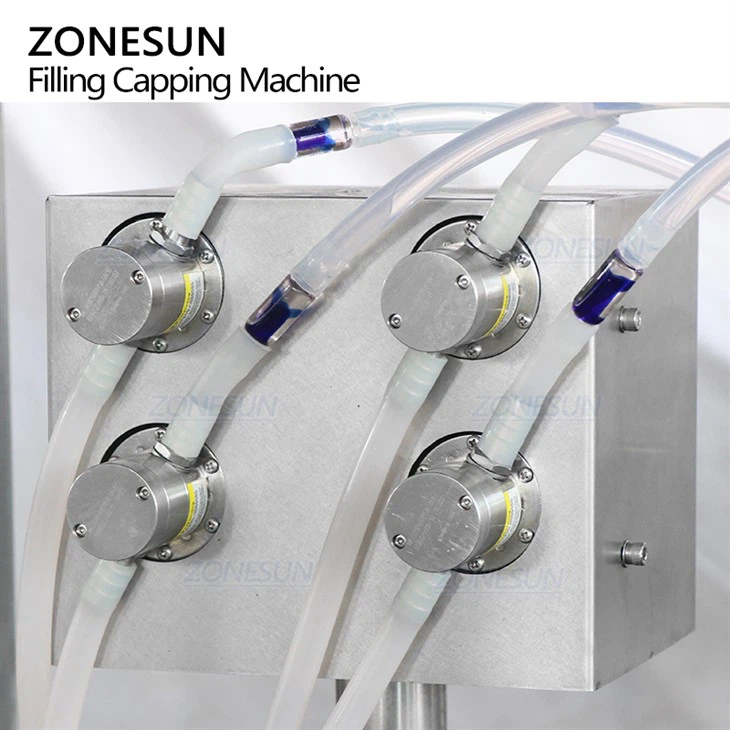

Filling Structure
4 head servo magnetic pumps allow for accurate and clean liquid filling.
Cap Picking & Screwing Structure
Pneumatic pick-and-place system with cam-driven gripper for secure sealing.

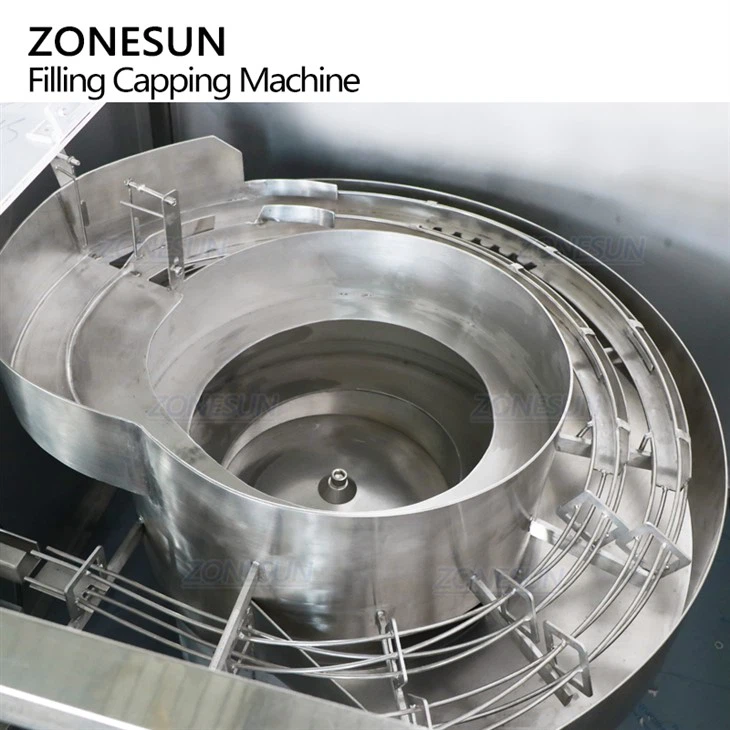

Vibratory Bowl
With soundproof dust cover, it can automatically arrange and feed caps for continuous operation.
Dual-track Bottle Feeding Structure
Improves bottle infeeding speed, filters out bottles with incorrect sizes, ensures steady production flow.
