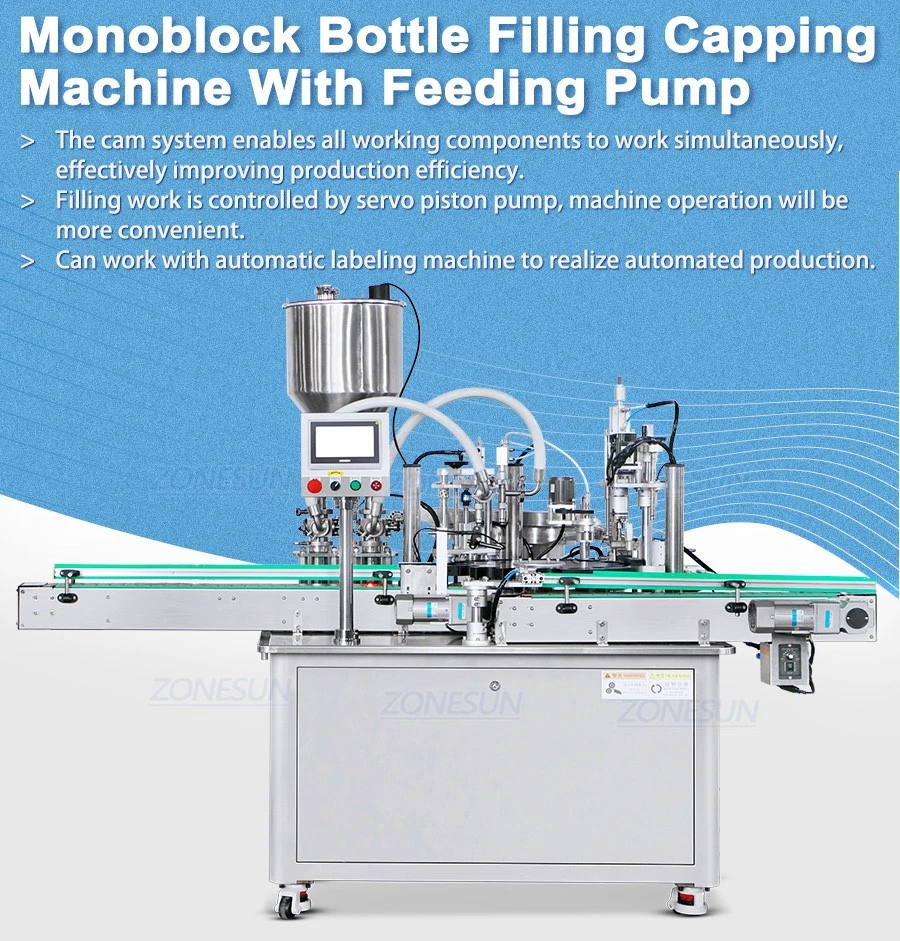

Rotary Automatic Paste Bottle Filling Capping Machine
This machine is controlled by cam system, which can fill and cap small bottles quickly. It can be used for cosmetics, personal care products, food, beverage, medical products. The machine is equipped with PLC system, making it easier to operate the machine. This rotary automatic paste bottle filling capping machine can also work with labeling machine and bottle unscrambler machine to achieve automated production.
Hot Tags: rotary automatic paste bottle filling capping machine, China rotary automatic paste bottle filling capping machine manufacturers, suppliers, factory, round bottle labeling machine price, plastic ampoule filling machine, Nail Gel Sample Bottle Filling Machine, powder quantitative filling machine, pneumatic paste filling machine, shrink sleeve applicator manufacturers
|
Machine model |
ZS-AFC34 |
|
Power |
About 4.2 KW (220V 50Hz) |
|
Cover size |
Customized |
|
Bottle size |
Customized |
|
Filling capacity |
200-300 ml (based on syrup) |
|
Filling pump |
Double-head servo piston filling |
|
Filling accuracy |
About ±2% |
|
Production efficiency |
30BPM(based on filling volume and filling material) |
|
Working air pressure |
0.6-0.8Mpa |
|
Machine size |
About 2300*1500*1700 (mm) |
|
Machine weight |
About 800kg |
Details
Touch screen interfaces allow for easy customization of controls and settings, making it simple to adjust parameters for different products and production requirements. This flexibility enhances the versatility of the filling and capping machine.
Equipped with pneumatic anti-dripping filling nozzles, these are designed to prevent dripping of product after filling. This is particularly important for liquids with high viscosity or foaming characteristics, as dripping can lead to product waste, messy production environments, and potential contamination of packaging.
Using air nozzle to pass allows for rapid movement of the caps, improves working efficiency. Servo motor control the capping work, this machine has higher capping accuracy.
The star wheel provides precise alignment and positioning of containers and caps as they move through the filling and capping process. This ensures that each container is correctly oriented and secured before filling or capping, minimizing the risk of misalignment or errors.
The speed and amplitude of the vibrations in the bowl sorter can be adjusted to control the rate at which caps are fed into the capping machine. This allows operators to match the feed rate of caps with the production speed of the filling and capping machine, optimizing efficiency and preventing overloading or underfeeding.
