Liquid Vial Filling Capping Labeling Machine
Machine Introductions:

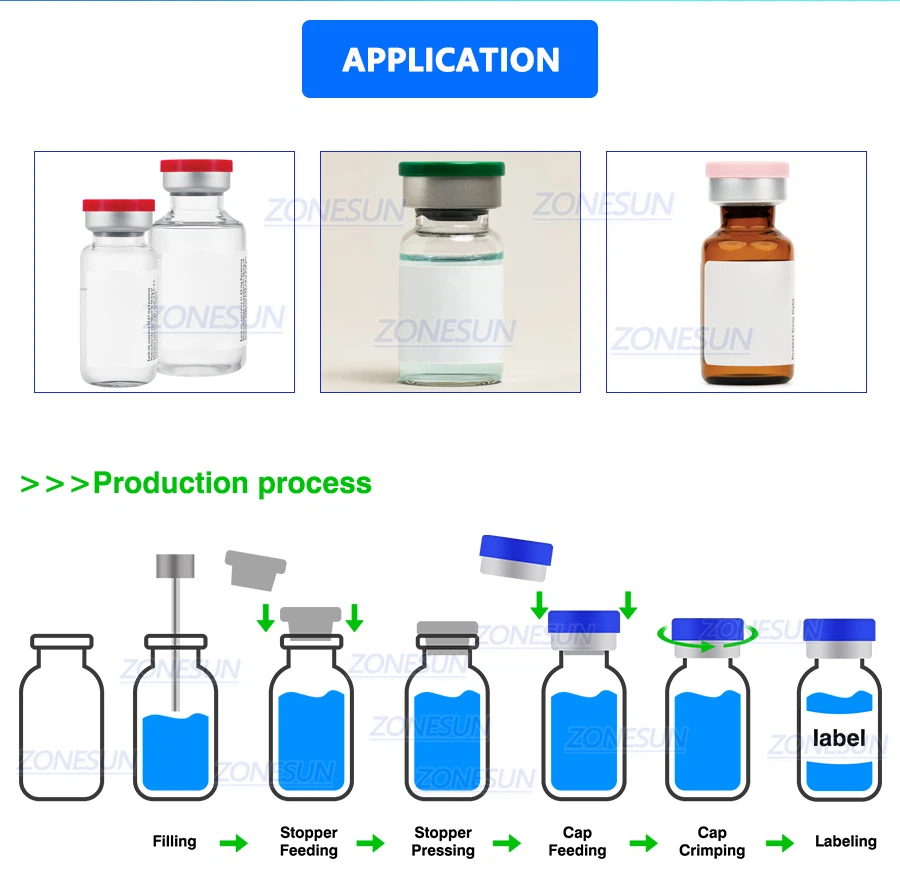

This production line is made up of vial filling capping machine with laminar flow hood, and vial labeling machine. The vial filling stopper and capping structure is controlled by cam system, which can realize continuous motions and improve working speed. The liquid vial filling capping labeling machine can be customized to meet your production requirements.
Hot Tags: liquid vial filling capping labeling machine, China liquid vial filling capping labeling machine manufacturers, suppliers, factory
>Filling Capping Machine
|
Machine Model |
ZS-AFC39 |
|
Voltage |
110/220V 50-60 HZ |
|
Power |
＜3000W/h |
|
Working Capacity |
About 30-60BPM(based on filling volume) |
|
Filling Pump |
Peristaltic pump |
|
Filling Nozzle quantity |
4 |
|
Filling Range |
Customized |
|
Filling Accuracy |
±3% |
|
Machine size |
About 2330*1400*2100mm(L*W*H) |
|
Machine weight |
About 900kg |
|
Package size |
About 2530*1700*1930mm(Main Machine) |
|
Package weight |
About 1407kg(Main Machine)+418kg(Laminar Flow Hood)=1825kg |
>Labeling Machine
|
Machine Model |
ZS-TB821 |
|
Voltage |
220V/110V 50-60Hz |
|
Power |
570W |
|
Labeling Accuracy |
±1.0mm |
|
Labeling Speed |
About 40-120 bottles/min (depending on label size) |
|
Applicable Product Size |
φ25-φ120mm (Round bottle) |
|
Label Size |
(W)20-300mm*(H)20-95mm |
|
Label Roll ID |
φ76mm |
|
Label Roll OD |
φ300mm |
|
Machine Size |
About 2040*1180*1370mm(L*W*H) |
Details
PLC Control Panel
PLC panel provides intuitive parameter setting and real-time operation monitoring. Multiple languages can be customized as your need.
Integrated Filling Capping Module
Combines dosing, stoppering, and capping into a compact rotary system. It is driven by cam system, which can realize continuous motions.
Vibratory Bowl Feeding System
Can automatically orient and feed stoppers and caps for continuous production.
Laminar Flow Hood
Delivers clean airflow over critical areas to protect product quality.
Dust-Protection Enclosure
Reduces external contamination and improves overall line cleanliness.

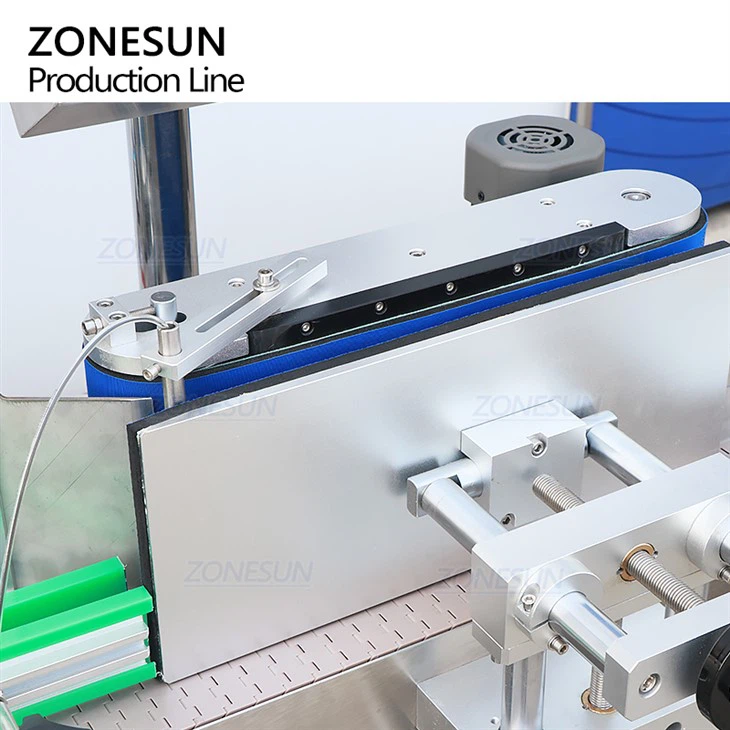

Side-belt Labeling Station
Applies high-speed wrap-around labels to small vials with precision.

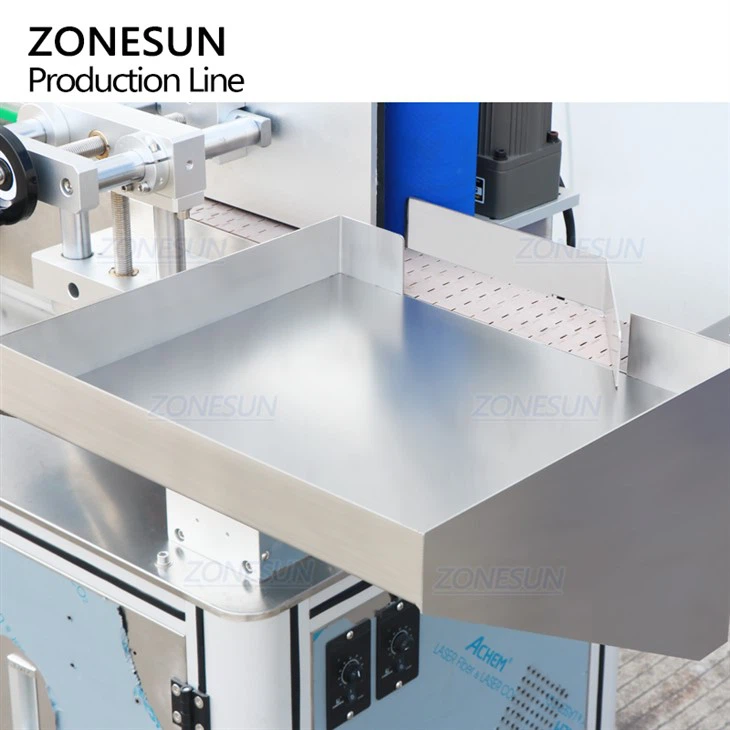

Collection Tray
Gathers finished vials for easy packing and downstream handling.
