Desktop Automatic Wine Filling Line
·Automatic 4 Heads Liquid Filling Machine
·Automatic Bottle Corking Machine With Cork Feeder
·Automatic Round Bottle Labeling Machine
This production line has functions of filling liquid, feeding corks, pressing corks and labeling bottles automatically. It can be used for packing wine, gin, vinegar, whiskey, etc. Made in tabletop design, this production line can help to save working space. The desktop automatic wine filling line can be customized according to your production need.
Hot Tags: desktop automatic wine filling line, China desktop automatic wine filling line manufacturers, suppliers, factory
>Filling Machine
|
Machine model |
ZS-DTMP4AL |
|
Power supply |
110/220V 50-60HZ |
|
Maximum flow velocity |
6000ml/min (Each nozzle and base on water) |
|
Working speed |
20-30 bottles/min |
|
Air pressure |
0.3-0.4MPa |
|
Filling accuracy |
≤±1% (For water) |
|
Diameter of Filling Nozzle |
6/8mm |
|
Delay Range |
0.01-999.9s |
|
Count Range |
1-99999 Times |
|
Filling Volume |
3-1000ml |
|
Size of air compressor connector |
OD8mm |
|
Bottle height |
＜220mm(Can be customized,max height 300mm) |
>Vibratory Bowl
|
Machine Power |
110/220V 50-60HZ |
|
Material |
Stainless Steel |
|
Suitable Caps Diameter |
Customized |
|
Working Speed |
Customized |
|
Machine Size |
Customized |
>Capping Machine
|
Machine model |
ZS-XG1870D2 |
|
Working voltage |
AC220V/110V 50-60HZ |
|
Bottle height |
60-270mm |
|
Bottle caps diameter |
customize(≤130mm) |
|
Working speed |
20-40 bottles/minute(depending on bottle and caps) |
|
Working pressure |
0.4-0.6MPa |
|
Size of air compressor connector |
OD 8mm |
|
Conveyor length |
115mm(W)*1020mm(L) |
|
Package size |
About 1240*1120*1250mm(capping machine) About 610*620*1450mm(vibrating feeder) |
|
Package weight |
About 148kg (capping machine) About 96kg (vibrating feeder) |
>Labeling Machine
|
Machine model |
ZS-TB500 |
|
Voltage |
110V- 60HZ / 220V-50HZ |
|
Working speed |
About 20-50bottles/min |
|
Suitable labeling size |
15-140mm (W) X 25-300mm (L) |
|
Roll inside diameter (mm) |
φ76mm |
|
Roll outside diameter (mm) |
φ350mm |
|
Suitable bottle diameter |
≤100mm |
|
Package size |
About 1310*805*780mm |
|
Package weight |
About 124kg |
Details

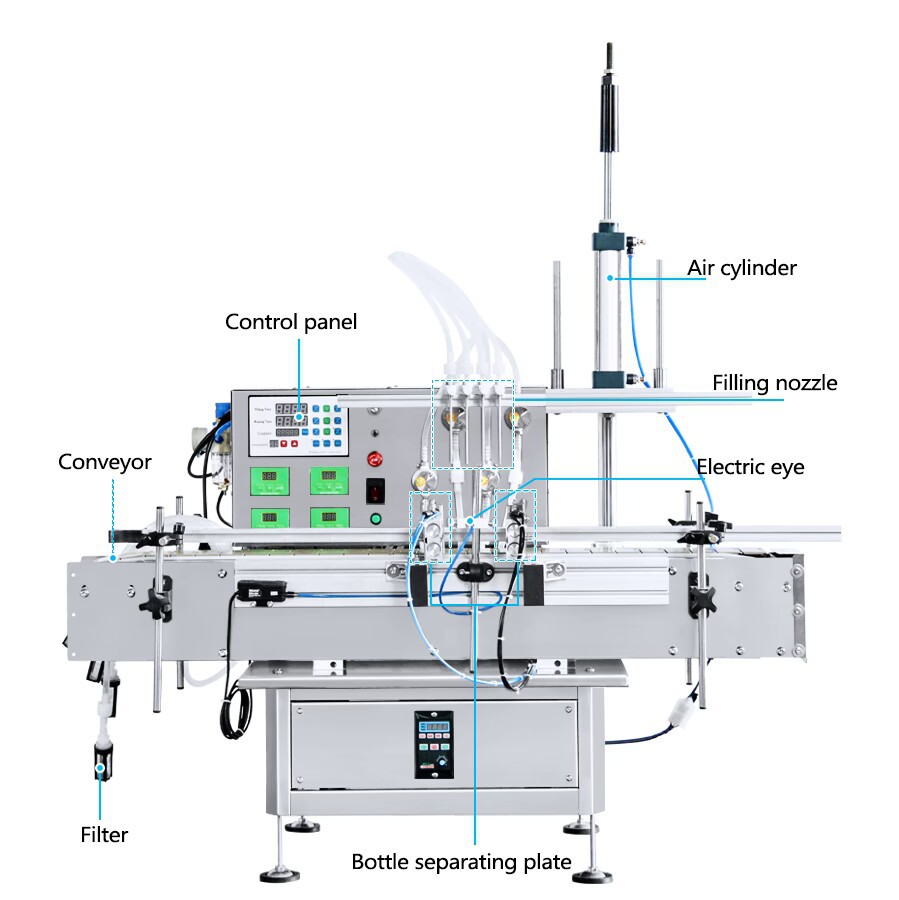

Use large air cylinder to control diving nozzles, can control filling nozzle to lift up and down, this can prevent liquid from spraying out. We can customize the machine with different numbers of filling nozzles.
Magnetic pump filling machine can fill liquid accurately and fast, which can help you improve working efficiency. It is also corrosion-resistant,this makes it can work for a long time. Each pump can work separately.
This desktop automatic wine filling line is equipped with cap vibrating bowl sorter, which can arrange bottle caps and make the production be in order. This should be customized according to your material, this ensures it can work with your caps well.
The capping chuck will start to work automatically once it detect the bottle, it should be customized according to bottle cap size. This is suitable for cap pressing,it can help you save labor.
These three labeling wheels make bottles rotating and then finish labeling, ensuring that there is no bubbles under labels and improve the labeling effect. This machine is also not only suitable for single side but also the double side labeling.
The electric eye can detect bottles once they pass by. The regulator is designed to adjust the sensitivity of the electric eyes, prevent from missing bottles.
