Automatic Peppermint Oil Filling Capping Labeling Machine
·Automatic 4 Heads Peppermint Oil Filling Machine
·Automatic Peppermint Oil Bottle Capping Machine
·Automatic Round Bottle Labeling Machine
-Description

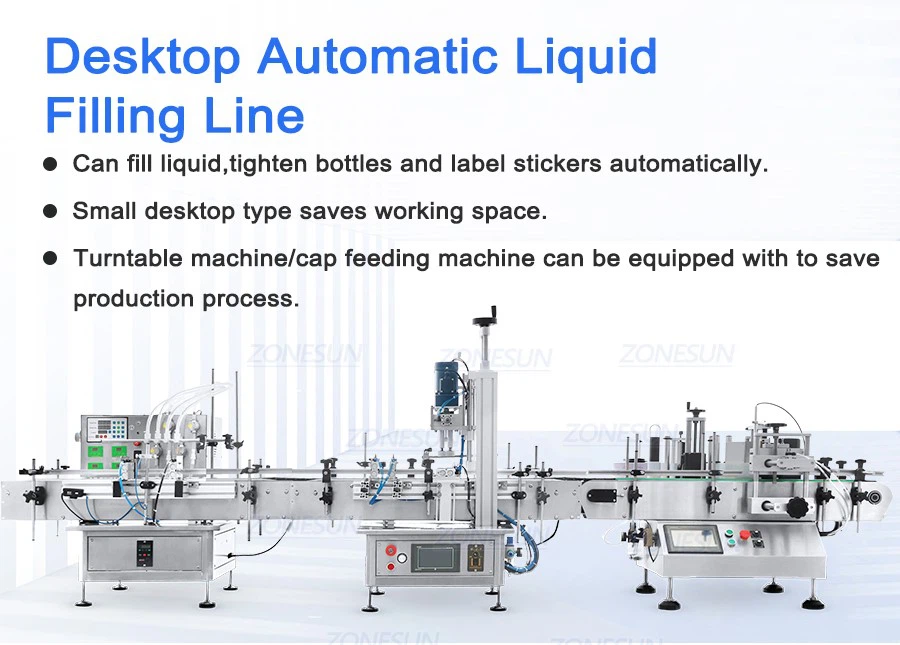

This desktop production line is suitable for packing cosmetic liquid, essential oil, essence, makeup remover, etc. It has functions of filling liquid, tightening caps and labeling round bottles. Packing speed is 20-30 bottles/min. The machine can be used for single side or double sides or wrap around labeling on round bottles. This automatic peppermint oil filling capping labeling machine can be customized to suit for your production need.
Hot Tags: automatic peppermint oil filling capping labeling machine, China automatic peppermint oil filling capping labeling machine manufacturers, suppliers, factory, Automatic Production Line, flour packing machine, powder filling line, jam filling machine, olive oil labeling machine, dry syrup powder filling line
>Filling Machine
|
Machine Model |
ZS-DTMP4Y |
|
Power Supply |
110/220V 50-60HZ 300W |
|
Pump Material |
316 Stainless Steel |
|
Maximum Flow Velocity |
6L/min (Each nozzle and based on water) |
|
Working Speed |
20-30 bottles/min |
|
Air Pressure |
0.3-0.4mpa |
|
Filling Accuracy |
≤±1%( for water) |
|
Dimension of Filling Nozzle |
Standard 8mm and 6mm |
|
Delay Range |
0.01s-999.9s |
|
Count Range |
1-99999 times |
|
Size of Air Compressor Connector |
OD 6/8mm |
|
Package Size |
About 1150*650*820mm |
|
Net Weight/Gross Weight |
About 59kg/89kg |
>Capping Machine
|
Machine Model |
ZS-XG1870 |
|
Applicable Bottle Height |
60-270mm |
|
Applicable Bottle Caps Diameter |
18-70mm |
|
Working Speed |
20-40 bottles/minute(depending on bottle and caps) |
|
Working Voltage |
AC220V/110V 50-60HZ |
|
Working Pressure |
0.4-0.6MPa |
|
Size of Air Compressor Connector |
OD 8mm |
|
Conveyor Length |
1117mm |
|
Machine Size |
About 1120* 580* 1110mm |
|
Package Size |
About 1160*610*1140mm |
|
Net Weight/Gross Weight |
About 65.5kg/97.5kg |
>Labeling Machine
|
Machine Model |
ZS-TB500 |
|
Voltage |
110V-60HZ/ 220V-50HZ |
|
Working Speed |
About 20-50bottles/min |
|
Suitable Labeling Size |
15-140mm(W)*25-300mm (L) |
|
Roll Inside Diameter |
φ76mm |
|
Roll Outside Diameter |
φ350mm |
|
Applicable Bottle Diameter |
≤100mm |
|
Size of Air Compressor Connector |
OD 8mm |
|
Package Size |
About 1290*860*900mm |
|
Net Weight/Gross Weight |
About 95.5kg/130kg |
Details
There are 4 filling nozzles and each one of them can be controlled separately. The height of filling nozzle can be changed by adjusting bracket height.
Made of high quality stainless steel magnetic pump, this kind of pump requires little maintenance and has the advantage of high accuracy which makes it good for filling solution, essential oil,ink etc.
This machine is with electric eyes, which can prevent from missing bottles, reducing the working error,the sensitivity of the electric eye can be adjusted by the black machine part during working.
Designed for various shapes of bottle caps, like spray bottles, beverage bottle caps. It will press the bottle caps and tight it automatically. Improve working efficiency greatly. Cap feeding machine is optional for improving working efficiency.

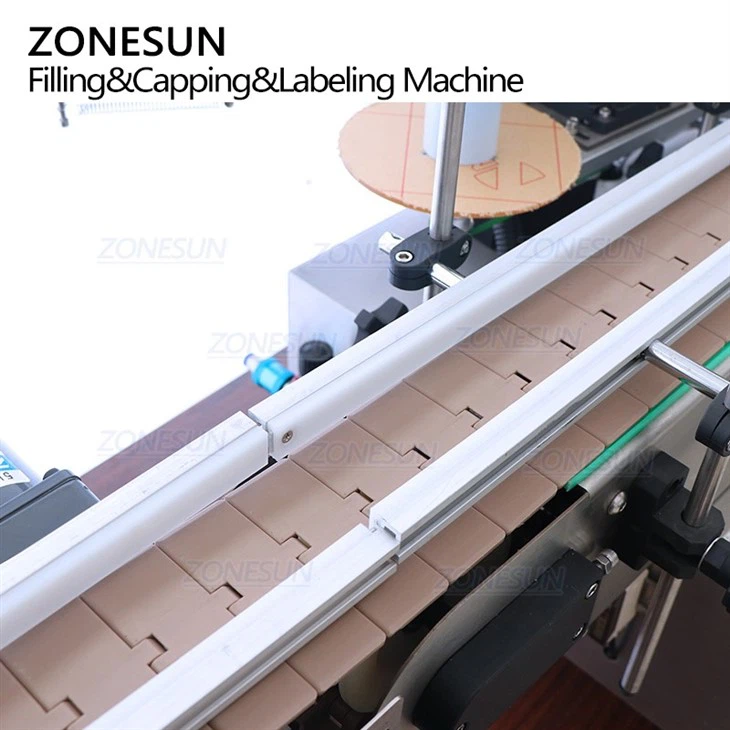

The feeding inlet can be adjusted according to bottle diameter. This machine is suitable for φ≤100mm bottles. The working speed of the conveyor can be adjusted as operators' need. This help to improve working efficiency.
These three labeling wheels make bottles rotating and then finish labeling, ensuring that there is no bubbles under labels. Ensure the labeling effect. This is suitable for double side labeling.
