Angle Neck Chemical Filling Capping Machine
Product Introduction:
This angle neck chemical filling capping machine has functions of filling liquid, feeding stoppers and caps, and capping bottles automatically. The machine is suitable for packing household chemical products, corrosive liquid. It can also work with labeling machine to realize automatic production.
Hot Tags: angle neck chemical filling capping machine, China angle neck chemical filling capping machine manufacturers, suppliers, factory
>Angle Neck Chemical Filling Machine
|
Machine model |
ZS-YTCR16C |
|
Machine voltage |
220/380V 50-60HZ 2.4KW |
|
Filling volume |
10ml-5L(customizable) |
|
Suitable bottle size |
Customizable |
|
Suitable bottle neck |
φ30mm+ |
|
Filling nozzle quantity |
4/6/8/10/12/14/16(customizable) |
|
Working capacity |
3200BPH(based on 500ml) |
|
Filling accuracy |
±0.3% |
|
Machine main material |
PP |
|
Air pressure |
0.6-0.8MPa |
|
Machine size |
About 2100*1100*800mm |
|
Machine weight |
About 800kg |
>Angle Neck Chemical Capping Machine
|
Machine model |
ZS-XG25V |
|
Machine voltage |
220/380V 50-60HZ 2.4KW |
|
Suitable bottle size |
customizable |
|
Working capacity |
50-80BPH |
|
Suitable bottle neck |
φ30mm+ |
|
Machine main material |
PP |
|
Air pressure |
0.6-0.8MPa |
|
Machine size |
About 1700*1300*1650mm |
|
Machine weight |
About 500kg |
Details
PLC Operation Panel
Through PLC operation panel, operator can set and adjust technical parameters easily. The panel's language can be customized as your need.

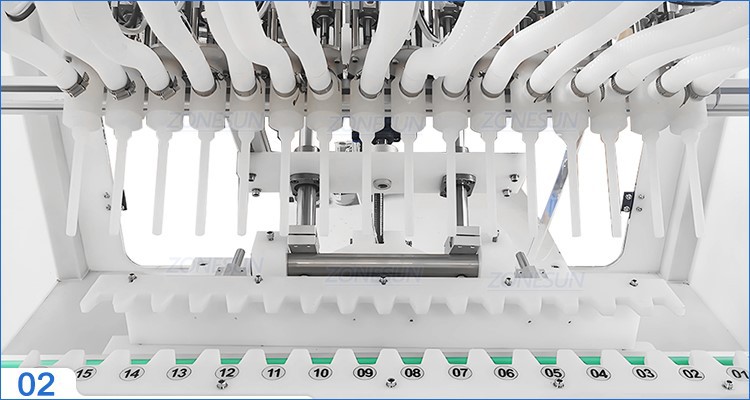

Filling Heads
It is designed for filling liquid into angle neck bottles. The number of filling heads can be customized according to your production need.
Anti-corrosive Conveyor Belt
The size of conveyor belt can be customized as your production need.
Rotary Plate
The rotary plate is customized based on your product size. This machine combines functions of pressing stoppers, feeding caps and tightening caps, which is space-saving.
