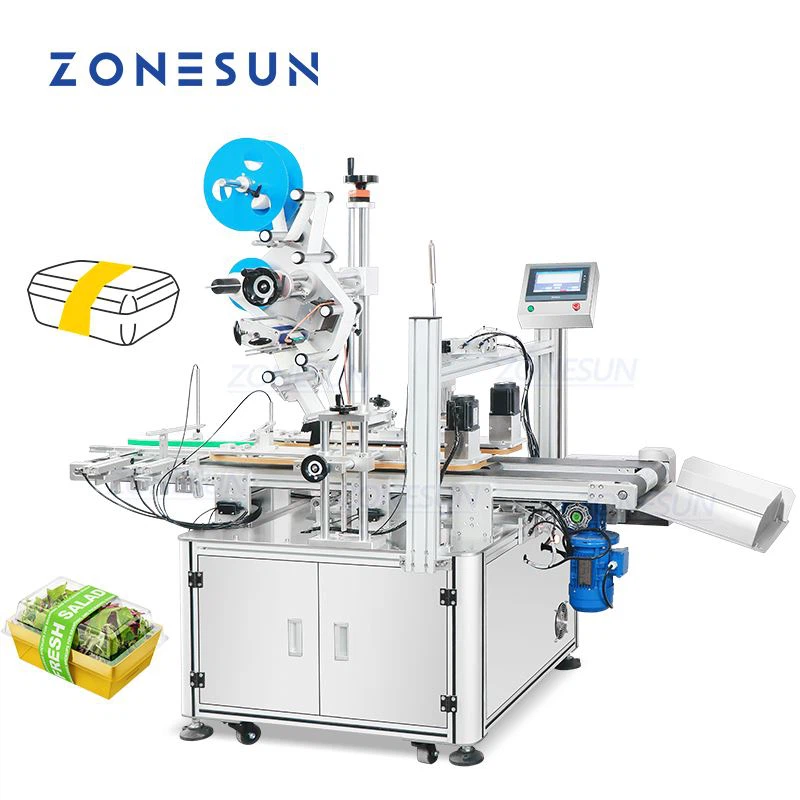

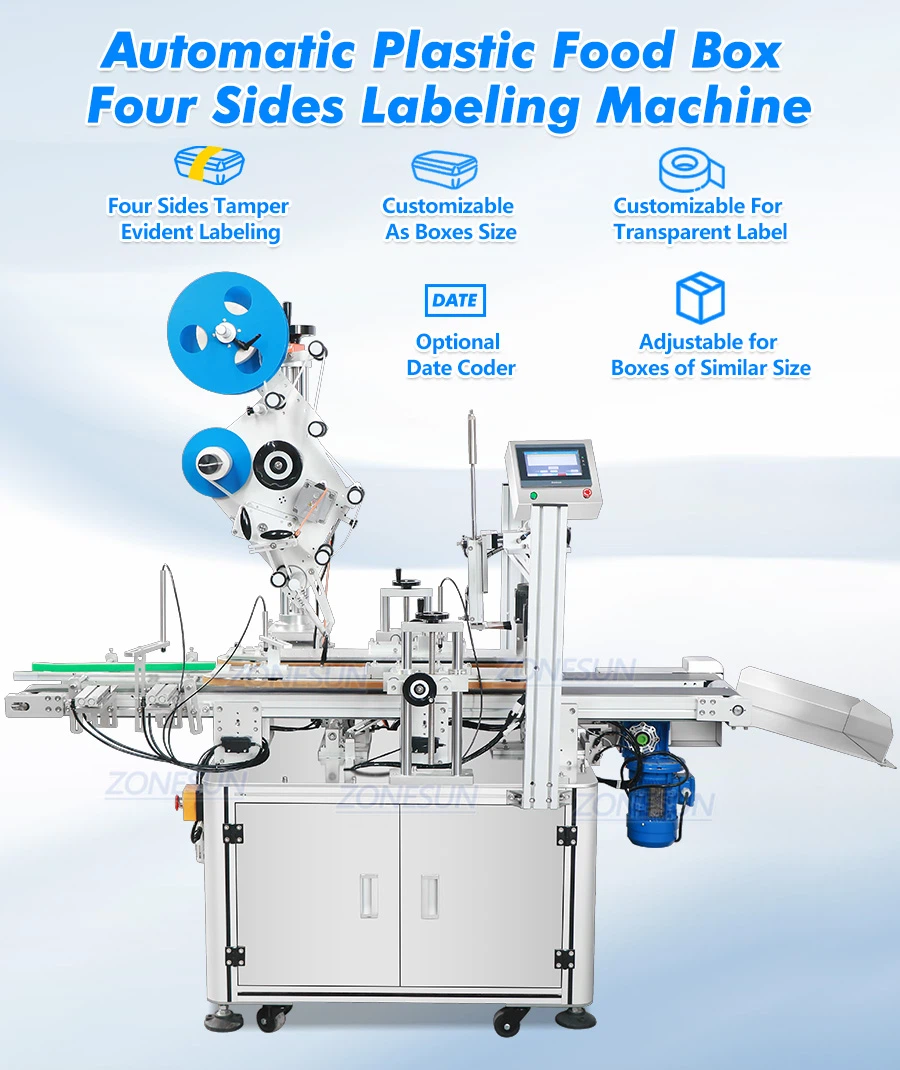

Automatic Wrap Labeler For Food Boxes

Machine Introductions:
This automatic wrap labeler is suitable for tamper evident labeling of food boxes. Equipped with PLC panel, it is convenient to adjust machine settings. The machine can also be equipped with date coder to realize automatic printing of dates or batch numbers. Please feel free to contact us if you need it.

Hot Tags: automatic wrap labeler for food boxes, China automatic wrap labeler for food boxes manufacturers, suppliers, factory
|
Machine Model |
ZS-TB831F |
|
Power Supply |
220V 50HZ |
|
Working Speed |
30-35pcs/min (depending on product and label size) |
|
Labeling Accuracy |
±2mm (excluding product and label error) |
|
Suitable Product Size |
Customized |
|
Suitable Label Size |
(L)20-200mm*(W) 20-150mm(backing paper width) |
|
Machine Dimensions |
About 2295*2000*2080mm (L*W*H) |
|
Machine Weight |
About 180kg |

Details

Control Panel
Touch screen control panel makes parameter setting more intuitive. The operation language is customizable as needed.

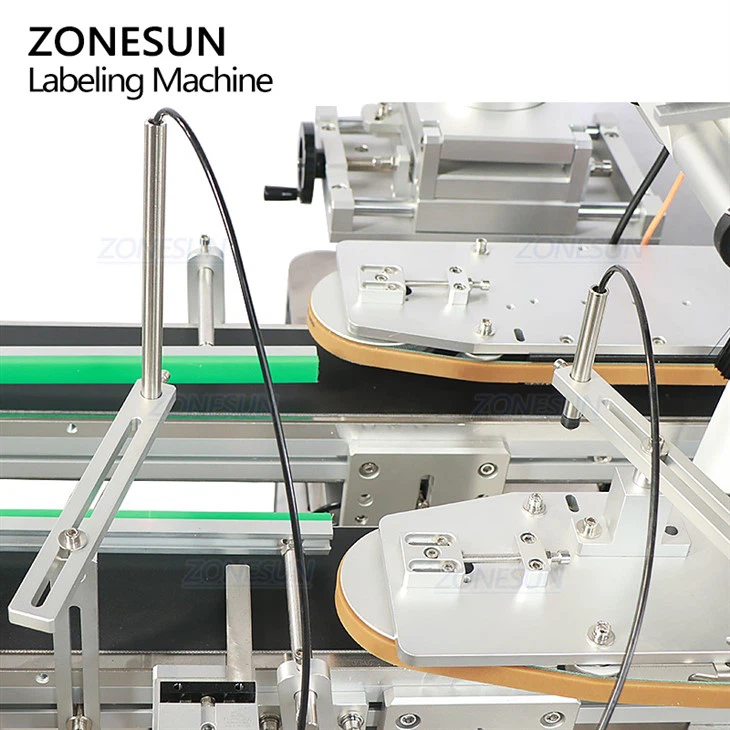

Sensor
This can detect the passing by boxes and send signal to control system, and labeling work will be automatically processed.

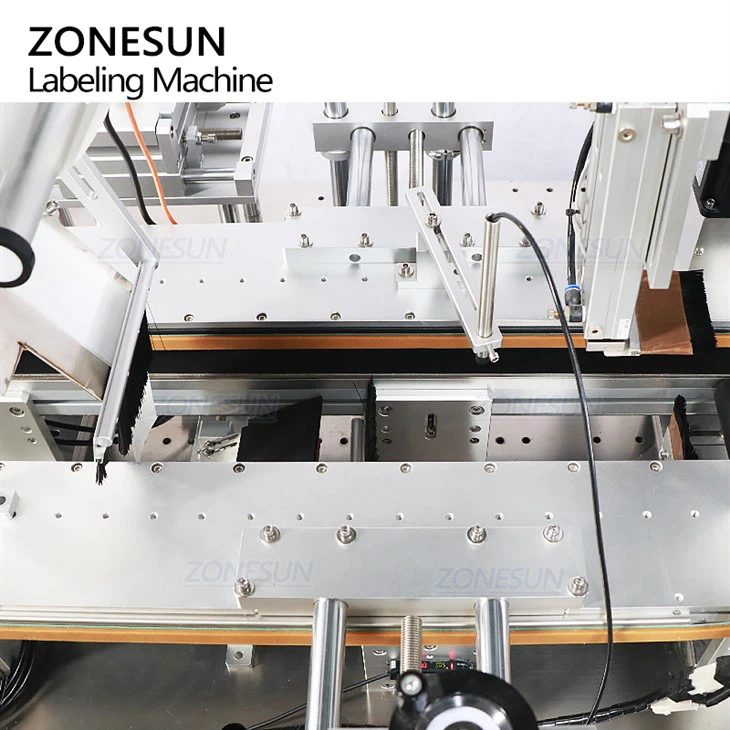

Labeling Structure

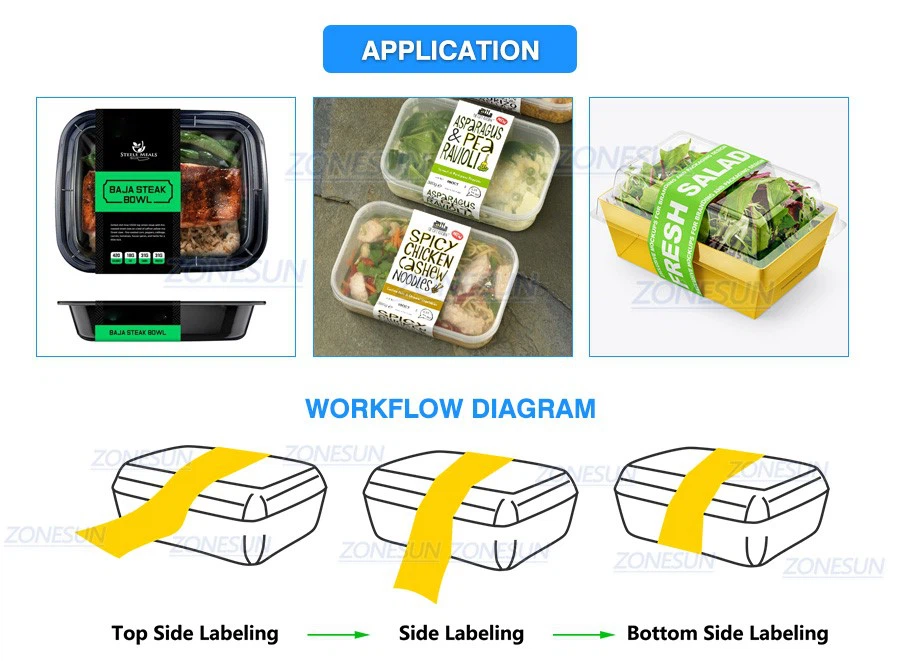

It is customized according to box specification. The machine suits for four sides tamper evident labeling of plastic boxes.

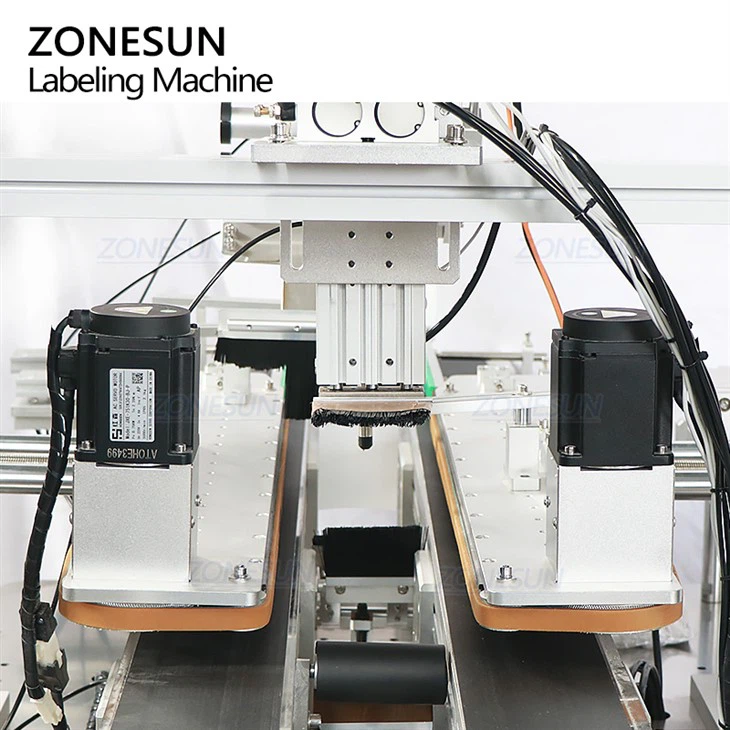

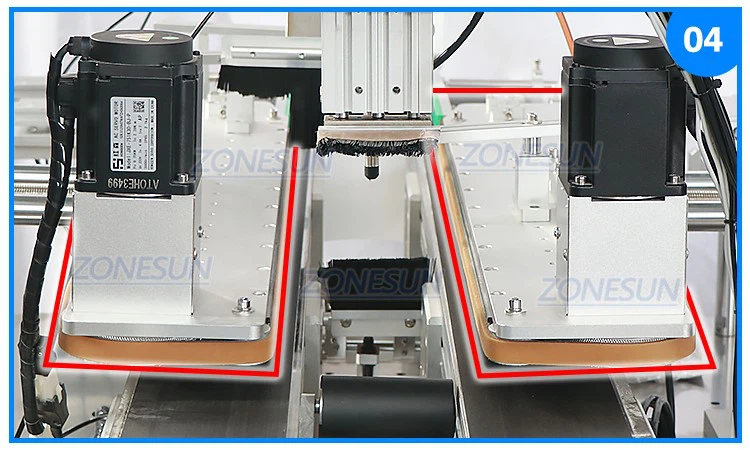

Clamping Conveyor
This is designed for clamping the boxes during labeling work and transporting them, which ensures labeling accuracy.

Collecting Tray
Using the tray for collecting finished products, it makes next production process more smooth.
