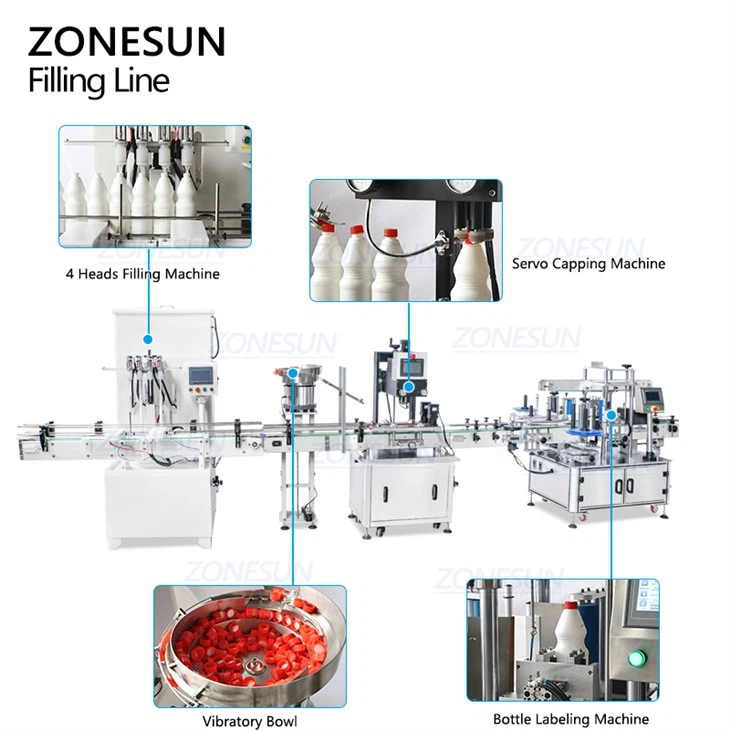

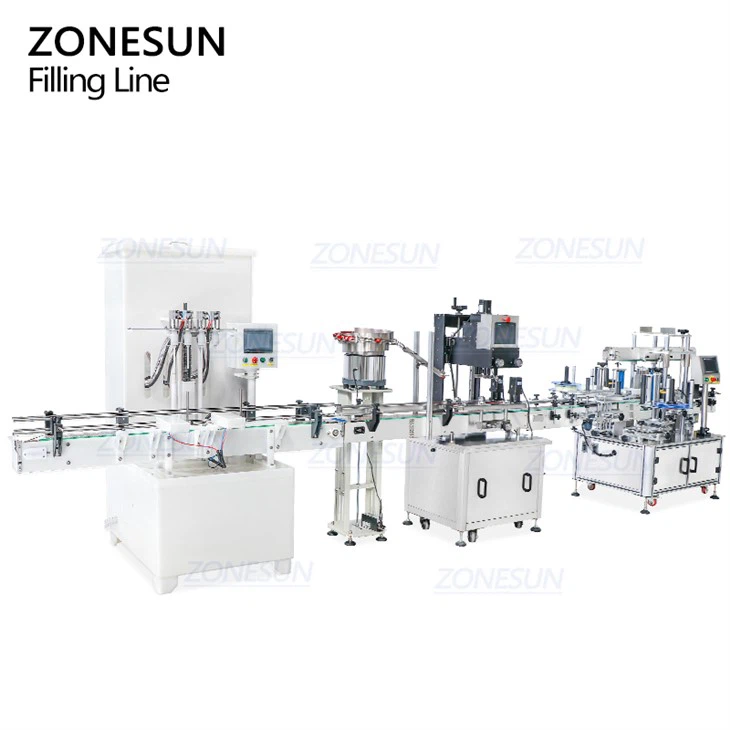

Automatic Pesticide Filling Capping Labeling Machine
·Automatic 4 Heads Pesticide Filling Machine
·Automatic Pesticide Bottle Capping Machine With Vibratory Sorter
·Automatic Pesticide Bottle Labeling Machine
This production line is designed for packing corrosive liquid, such as pesticide, acid, toilet cleaner, disinfectants, etc. It has functions of filling, cap feeding, capping and labeling. The machine can be used for single or double sides labeling for round and square containers. This automatic pesticide filling capping labeling machine can also work with bottle washers and turntables to realize automatic production. Please contact us if you need it.
Hot Tags: automatic pesticide filling capping labeling machine, China automatic pesticide filling capping labeling machine manufacturers, suppliers, factory, popcorn filling machine, water packet packing machine, mayonnaise filling machine, automatic paste filling machine, Monoblock Filling Machine, Face Moisturizer Filling Capping Labeling Machine
>4 Heads Filling Machine
|
Machine model |
ZS-YTCR4A |
|
Voltage |
110/220V 50-60HZ 550W |
|
Air pressure |
0.4-0.7MPa |
|
Suitable bottle diameter |
φ60mm--φ120mm |
|
Suitable bottle height |
60mm--300mm |
|
Hopper size |
About 90L |
|
Filling range |
100ml--3000ml |
|
Filling speed |
200-2500 BPH (based on filling volume) |
|
Machine dimension |
About 2000mm*1300mm*1900mm |
|
Machine weight |
About 200kg |
>Vibratory Bowl
|
Machine Power |
110/220V 50-60HZ |
|
Material |
Stainless Steel |
|
Suitable Caps Diameter |
Customized |
|
Working Speed |
Customized |
|
Machine Size |
Customized |
>Servo Capping Machine
|
Machine model |
ZS-XG440S |
|
Voltage |
110/220V 50-60HZ |
|
Machine power |
About 2.8KW |
|
Suitable bottle size |
H=50-300mm φ=30-120mm |
|
Suitable cap size |
φ=20-60mm |
|
Working speed |
About 30-100 bottles/min |
|
Machine size |
About 2000*750*1650mm |
|
Machine weight |
About 300kg |
|
Package size |
About 2070*830*1730mm |
|
Package weight |
About 321kg |
>Bottle Labeling Machine
|
Machine Model |
ZS-TB300Z |
|
Machine Power |
110/220V 2500W |
|
Working Speed |
30-150 bottles/min(based on bottle size) |
|
Labeling Accuracy |
±1mm |
|
Suitable Labeling Object |
30-300mm(L)*30-100mm(W)*50-350mm(H) |
|
Suitable Label Size |
15-300mm(L)*15-150mm(W) |
|
Label Roll OD |
Φ280mm |
|
Label Roll ID |
Φ76mm |
|
Machine Size |
About 2710*1450*1540mm(L*W*H) |
|
Package Size |
About 1900*970*1690mm |
Details
Touch Screen Control Panel
This automatic pesticide filling capping labeling machine is equipped with touch screen control panel, which shows machine working data and production status in real time, simplifying production process. Different kinds of operation language can be customized as production need.
Anti-dripping Filling Nozzle
The quantity of filling nozzles can be customized as production need. Anti-corrosion filling nozzles can ensure there is no dripping during filling, improving filling accuracy.

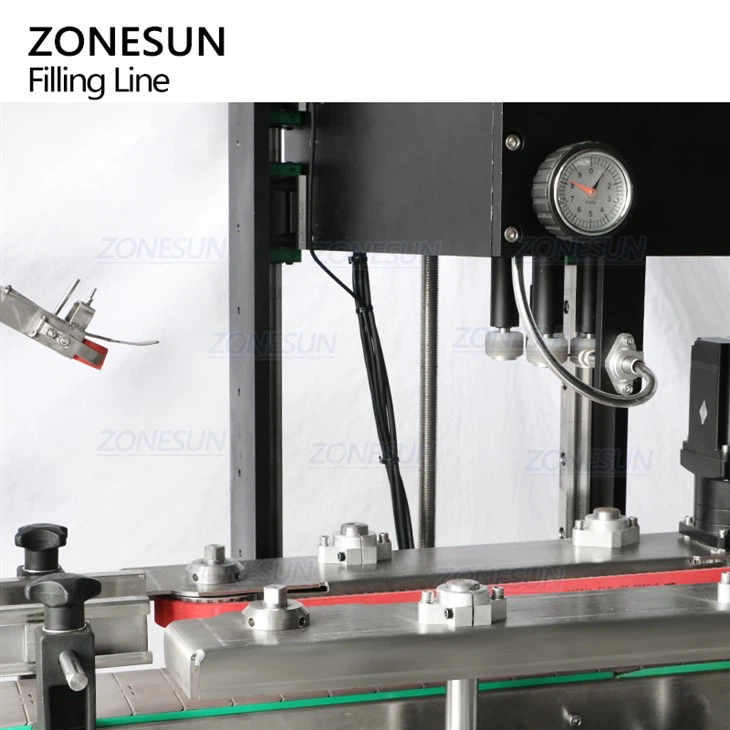

Capping Structure
The capping work is controlled by servo motor, the capping torsion can be controlled more accurately to ensure the capping efficiency. Capping structure is made of four rubber wheels, which can accommodate a range of bottle sizes and shapes.
Vibratory Bowl Sorter
Vibratory bowl sorters can handle a large volume of caps at high speeds, ensuring a continuous supply to next capping processes. This increases the overall efficiency of the production line.

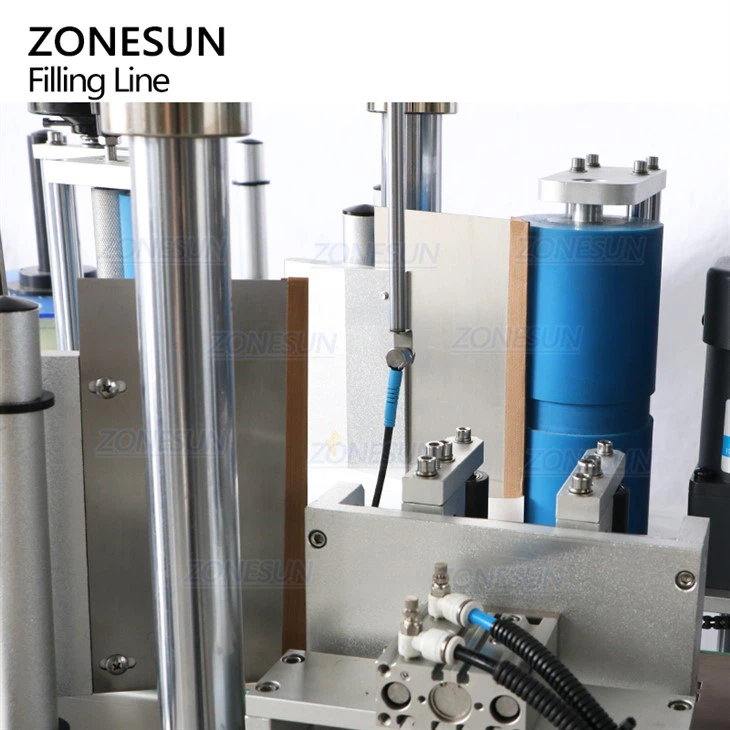

Labeling Structure
This is the dual use labeling machine, which is good for labeling stickers on flat bottles and round bottles. Each labeling structure can be controlled separately. Operator can choose the suitable one when labeling different kinds of products. The label roller can be customized according to bottle shape and improves labeling accuracy.
Chain Conveyor
The length and width of chain conveyor can be customized according to production need. It also has larger weight capacity. The chain conveyor can transport finished product stably and smoothly.
